T55

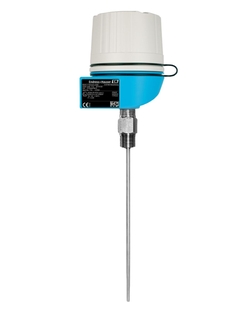

Explosion proof TC thermometer, US style

T55
Explosion proof TC thermometer, US style ©Endress+Hauser

Safe monitoring of process temperatures in challenging applications e. g. in the Oil & Gas industry

The high modular thermometer is used for several applications with harsh environments, e.g. in Power Plants, Refineries or in the Chemical or Petrochemical industry. The robust device is designed for use within an existing thermowell. With different head transmitter it's a complete unit ready for use with enhanced measurement accuracy and reliability.

Schnellauswahl

Wählen Sie unter den vorgeschlagenen Optionen aus
  • <%label%>
  • <%feature%>
  • Process Connection
  • <%message%>

oder

Individuelle Konfiguration

Wählen Sie unter allen möglichen Optionen aus
  • Vorteile

    • FM/CSA XP Class I, Div. 1 approved temperature assemblies for maximum safety

    • One source shopping for temperature measurement solutions. World class transmitter with integrated sensor offering for heavy process industry applications

    • Remove and install...

  • Anwendungsgebiet

    The sensor assembly can be used in process industries such as:

    • Chemicals

    • Petrochemical

    • Refineries

    • Offshore Platforms

Funktionen und Spezifikationen

Zurück

Details

  • Messprinzip

    Thermoelement

  • Merkmal / Anwendung

    amerikanische Bauart

    modulares Thermometer

    für heavy duty Anwendungen

    mit Verlängerung

    zum Einbau in Schutzrohr

  • Schutzrohr

    zum Einbau in Schutzrohr

  • Messeinsatz

    mineralisoliert (MI), biegsam

  • Außendurchmesser Schutzrohr / Messeinsatz

    1/4'' (6,35 mm)

    3/8'' (9,53 mm)

  • Max. Eintauchlänge auf Anfrage

    bis 100" (2.540 mm)

    andere auf Anfrage

  • Werkstoff Schutzrohr

    Mantelleitung

    1.4401 (316)

    Alloy 600 (2.4816)

  • Optionale Beschichtung

    nicht anwendbar

  • Prozessanschluss

    Thermowell connection:

    Außen-Gewinde:

    NPT1/2"

  • Form der Spitze

    gerade

  • Oberflächengenauigkeit Ra

    not defined

  • Arbeitsbereich

    Typ T:

    -270 °C ...370 °C

    (-454 °F ...698 °F)

    Typ J:

    -210 °C ...720 °C

    (-346 °F ...1.328 °F)

    Typ E:

    -270 °C ...820 °C

    (-454 °F ...1.508 °F)

    Typ K:

    -270 °C ...1.150 °C

    (-454 °F ...2.102 °F)

    Typ N:

    -270 °C ...1.150 °C

    (-454 °F ...2.102 °F)

  • Max. Prozessdruck (statisch)

    nicht anwendbar

  • Genauigkeit

    Standard gem. ASTM E-230

    Special gem. ASTM E-230

  • Ansprechzeit

    63% rt = 1 s

  • Aufnahme Kopftransmitter

    ja (4 … 20 mA; HART; PROFIBUS PA; FOUNDATION FIELDBUS)

  • Ex - Zulassungen

    FM XP

    CSA XP

    FM/CSA XP

    CSA GP

  • Zertifikate

    SIL (nur Transmitter)

Dokumente / Handbücher / Software

Zubehör / Ersatzteile

Nr
Bestellnummer
Specification
  • B
  • A
    • Nr A Bestellnummer TU221-

      TC-Insert TU221, Approved, U.S.Style

      Spare part. Thermocouple Insert spring loaded. Flame path Nipple. Thermocouple comply with EMF tables of ASTM E-230 and IEC60584, color codes per ASTM E-230

  • B
    • Nr B Bestellnummer TU401-

      Enclosure TU401, U.S.Style

    • Nr B Bestellnummer TA30H-

      Terminal Head TA30H

      Retainer for terminal block or head transmitter + optional display. Design: explosion proof. Cover: screwed, optional window. Material: aluminium. Coating: polyester powder-coating. Colour: body blue, cover grey. Ambient temp.: -50 150 oC (housing). Protection: IP66/68, NEMA 4X (housing). Protection Ex d/XP: IP66/67 (housing).

    • Bestellnummer TMT142E-
    • Bestellnummer TMT162E-
    • Bestellnummer TMT182-

      iTEMP TMT182, Head Transmitter HART

      Product being phased out, limited availability. Temperature transmitter, Protocol HART. Application: RTD, TC, Ohm, mV. 2-wire 4-20mA, galvanicisolation. Fault reaction: NAMUR NE 43. Mounting: head form B, DIN EN50446. UL listed.

    • Bestellnummer TMT82-

      iTEMP TMT82, Transmitter HART

      2-wire temperature transmitter. Dual universal sensor input. Galvanic isolation 2kV (input/output). Application: RTD, TC, Ohm and mV. ::Highly reliable due to drift detection and sensor back up. ::Optional also for safety critical applications by means of SIL 2/3 acc. to IEC61508.

    • Bestellnummer TMT84-

      iTEMP TMT84, Transmitter PA

      Dual sensor input. Advanced diagnostics:sensor monitoring. PROFIBUS PA Profile 3.02. Galvanic isolation 2kV. Application: RTD, TC, Ohm, mV. Current consumption: 11 mA. Mounting: head form B, DIN EN50446. Factory setup: CH1: Pt100, 3-wire, oC. CH2: inactive. Differing configuration optional selectable.

    • Bestellnummer TMT85-

      iTEMP TMT85, Transmitter FF

      Dual sensor input. Advanced diagnostics: sensor monitoring. FOUNDATION Fieldbus protocol Galvanic isolation 2 kV. Application: RTC, TC, Ohm, mV. Current consumption: 11 mA. Mounting: head form B, DIN EN50446. Factory setup: CH1: Pt100, 3-wire, oC. CH2: inactive. Differing configuration optional selectable.

    • Bestellnummer TID10-

      Display for head transmitter TID10

      to plug on. Dot-Matrix measured value display. 12 DIP-switches buttom side. Settings: FF: Simulation, Write Lock. PA: Bus address, Write Lock. Compatible: TMT85, TMT84, TMT82.

    • Bestellnummer TXU10-

      Configuration kit TXU10-

      for PC-programmable devices. set-up programme+interface cable for PC with USB-Port.

    • Bestellnummer FXA195-

      Commubox FXA195

      Modem to connect HART field devices to a computer via USB. Commissioning of field devices with software tool. :: To connect to a intrinsically safe signal circuit. :: SIL2, IEC61508.

    • Bestellnummer READWIN-

      Readwin 2000 Operation + Read. software

    • Bestellnummer TMT181-

      iTEMP TMT181, Head Transmitter PCP

      Product being phased out, limited availability. Temperature transmitter,PC-programmable. Application: RTD, TC, Ohm, mV. 2-wire 4-20mA, galvanic isolation. Fault reaction: NAMUR NE 43. Mounting: head form B, DIN EN50446. UL listed.
