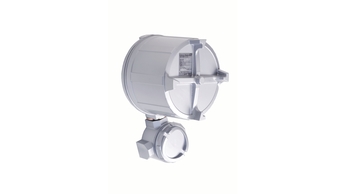

AT500
Dieses Produkt ist nicht mehr erhältlich.
Bitte sehen Sie sich die neue Generation unter "Vorgänger/Nachfolger" an, oder wenden Sie sich an Ihre lokale Endress+Hauser Niederlassung.
Dokumente / Handbücher / Software
-
AT5000-Technical Information
Tank Gauging
Technische Information (TI) -
Analog Transmitter AT500 - Technical Information
AT500 analog transmitter is used in combination with the
LT11/12/14/16 float tank gauge.
When the float tank gauge indicator reaches the alarm setting point,
AT500 transmitter outputs an alarm contact signal by operating a micro
switch.
AT500 is a limit contact unit that has six contacts for controlling the
level
of the tank contents.
The flame proof enclosure allows installation in hazardous areas, such
as in the petrochemical industry.Technische Information (TI) -
Analog Transmitter AT5000 AT500 - Operating Instructions
AT500 analog transmitter is used in combination with LT11/12/14/16 float
tank gauge.
When the level gauge indicator reaches alarmsetting point, AT500
transmitter outputs an alarm contact signal by operating a micro switch.
AT500 is a limit contact unit that has six contacts for controlling the
level
of the tank contentsBetriebsanleitung (BA) -
Tank Gauging
Система коммерческого и оперативного учета продуктов
в резервуарных парках.Kompetenzbroschüre (CP)07/15Russisch
Zubehör / Ersatzteile
-
-
Nr 11 Bestellnummer 017880-5025
O-ring, Large terminal box, AT5 body,CR
Size: D120mm, d3.5mm. Material: CR. Part: terminal box, large. Usage: AT1/500, B3-11, DRM9700, DU/R, MPC2, TGM5, TMD1.
-
Nr 11 Bestellnummer 017880-5026
O-ring, terminal box, small, CR
Size: D100mm, d3mm. Material: CR (Chloroprene Rubber). Part: terminal box, small. Usage: AT1/AT500, DRM9700, DU, NRR261/NRR263, NMT539 Converter, TGM5.
-
Nr 11 Bestellnummer 017880-5027
O-ring, El-compartment, large
Size: D196mm, d7mm. Material: CR (Chloroprene Rubber). Part: main body cover, AT1/AT500, B3-11. Usage: AT1, AT500, B3-11.
-
Nr 11 Bestellnummer 017871-1231
O-ring, LT/transmitter coupling
Size: D60mm, d3.5m. Material: CR (Chloroprene Rubber). Part: LT-coupling. Usage: AT1/AT500, DU, DUR, TMD1.
-
-
-
Nr 21 Bestellnummer 017860-6324
Cover, terminal box, large
Large terminal box cover. Color: silver. Material: aluminium casting. Usage: AT1/AT500, DUR, MPC, TMD1, B3-11.
-
Nr 21 Bestellnummer 017860-6326
Large-short cover, main body
Short main mody cover. Color: silver. Material: aluminium casting. Usage: AT1/AT500, B3-11.
-
-
-
Nr 31 Bestellnummer 017871-1230
-
-
-
Nr 75 Bestellnummer 017871-1233
Coupling, transmitter, LT11/LT12
ADC, with nut, M4, washer, O-ring. Stud,M10x37/17x10L,nut,M10, 4x washer. Usage: AT1, AT500.
-
Nr 75 Bestellnummer 017871-1232
Coupling, male,for gauge head, MP/HP
Gauge head side,male pin type,Alu plate without female coupling for transmitter with washer M4 SUS304,nut M4 SUS304. Usage: LT5, LT14/LT16, LT34/LT36.
-
-
