TH11

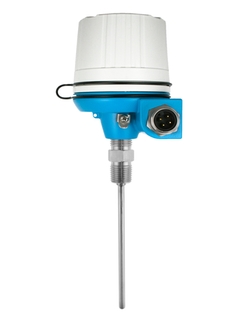

Modular RTD thermometer, US style
Best in class temperature measurement technology for general applications
The high modular thermometer is used for several applications in almost all industries. Examples are heat exchangers, dryers, process reactors , reactor stations, etc. With different head transmitter it's a complete unit ready for use with enhanced measurement accuracy and reliability. It also enables very fast response times, due to direct contact measurement without thermowell. A variety of process connections and dimensions offer flexible application possibilities.
-
Perfekt für Basisanwendungen
- Einfachste Auswahl, Installation und Bedienung
Leistungsumfang
Einfache Auswahl
-
Optimierter Leistungsumfang für Standardanwendungen
- Einfache Auswahl, Installation und Bedienung
Leistungsumfang
Einfache Auswahl
-
Maximaler Leistungsumfang für breiten Einsatzbereich
- Einfache Installation und Bedienung
Leistungsumfang
Einfache Auswahl
-
Höchster Nutzen durch Spezialisierung auf Anwendung
- Einfache Installation und Bedienung
Leistungsumfang
Einfache Auswahl
Variabel
FLEX Auswahl | Leistungsumfang | Einfache Auswahl |
---|---|---|
Fundamental Auswahl Perfekt für Basisanwendungen |
Leistungsumfang
|
Einfache Auswahl
|
Lean Auswahl Optimierter Leistungsumfang für Standardanwendungen |
Leistungsumfang
|
Einfache Auswahl
|
Extended Auswahl Maximierte Effizienz in Standardanwendungen im Life Cycle |
Leistungsumfang
|
Einfache Auswahl
|
Xpert Auswahl Herausragende Leistung für besondere Anwendungen |
Leistungsumfang
|
Einfache Auswahl
Variabel |
-
Spezifikation im Überblick
-
Genauigkeit
Klasse A nach IEC 60751
Klasse B nach IEC 60751 -
Ansprechzeit
63% rt = 2,0 s
-
Max. Prozessdruck (statisch)
bei 20 °C: 250 bar (3.626 psi)
Abhängig von der Konfiguration -
Arbeitsbereich
PT 100:
-200 °C ...600 °C
-328 °F ...1.112 °F) -
Max. Eintauchlänge auf Anfrage
bis 96" (2439 mm)
andere auf Anfrage
-
Schnellauswahl
Individuelle Konfiguration
-
Vorteile
High flexibility due to modular assembly with standard terminal heads and customized immersion length
One source shopping for temperature measurement solutions. World class transmitter with integrated sensor offering for heavy process industry...
-
Anwendungsgebiet
The TH11 temperature sensors are RTD's designed for use in the process industry or factory automation type of environment. They are made up of a measurement probe with a RTD, insulation and sheath.
Among other applications the sensors can be used on:
Heat...
Dokumente / Handbücher / Software
-
Technical Information for TH11 and TH12
General purpose RTD with connection lead or conductor extension lead
wires for process and laboratory applicationsTechnische Information (TI) -
TH11 and TH12
General purpose RTD assemblies, TH11 and TH12
Technische Information (TI) -
Mesure de température
Capteurs et transmetteurs pour les industries de process
Arbeitsgebiete (FA)12/19fr -
温度测量
过程工业用温度传感器和温度变送器
Arbeitsgebiete (FA)12/14Chinesisch -
Pomiar temperatury
Czujniki i przetworniki pomiarowe
do kontroli przemysłowych procesów technologicznychArbeitsgebiete (FA)10/14Polnisch -
Измерение температуры
Датчики температуры и преобразователи для любых
отраслей промышленности.Arbeitsgebiete (FA)06/13Russisch -
Catálogo medición temperatura
Termómetros y transmisores para la industria de proceso
Arbeitsgebiete (FA)04/18Spanisch -
Misura della temperatura
Termometri e trasmettitori
per l'industria di processoArbeitsgebiete (FA)04/18Italienisch -
Sıcaklık Ölçümü
Proses endüstrisi için termometreler ve transmiterler
Arbeitsgebiete (FA)03/13Türkisch -
Field of activities FA Temperature measurement
Thermometers and transmitters for the process industry
Arbeitsgebiete (FA)03/13Englisch -
Temperaturmesstechnik
Thermometer und Transmitter für die Prozessindustrie
Arbeitsgebiete (FA)02/20Deutsch -
Temperature measurement
Thermometers and transmitters for the process industry
Arbeitsgebiete (FA)02/20Englisch -
Измерение температуры
Ключевые особенности термометров Endress+Hauser для нефтегазовой отрасли
Kompetenzbroschüre (CP)08/11Russisch -
Инженерные решения по термометрии
Специальные решения по термометрии для химической и
нефтеперерабатывающей промышленностиKompetenzbroschüre (CP)04/10Russisch -
Process RTD Direct contact
Produktwurzel: TH11-
Erklärungsnummer: HE_00498_01.17
Hersteller Spezifikation: RoHSHerstellererklärungEnglisch -
RTD-thermometer, Process TC Heavy duty, Process TC General purpose, Process TC Explosion proof, Process TC direct in contact, Process TC Direct contact, Process RTD Hygienic, Process RTD Heavy duty, Process RTD General purpose, Process RTD Explosion proof, Process RTD direct in contact, Process RTD Direct contact, Plugs RTD direct contact, Magphant, Low cost RTD General purpose, Industrial Modular Thermometer
Produktwurzel: TR15-, TR13-, TR12-, TR11-, TR10-, TMT470L-, TMT162R-, TMT162C-, TMT142R-, TMT142C-, TMR35L-, TMR35-, TMR31L-, TMR31-, TM411-, TM401-, TH56-, TH55-, TH54-, TH53-, TH52-, TH51-, TR24-, TTR35-, TTR31-, TST90-, TST602-, TST487-, TST434-, TST41N-, TST414-, TST410-, TST40N-, TST310-, TST187-, TSM487-, TSM187-, TSC310-, TR88-, TR66-, TR65-, TR63-, TR62-, TR61-, TR25-, TH27-, T55-, T54-, T53-, T15-, T14-, T13-, OTR96-, OTR95-, OTR94-, OTR93-, OTR92-, OTR91-, OTR90-, OTR35-, OTR31-, MLTTS01-, MLTTS00-, GPTL-, DTT35L-, DTT35-, DTT31L-, DTT31-, TAF11-, TH18-, TH17-, TH15-, TH14-, TH13-, TH12-, TH11-, TEC420-, TC88-, TC66-, TC65-, TC63-, TC62-, TC61-, TC15-, TC13-, TC12-, TC10-, TAF16-, TAF12T-, TAF12S-, TAF12D-
Erklärungsnummer: EC_00568_01.17EU ErklärungDeutsch , Englisch , fr
Zubehör / Ersatzteile
-
-
Bestellnummer 52028179
Dichtung 67,5x2,9x1,5 VMQ/PTFE, 5 Stück
Profildichtung Deckel. Verwendung: Gehäuse F15 Edelstahl.
-
Bestellnummer 60017971
Display LC für TA20J
-
Bestellnummer 71043745
Gehäusefilter Kunststoff F15, 3 Stück
Bestehend aus: Belüftungsstopfen Kunststoff, Druckausgleichsfilter, O-Ring. Verwendung: Gehäuse F15. Nicht für Ex.
-
Bestellnummer 71386275
-
-
-
Nr A Bestellnummer TMT142X-HI
Gehäusedeckel blind Alu + Dichtung
-
Nr A Bestellnummer TMT142X-HL
Gehäusedeckel kpl. für Display, Alu + Dichtung
-
-
-
Bestellnummer TMT162X-DA
Display HART5 + Halterung + Verdreh- sicherung
-
Bestellnummer TMT162X-DB
Display PA/FF + Halterung + Verdreh- sicherung
-
Bestellnummer TMT162X-DC
Displayhalterung + Verdrehsicherung
-
-
-
Nr A Bestellnummer TMT162X-HE
Gehäusedeckel blind, T17, 316L
-
Nr A Bestellnummer TMT162X-HF
Gehäusedeckel kpl. für Display, T17,316L Polycarbonat
-
Nr A Bestellnummer TMT162X-HI
Gehäusedeckel blind Alu + Dichtung
-
Nr A Bestellnummer TMT162X-HL
Gehäusedeckel kpl. für Display Alu + Dichtung
-
-
-
Bestellnummer TMT142X-DA
Display HART5 + Halterung + Verdrehsicherung
-
Bestellnummer 71044062
Beistellset kpl. TMT8x/7x USA(amerik.)
2x Schraube,1x Dichtung CDI-Stecker
-
Bestellnummer TMT162A-MA
Mounting bracket,North American region standard model,stainl.steel wall/tube 2"
-
Bestellnummer TMT162A-MB
Cable gland NPT1/2, North American region standard model,2xD0.5 cables
-
Bestellnummer TMT162A-MD
Montagehalter Rohr 2"/V4A
-
Bestellnummer 51004387
Adapter NPT1/2/M20x1,5 Kabeldurchführ.
-
Bestellnummer 51006845
Kabelverschraubung NPT1/2 D4,5-8,5 IP68
-
Bestellnummer 51007995
Montagehalter Rohr 1,5-3" Edelstahl 316L
-
Bestellnummer 71310423
-
-
-
Nr A Bestellnummer TU401-
Enclosure TU401, U.S.Style
-
-
-
Bestellnummer TU301-
Compression Fitting, threaded TU301
-
Bestellnummer TXU10-
Configuration Kit TXU10
for PC-programmable devices. set-up programme+interface cable for PC with USB-Port.
-
Bestellnummer READWIN-
Readwin 2000 Operation + Read. software
-
Bestellnummer FXA195-
Commubox FXA195
Modem to connect HART field devices to a computer via USB. Commissioning of field devices with software tool. :: To connect to a intrinsically safe signal circuit. :: SIL2, IEC61508.
-
Bestellnummer TMT180-
iTEMP TMT180, Head Transmitter Pt100
Temperature transmitter,PC-programable. Application: RTD. 2-wire 4-20mA. Fault reaction: NAMUR NE 43. Mounting: head form B, DIN EN50446. UL listed.
-
Bestellnummer TMT181-
iTEMP TMT181, Head Transmitter PCP
Product being phased out, limited availability. Temperature transmitter,PC-programmable. Application: RTD, TC, Ohm, mV. 2-wire 4-20mA, galvanic isolation. Fault reaction: NAMUR NE 43. Mounting: head form B, DIN EN50446. UL listed.
-
Bestellnummer XPT0004-
-
-
-
Nr A Bestellnummer TA30H-
Terminal Head TA30H
Retainer for terminal block or head transmitter + optional display. Design: explosion proof. Cover: screwed, optional window. Material: aluminium. Coating: polyester powder-coating. Colour: body blue, cover grey. Ambient temp.: -50 150 oC (housing). Protection: IP66/68, NEMA 4X (housing). Protection Ex d/XP: IP66/67 (housing).
-
Nr A Bestellnummer TA30R-
Terminal Head TA30R
Retainer for terminal block or head transmitter + optional display. Cover: screwed, optional window. Material: Stainless Steel 316L. Colour: Steel (no coating). Ambient Temp.: -50...85/130 oC (display/standard). Protection: IP66/68, NEMA4X; IP69K (housing). :: easy wiring through best accessibility. :: compact desing and low weight.
-
-
-
Bestellnummer TMT142E-
Electronic TMT142E
-
Bestellnummer TMT162E-
Electronic TMT162
-
-
-
Nr A Bestellnummer TMT162G-
Housing TMT162
-
Nr A Bestellnummer TMT142G-
Housing TMT142G
-
-
-
Bestellnummer TMT71-
iTEMP TMT71, Transmitter 4-20mA
2-wire temperature transmitter. Single universal sensor input. Galvanic isolation 2kV (input/output). Application: RTD, TC, Ohm and mV. Factory setup w/o additional specification:Pt100, 4-wire, 0...+100oC.
-
Bestellnummer TMT72-
iTEMP TMT72, Transmitter HART
2-wire temperature transmitter. Single universal sensor input. Galvanic isolation 2kV (input/output). Application: RTD, TC, Ohm and mV. Factory setup w/o additional specification:Pt100, 4-wire, 0...+100oC.
-
Bestellnummer TMT82-
iTEMP TMT82, Transmitter HART
2-wire temperature transmitter. Dual universal sensor input. Galvanic isolation 2kV (input/output). Application: RTD, TC, Ohm and mV. ::Highly reliable due to drift detection and sensor back up. ::Optional also for safety critical applications by means of SIL 2/3 acc. to IEC61508.
-
Bestellnummer TMT84-
iTEMP TMT84, Transmitter PA
Dual sensor input. Advanced diagnostics:sensor monitoring. PROFIBUS PA Profile 3.02. Galvanic isolation 2kV. Application: RTD, TC, Ohm, mV. Current consumption: 11 mA. Mounting: head form B, DIN EN50446. Factory setup: CH1: Pt100, 3-wire, oC. CH2: inactive. Differing configuration optional selectable.
-
Bestellnummer TID10-
Display Unit Head Transmitter
to plug on. Dot-Matrix measured value display. 12 DIP-switches buttom side. Settings: FF: Simulation, Write Lock. PA: Bus address, Write Lock. Compatible: TMT85, TMT84, TMT82.
-
Bestellnummer TMT85-
iTEMP TMT85, Transmitter FF
Dual sensor input. Advanced diagnostics: sensor monitoring. FOUNDATION Fieldbus protocol Galvanic isolation 2 kV. Application: RTC, TC, Ohm, mV. Current consumption: 11 mA. Mounting: head form B, DIN EN50446. Factory setup: CH1: Pt100, 3-wire, oC. CH2: inactive. Differing configuration optional selectable.
-
Bestellnummer TMT182-
iTEMP TMT182, Head Transmitter HART
Product being phased out, limited availability. Temperature transmitter, Protocol HART. Application: RTD, TC, Ohm, mV. 2-wire 4-20mA, galvanicisolation. Fault reaction: NAMUR NE 43. Mounting: head form B, DIN EN50446. UL listed.
-
