TH55

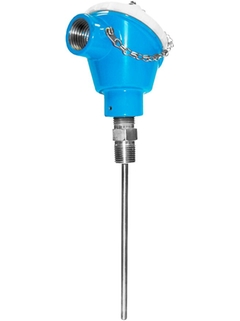

Modular TC thermometer, US style
Comprehensive and common temperature measurement technology for almost all branches of industry
The high modular thermometer is used for several applications with harsh environments, e.g. in power plants, refineries or in the chemical or petrochemical industry. The robust device is designed for use within an existing thermowell. With different head transmitter it's a complete unit ready for use with enhanced measurement accuracy and reliability.
-
Perfekt für Basisanwendungen
- Einfachste Auswahl, Installation und Bedienung
Leistungsumfang
Einfache Auswahl
-
Optimierter Leistungsumfang für Standardanwendungen
- Einfache Auswahl, Installation und Bedienung
Leistungsumfang
Einfache Auswahl
-
Maximaler Leistungsumfang für breiten Einsatzbereich
- Einfache Installation und Bedienung
Leistungsumfang
Einfache Auswahl
-
Höchster Nutzen durch Spezialisierung auf Anwendung
- Einfache Installation und Bedienung
Leistungsumfang
Einfache Auswahl
Variabel
FLEX Auswahl | Leistungsumfang | Einfache Auswahl |
---|---|---|
Fundamental Auswahl Perfekt für Basisanwendungen |
Leistungsumfang
|
Einfache Auswahl
|
Lean Auswahl Optimierter Leistungsumfang für Standardanwendungen |
Leistungsumfang
|
Einfache Auswahl
|
Extended Auswahl Maximierte Effizienz in Standardanwendungen im Life Cycle |
Leistungsumfang
|
Einfache Auswahl
|
Xpert Auswahl Herausragende Leistung für besondere Anwendungen |
Leistungsumfang
|
Einfache Auswahl
Variabel |
-
Spezifikation im Überblick
-
Genauigkeit
Klasse 1 nach IEC 60584
Klasse 2 nach IEC 60584 -
Ansprechzeit
63% rt = 1,3 s
-
Max. Prozessdruck (statisch)
bei 20 °C: 100 bar (1.450 psi)
-
Arbeitsbereich
Typ T:
-270 °C ...370 °C
(-454 °F ...698 °F)
Typ J:
-210 °C ...720 °C
(-346 °F ...1.328 °F)
Typ E:
-270 °C ...820 °C
(-454 °F ...1.508 °F)
Typ K:
-270 °C ...1.150 °C
(-454 °F ...2.102 °F)
Typ N:
-270 °C ... 1.150 °C
(-454 °F ...2.102 °F) -
Max. Eintauchlänge auf Anfrage
bis 30" (762 mm)
andere auf Anfrage
-
Schnellauswahl
Individuelle Konfiguration
-
Vorteile
One source shopping for temperature measurement solutions. World class transmitter with integrated sensor offering for heavy process industry applications.
Remove and install straight out of the box!
Improved galvanic isolation on most devices (2 kV).
...
-
Anwendungsgebiet
The TH55 temperature sensors are thermocouple assemblies, designed for use in all types of process industries, including heavy industries, due to their rugged design. They are made up of a magnesium oxide insulated thermocouple as a measurement probe...
Dokumente / Handbücher / Software
-
TH53, TH54 and TH55
Thermocouples TH53, TH54 and TH55 assemblies
in thermoewells with spring loaded insert
and terminal heads for process industryTechnische Information (TI) -
TH55
Compact Instructions
Thermocouple assembly
Kurzanleitung (KA)02/13Englisch -
Control Drawing CSA Intrinsically Safety, Nonincendive THxx, Txx Series,
TU111, TU121, TU211, TU221
Installation Notes for Hazardous Locations
Zertifikat FM/CSA (ZD) -
Mesure de température
Capteurs et transmetteurs pour les industries de process
Arbeitsgebiete (FA)12/19fr -
温度测量
过程工业用温度传感器和温度变送器
Arbeitsgebiete (FA)12/14Chinesisch -
Pomiar temperatury
Czujniki i przetworniki pomiarowe
do kontroli przemysłowych procesów technologicznychArbeitsgebiete (FA)10/14Polnisch -
Измерение температуры
Датчики температуры и преобразователи для любых
отраслей промышленности.Arbeitsgebiete (FA)06/13Russisch -
Catálogo medición temperatura
Termómetros y transmisores para la industria de proceso
Arbeitsgebiete (FA)04/18Spanisch -
Misura della temperatura
Termometri e trasmettitori
per l'industria di processoArbeitsgebiete (FA)04/18Italienisch -
Sıcaklık Ölçümü
Proses endüstrisi için termometreler ve transmiterler
Arbeitsgebiete (FA)03/13Türkisch -
Field of activities FA Temperature measurement
Thermometers and transmitters for the process industry
Arbeitsgebiete (FA)03/13Englisch -
Temperaturmesstechnik
Thermometer und Transmitter für die Prozessindustrie
Arbeitsgebiete (FA)02/20Deutsch -
Temperature measurement
Thermometers and transmitters for the process industry
Arbeitsgebiete (FA)02/20Englisch -
Измерение температуры
Ключевые особенности термометров Endress+Hauser для нефтегазовой отрасли
Kompetenzbroschüre (CP)08/11Russisch -
Инженерные решения по термометрии
Специальные решения по термометрии для химической и
нефтеперерабатывающей промышленностиKompetenzbroschüre (CP)04/10Russisch -
RTD-thermometer, Process TC Heavy duty, Process TC General purpose, Process TC Explosion proof, Process TC direct in contact, Process TC Direct contact, Process RTD Hygienic, Process RTD Heavy duty, Process RTD General purpose, Process RTD Explosion proof, Process RTD direct in contact, Process RTD Direct contact, Plugs RTD direct contact, Magphant, Low cost RTD General purpose, Industrial Modular Thermometer
Produktwurzel: TR15-, TR13-, TR12-, TR11-, TR10-, TMT470L-, TMT162R-, TMT162C-, TMT142R-, TMT142C-, TMR35L-, TMR35-, TMR31L-, TMR31-, TM411-, TM401-, TH56-, TH55-, TH54-, TH53-, TH52-, TH51-, TR24-, TTR35-, TTR31-, TST90-, TST602-, TST487-, TST434-, TST41N-, TST414-, TST410-, TST40N-, TST310-, TST187-, TSM487-, TSM187-, TSC310-, TR88-, TR66-, TR65-, TR63-, TR62-, TR61-, TR25-, TH27-, T55-, T54-, T53-, T15-, T14-, T13-, OTR96-, OTR95-, OTR94-, OTR93-, OTR92-, OTR91-, OTR90-, OTR35-, OTR31-, MLTTS01-, MLTTS00-, GPTL-, DTT35L-, DTT35-, DTT31L-, DTT31-, TAF11-, TH18-, TH17-, TH15-, TH14-, TH13-, TH12-, TH11-, TEC420-, TC88-, TC66-, TC65-, TC63-, TC62-, TC61-, TC15-, TC13-, TC12-, TC10-, TAF16-, TAF12T-, TAF12S-, TAF12D-
Erklärungsnummer: EC_00568_01.17EU ErklärungDeutsch , Englisch , fr -
TC Heavy duty, Process TC Heavy duty, Process TC Explosion proof, Process RTD Explosion proof, ACCESSORIES: TC INSERT, ACCESSORIES: RTD INSERT
Produktwurzel: TH55-, TH54-, TH53-, TH15-, TU111-, TU121-, TU211-, TU221-, TH14-, TH13-
Region/Land: USA
Zulassungsstelle: CSA
