TH51

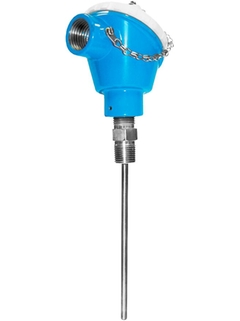

Modular TC thermometer, US style
Best in class temperature measurement technology for general applications
The high modular thermometer is used for several applications in almost all industries. Examples are heat exchangers, furnaces, dryers, process reactors, etc. With different head transmitter it's a complete unit ready for use with enhanced measurement accuracy and reliability. It also enables very fast response times, due to direct contact measurement without thermowell. A variety of process connections and dimensions offer flexible application possibilities.
-
Perfekt für Basisanwendungen
- Einfachste Auswahl, Installation und Bedienung
Leistungsumfang
Einfache Auswahl
-
Optimierter Leistungsumfang für Standardanwendungen
- Einfache Auswahl, Installation und Bedienung
Leistungsumfang
Einfache Auswahl
-
Maximaler Leistungsumfang für breiten Einsatzbereich
- Einfache Installation und Bedienung
Leistungsumfang
Einfache Auswahl
-
Höchster Nutzen durch Spezialisierung auf Anwendung
- Einfache Installation und Bedienung
Leistungsumfang
Einfache Auswahl
Variabel
FLEX Auswahl | Leistungsumfang | Einfache Auswahl |
---|---|---|
Fundamental Auswahl Perfekt für Basisanwendungen |
Leistungsumfang
|
Einfache Auswahl
|
Lean Auswahl Optimierter Leistungsumfang für Standardanwendungen |
Leistungsumfang
|
Einfache Auswahl
|
Extended Auswahl Maximierte Effizienz in Standardanwendungen im Life Cycle |
Leistungsumfang
|
Einfache Auswahl
|
Xpert Auswahl Herausragende Leistung für besondere Anwendungen |
Leistungsumfang
|
Einfache Auswahl
Variabel |
-
Spezifikation im Überblick
-
Genauigkeit
Standard gem. ASTM E-230
Special gem. ASTM E-230 -
Ansprechzeit
63% rt = 0.3 s
-
Max. Prozessdruck (statisch)
bei 20 °C: 250 bar (3.626 psi)
abhängig von der Konfiguration -
Arbeitsbereich
Typ T:
-270 °C ...370 °C
(-454 °F ...698 °F)
Typ J:
-210 °C ...720 °C
(-346 °F ...1.328 °F)
Typ E:
-270 °C ...820 °C
(-454 °F ...1.508 °F)
Typ K:
-270 °C ...1.150 °C
(-454 °F ...2.102 °F)
Typ N:
-270 °C ... 1.150 °C
(-454 °F ...2.102 °F) -
Max. Eintauchlänge auf Anfrage
bis 96" (2.438mm)
andere auf Anfrage
-
Schnellauswahl
Individuelle Konfiguration
-
Vorteile
One source shopping for temperature measurement solutions. World class transmitter with integrated sensor offering. Remove and install straight out of the box!
Improved galvanic isolation on most devices (2 kV)
Simplified model structure: Competitively...
-
Anwendungsgebiet
Magnesium oxide insulated thermocouples, commonly referred to as MgO thermocouples, are used in many process and laboratory applications. They have many desirable characteristics making thermocouples a good choice for general and special purpose...
Dokumente / Handbücher / Software
-
TH51, TH52 and TH56
General purpose thermocouple assemblies
Technische Information (TI) -
TH51
Compact Instructions
Thermocouple assembly
Kurzanleitung (KA)02/13Englisch -
Mesure de température
Capteurs et transmetteurs pour les industries de process
Arbeitsgebiete (FA)12/19fr -
温度测量
过程工业用温度传感器和温度变送器
Arbeitsgebiete (FA)12/14Chinesisch -
Pomiar temperatury
Czujniki i przetworniki pomiarowe
do kontroli przemysłowych procesów technologicznychArbeitsgebiete (FA)10/14Polnisch -
Измерение температуры
Датчики температуры и преобразователи для любых
отраслей промышленности.Arbeitsgebiete (FA)06/13Russisch -
Catálogo medición temperatura
Termómetros y transmisores para la industria de proceso
Arbeitsgebiete (FA)04/18Spanisch -
Misura della temperatura
Termometri e trasmettitori
per l'industria di processoArbeitsgebiete (FA)04/18Italienisch -
Field of activities FA Temperature measurement
Thermometers and transmitters for the process industry
Arbeitsgebiete (FA)03/13Englisch -
Sıcaklık Ölçümü
Proses endüstrisi için termometreler ve transmiterler
Arbeitsgebiete (FA)03/13Türkisch -
Temperaturmesstechnik
Thermometer und Transmitter für die Prozessindustrie
Arbeitsgebiete (FA)02/20Deutsch -
Temperature measurement
Thermometers and transmitters for the process industry
Arbeitsgebiete (FA)02/20Englisch -
Измерение температуры
Ключевые особенности термометров Endress+Hauser для нефтегазовой отрасли
Kompetenzbroschüre (CP)08/11Russisch -
Инженерные решения по термометрии
Специальные решения по термометрии для химической и
нефтеперерабатывающей промышленностиKompetenzbroschüre (CP)04/10Russisch -
RTD-thermometer, Process TC Heavy duty, Process TC General purpose, Process TC Explosion proof, Process TC direct in contact, Process TC Direct contact, Process RTD Hygienic, Process RTD Heavy duty, Process RTD General purpose, Process RTD Explosion proof, Process RTD direct in contact, Process RTD Direct contact, Plugs RTD direct contact, Magphant, Low cost RTD General purpose, Industrial Modular Thermometer
Produktwurzel: TR15-, TR13-, TR12-, TR11-, TR10-, TMT470L-, TMT162R-, TMT162C-, TMT142R-, TMT142C-, TMR35L-, TMR35-, TMR31L-, TMR31-, TM411-, TM401-, TH56-, TH55-, TH54-, TH53-, TH52-, TH51-, TR24-, TTR35-, TTR31-, TST90-, TST602-, TST487-, TST434-, TST41N-, TST414-, TST410-, TST40N-, TST310-, TST187-, TSM487-, TSM187-, TSC310-, TR88-, TR66-, TR65-, TR63-, TR62-, TR61-, TR25-, TH27-, T55-, T54-, T53-, T15-, T14-, T13-, OTR96-, OTR95-, OTR94-, OTR93-, OTR92-, OTR91-, OTR90-, OTR35-, OTR31-, MLTTS01-, MLTTS00-, GPTL-, DTT35L-, DTT35-, DTT31L-, DTT31-, TAF11-, TH18-, TH17-, TH15-, TH14-, TH13-, TH12-, TH11-, TEC420-, TC88-, TC66-, TC65-, TC63-, TC62-, TC61-, TC15-, TC13-, TC12-, TC10-, TAF16-, TAF12T-, TAF12S-, TAF12D-
