T54

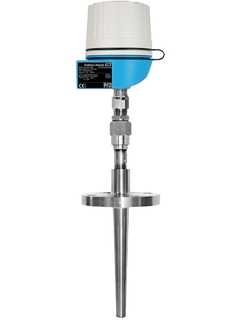

Explosion proof TC thermometer, US style
Safe monitoring of process temperatures in challenging applications e. g. in the Oil & Gas industry
The robust thermometer is designed for use in demanding and safety relevant applications e.g. in Chemical, Oil & Gas and Energy industry. Harsh environments, corrosive substances and highest pressures can be handled by the use of robust thermowells and special materials. An optional head transmitter with all common communication protocols makes the device ready to use with enhanced measurement accuracy and reliability compared to directly wired sensors. Flexible configuration possible.
-
Perfekt für Basisanwendungen
- Einfachste Auswahl, Installation und Bedienung
Leistungsumfang
Einfache Auswahl
-
Optimierter Leistungsumfang für Standardanwendungen
- Einfache Auswahl, Installation und Bedienung
Leistungsumfang
Einfache Auswahl
-
Maximaler Leistungsumfang für breiten Einsatzbereich
- Einfache Installation und Bedienung
Leistungsumfang
Einfache Auswahl
-
Höchster Nutzen durch Spezialisierung auf Anwendung
- Einfache Installation und Bedienung
Leistungsumfang
Einfache Auswahl
Variabel
FLEX Auswahl | Leistungsumfang | Einfache Auswahl |
---|---|---|
Fundamental Auswahl Perfekt für Basisanwendungen |
Leistungsumfang
|
Einfache Auswahl
|
Lean Auswahl Optimierter Leistungsumfang für Standardanwendungen |
Leistungsumfang
|
Einfache Auswahl
|
Extended Auswahl Maximierte Effizienz in Standardanwendungen im Life Cycle |
Leistungsumfang
|
Einfache Auswahl
|
Xpert Auswahl Herausragende Leistung für besondere Anwendungen |
Leistungsumfang
|
Einfache Auswahl
Variabel |
-
Spezifikation im Überblick
-
Genauigkeit
Standard gem. ASTM E-230
Special gem. ASTM E-230 -
Ansprechzeit
abhängig vom Aufbau
63% rt = 15 s -
Max. Prozessdruck (statisch)
bei 20 °C: 500 bar (7.252 psi)
abhängig von der Konfiguration -
Arbeitsbereich
Typ T:
-270 °C ...370 °C
(-454 °F ...698 °F)
Typ J:
-210 °C ...720 °C
(-346 °F ...1.328 °F)
Typ E:
-270 °C ...820 °C
(-454 °F ...1.508 °F)
Typ K:
-270 °C ... 1.150 °C
(-454 °F ...2.102 °F)
Typ N:
-270 °C ... 1.150 °C
(-454 °F ...2.102 °F -
Max. Eintauchlänge auf Anfrage
bis 22,5" (571 mm)
andere auf Anfrage
-
Schnellauswahl
Individuelle Konfiguration
-
Vorteile
FM/CSA XP Class I, Div. 1 approved temperature assemblies for maximum safety
One source shopping for temperature measurement solutions. World class transmitter with integrated sensor offering for heavy process industry applications
Remove and install...
-
Anwendungsgebiet
The sensor assembly can be used in process industries such as:
Chemicals
Petrochemical
Refineries
Offshore Platforms
Dokumente / Handbücher / Software
-
T53, T54 and T55
Thermocouple assemblies T53, T54 and T55 for heavy duty applications
Technische Information (TI) -
KA244R T54 explosion proof thermocouple assembly in flanged thermowell
T54 Explosion proof thermocouple assembly in flanged thermowell
Kurzanleitung (KA)05/07Englisch -
Temperature assemblies T13, T14, T15, T53, T54, T55
Control drawing CSA (XP, DIP)
Installation notes for CSA approved apparatus
Ex-Sicherheitshinweise (XA) -
T13, T14, T53, T54
CSA installation notes: explosion proof, dust ignition proof, non
incendive
CSA approved temperature assemblies
Zertifikat FM/CSA (ZD) -
Control Drawing FM Explosionproof T13, T14, T53, T54
Temperature Process RTD Explosion Proof T13, Process RTD Explosion Proof
T14, Process TC Explosion Proof T53, Process TC ExplosionProof T54
Installation Notes for Hazardous LocationsZertifikat FM/CSA (ZD) -
Control Drawing FM XP, NI, DIP T13, T14, T53, T54
Temperature Process RTD Explosion Proof T13, Process RTD Explosion Proof
T14, Process TC Explosion Proof T53, Process TC ExplosionProof T54
Installation Notes for Hazardous LocationsZertifikat FM/CSA (ZD) -
Control Drawing FM XP, NI, DIP T13, T14, T53, T54
Temperature Process RTD Explosion Proof T13, Process RTD Explosion Proof
T14, Process TC Explosion Proof T53, Process TC ExplosionProof T54
Installation Notes for Hazardous LocationsZertifikat FM/CSA (ZD) -
T13, T14, T53, T54
CSA Installation notes, explosion proof, dust ignition proof
CSA approved temperature assemblies
Zertifikat FM/CSA (ZD) -
Control Drawing CSA Intrinsically Safety, Nonincendive THxx, Txx Series,
TU111, TU121, TU211, TU221
Installation Notes for Hazardous Locations
Zertifikat FM/CSA (ZD) -
Control Drawing FM Explosionproof T13, T14, T53, T54
Temperature Process RTD Explosion Proof T13, Process RTD Explosion Proof
T14, Process TC Explosion Proof T53, Process TC ExplosionProof T54
Installation Notes for Hazardous LocationsZertifikat FM/CSA (ZD) -
Измерение температуры
Ключевые особенности термометров Endress+Hauser для нефтегазовой отрасли
Kompetenzbroschüre (CP)08/11Russisch -
Инженерные решения по термометрии
Специальные решения по термометрии для химической и
нефтеперерабатывающей промышленностиKompetenzbroschüre (CP)04/10Russisch -
RTD-thermometer, Process TC Heavy duty, Process TC General purpose, Process TC Explosion proof, Process TC direct in contact, Process TC Direct contact, Process RTD Hygienic, Process RTD Heavy duty, Process RTD General purpose, Process RTD Explosion proof, Process RTD direct in contact, Process RTD Direct contact, Plugs RTD direct contact, Magphant, Low cost RTD General purpose, Industrial Modular Thermometer
Produktwurzel: TR15-, TR13-, TR12-, TR11-, TR10-, TMT470L-, TMT162R-, TMT162C-, TMT142R-, TMT142C-, TMR35L-, TMR35-, TMR31L-, TMR31-, TM411-, TM401-, TH56-, TH55-, TH54-, TH53-, TH52-, TH51-, TR24-, TTR35-, TTR31-, TST90-, TST602-, TST487-, TST434-, TST41N-, TST414-, TST410-, TST40N-, TST310-, TST187-, TSM487-, TSM187-, TSC310-, TR88-, TR66-, TR65-, TR63-, TR62-, TR61-, TR25-, TH27-, T55-, T54-, T53-, T15-, T14-, T13-, OTR96-, OTR95-, OTR94-, OTR93-, OTR92-, OTR91-, OTR90-, OTR35-, OTR31-, MLTTS01-, MLTTS00-, GPTL-, DTT35L-, DTT35-, DTT31L-, DTT31-, TAF11-, TH18-, TH17-, TH15-, TH14-, TH13-, TH12-, TH11-, TEC420-, TC88-, TC66-, TC65-, TC63-, TC62-, TC61-, TC15-, TC13-, TC12-, TC10-, TAF16-, TAF12T-, TAF12S-, TAF12D-
Erklärungsnummer: EC_00568_01.17EU ErklärungDeutsch , Englisch , fr -
ACCESSORIES: RTD INSERT, ACCESSORIES: TC INSERT, Process RTD Explosion proof, Process TC Explosion proof
Produktwurzel: T13-, T14-, T15-, T53-, T54-, T55-, TU211-, TU221-
Region/Land: USA
Zulassungsstelle: FM
Kategorie: I,II,III/1,2/A,B,C,D,E,F,G/
Zündschutzart: DIP, XPEx AusrüstungEnglisch -
ACCESSORIES: RTD INSERT, ACCESSORIES: TC INSERT, Process RTD Explosion proof, Process RTD General purpose, Process TC Explosion proof
Produktwurzel: T13-, T14-, T15-, T53-, T54-, T55-, TM111-, TM131-, TU211-, TU221-
Region/Land: USA, Kanada
Zulassungsstelle: CSA
Kategorie: II,III/1/E,F,G/TXXX°C, I/1/1/T6...T1, I/1/A,B,C,D/T6...T1, I/2/A,B,C,D/T6...T1
Zündschutzart: XP, NI, DIPEx AusrüstungEnglisch -
ACCESSORIES: PIPE THERMOWELL, Process RTD Explosion proof, Process RTD Hygienic, Process TC Explosion proof, Process TC Heavy duty, TC Heavy duty
Produktwurzel: TU67-, TU55-, TU54-, TU53-, TU52-, TU51-, TH54-, TH53-, TH27-, TH14-, TH13-, T54-, T53-, T14-, T13-
Region/Land: Kanada, Kanada (CRN)
Zulassungsstelle: TSSAPressure EquipmentEnglisch -
Process RTD Explosion proof, Process RTD General purpose, Process RTD Hygienic, Process TC Explosion proof
Produktwurzel: T13-, T14-, T15-, T53-, T54-, T55-, TM111-, TM131-, TM411-, TM412-
Region/Land: USA, Kanada
Zulassungsstelle: CSAOrdinary Location Product SafetyEnglisch
Zubehör / Ersatzteile
-
-
Bestellnummer 71310423
-
Bestellnummer TMT142X-DA
Display HART5 + Halterung + Verdrehsicherung
-
Bestellnummer TMT142X-DC
Displayhalterung + Verdrehsicherung
-
Bestellnummer TMT162X-DA
Display HART5 + Halterung + Verdreh- sicherung
-
Bestellnummer TMT162X-DB
Display PA/FF + Halterung + Verdreh- sicherung
-
Bestellnummer TMT162X-DC
Displayhalterung + Verdrehsicherung
-
Bestellnummer 51006845
Kabelverschraubung NPT1/2 D4,5-8,5 IP68
-
Bestellnummer 51007995
Montagehalter Rohr 1,5-3" Edelstahl 316L
-
-
-
Nr F Bestellnummer TMT142X-HA
Gehäusedeckel blind, 316L Ex d, FM XP, CSA XP + Dichtung
-
Nr F Bestellnummer TMT142X-HC
Gehäusedeckel kpl.für Display, 316L Ex d FM XP, CSA XP + Dichtung
-
Nr F Bestellnummer TMT142X-HH
Gehäusedeckel blind, Alu Ex d, FM XP + Dichtung CSA-Zul. nur als Abdeckung Anschlussraum
-
Nr F Bestellnummer TMT142X-HK
Gehäusedeckel kpl. für Display, Alu Ex d + Dichtung
-
Nr F Bestellnummer TMT162X-HA
Gehäusedeckel blind, 316L Ex d ATEX Ex d, FM XP + Dichtung CSA-Zul.nur als Abdeckung Anschlussraum
-
Nr F Bestellnummer TMT162X-HC
Gehäusedeckel kpl. für Display,Ex d 316L ATEX Ex d, FM XP, CSA XP + Dichtung
-
Nr F Bestellnummer TMT162X-HH
Gehäusedeckel blind Alu Ex d FM XP + Dichtung CSA-Zul. nur als Abdeckung Anschlussraum
-
Nr F Bestellnummer TMT162X-HK
Gehäusedeckel kpl. für Display Alu Ex d + Dichtung
-
-
-
Bestellnummer 71044062
Beistellset kpl. TMT8x/7x USA(amerik.)
2x Schraube,1x Dichtung CDI-Stecker
-
Bestellnummer TMT162A-MA
Mounting bracket,North American region standard model,stainl.steel wall/tube 2"
-
Bestellnummer TMT162A-MB
Cable gland NPT1/2, North American region standard model,2xD0.5 cables
-
Bestellnummer TMT162A-MD
Montagehalter Rohr 2"/V4A
-
Bestellnummer 71386275
Integrierbarer Überspannungsschutz
zur nachträglichen Montage in einem Feldtransmitter. Kompatibilität beachten.
-
-
-
Nr A Bestellnummer TU121-
TC-Insert TU121, Gen.Purp. U.S.Style
Spare part. Thermocouple Insert spring loaded. Thermocouple comply with EMF tables of ASTM E-230 and IEC60584. Color codes per ASTM E-230.
-
-
-
Nr E Bestellnummer TU54-
Thermowell TU54, Flanged U.S.Style
Bar stock Thermowell, CRN Number. The Flange is welded on.
-
-
-
Nr F Bestellnummer TA30H-
Terminal Head TA30H
Retainer for terminal block or head transmitter + optional display. Design: explosion proof. Cover: screwed, optional window. Material: aluminium. Coating: polyester powder-coating. Colour: body blue, cover grey. Ambient temp.: -50 150 oC (housing). Protection: IP66/68, NEMA 4X (housing). Protection Ex d/XP: IP66/67 (housing).
-
-
-
Bestellnummer TMT142E-
Electronic TMT142E
-
Bestellnummer TMT162E-
Electronic TMT162
-
Bestellnummer TMT181-
iTEMP TMT181, Head Transmitter PCP
Product being phased out, limited availability. Temperature transmitter,PC-programmable. Application: RTD, TC, Ohm, mV. 2-wire 4-20mA, galvanic isolation. Fault reaction: NAMUR NE 43. Mounting: head form B, DIN EN50446. UL listed.
-
Bestellnummer TMT182-
iTEMP TMT182, Head Transmitter HART
Product being phased out, limited availability. Temperature transmitter, Protocol HART. Application: RTD, TC, Ohm, mV. 2-wire 4-20mA, galvanicisolation. Fault reaction: NAMUR NE 43. Mounting: head form B, DIN EN50446. UL listed.
-
Bestellnummer TMT82-
iTEMP TMT82, Transmitter HART
2-wire temperature transmitter. Dual universal sensor input. Galvanic isolation 2kV (input/output). Application: RTD, TC, Ohm and mV. ::Highly reliable due to drift detection and sensor back up. ::Optional also for safety critical applications by means of SIL 2/3 acc. to IEC61508.
-
Bestellnummer TMT84-
iTEMP TMT84, Transmitter PA
Dual sensor input. Advanced diagnostics:sensor monitoring. PROFIBUS PA Profile 3.02. Galvanic isolation 2kV. Application: RTD, TC, Ohm, mV. Current consumption: 11 mA. Mounting: head form B, DIN EN50446. Factory setup: CH1: Pt100, 3-wire, oC. CH2: inactive. Differing configuration optional selectable.
-
Bestellnummer TMT85-
iTEMP TMT85, Transmitter FF
Dual sensor input. Advanced diagnostics: sensor monitoring. FOUNDATION Fieldbus protocol Galvanic isolation 2 kV. Application: RTC, TC, Ohm, mV. Current consumption: 11 mA. Mounting: head form B, DIN EN50446. Factory setup: CH1: Pt100, 3-wire, oC. CH2: inactive. Differing configuration optional selectable.
-
Bestellnummer READWIN-
Readwin 2000 Operation + Read. software
-
Bestellnummer TID10-
Display Unit Head Transmitter
to plug on. Dot-Matrix measured value display. 12 DIP-switches buttom side. Settings: FF: Simulation, Write Lock. PA: Bus address, Write Lock. Compatible: TMT85, TMT84, TMT82.
-
Bestellnummer TXU10-
Configuration Kit TXU10
for PC-programmable devices. set-up programme+interface cable for PC with USB-Port.
-
Bestellnummer FXA195-
Commubox FXA195
Modem to connect HART field devices to a computer via USB. Commissioning of field devices with software tool. :: To connect to a intrinsically safe signal circuit. :: SIL2, IEC61508.
-
Bestellnummer T55-
TC-Assembly T55, Spring XP U.S.Style
Spring loaded temperature measuring devise, without thermowell. Hazardous approval and CRN number. Thermocouple comply with EMF tables of ASTM E-230 and IEC60584. Color Codes per ASTM E-230.
-
