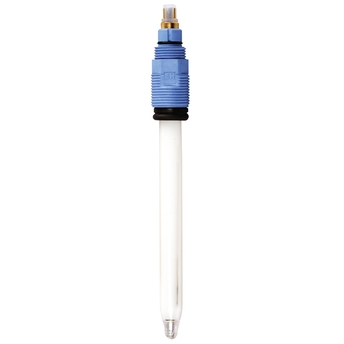

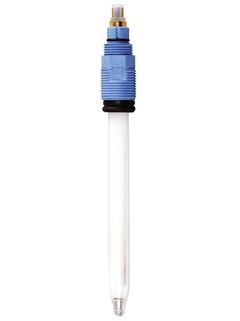

Analoger pH-Sensor
Orbipore CPS91
Glaselektrode für stark verschmutzte Medien in chemischen Prozessen, bei der Papier- oder Farbenproduktion
Orbipore CPS91 ist der analoge Spezialist für die pH-Messung in faserigen Medien oder Medien mit einem hohen Anteil an Feststoffen wie Dispersionen, Fällungsreaktionen oder Emulsionen. Sein Lochdiaphragma verhindert Verschmutzungen und garantiert Ihnen die zuverlässigste Messung unter extremen Prozessbedingungen.
-
Perfekt für Basisanwendungen
- Einfachste Auswahl, Installation und Bedienung
Leistungsumfang
Einfache Auswahl
-
Optimierter Leistungsumfang für Standardanwendungen
- Einfache Auswahl, Installation und Bedienung
Leistungsumfang
Einfache Auswahl
-
Maximaler Leistungsumfang für breiten Einsatzbereich
- Einfache Installation und Bedienung
Leistungsumfang
Einfache Auswahl
-
Höchster Nutzen durch Spezialisierung auf Anwendung
- Einfache Installation und Bedienung
Leistungsumfang
Einfache Auswahl
Variabel
FLEX Auswahl | Leistungsumfang | Einfache Auswahl |
---|---|---|
Fundamental Auswahl Perfekt für Basisanwendungen |
Leistungsumfang
|
Einfache Auswahl
|
Lean Auswahl Optimierter Leistungsumfang für Standardanwendungen |
Leistungsumfang
|
Einfache Auswahl
|
Extended Auswahl Maximierte Effizienz in Standardanwendungen im Life Cycle |
Leistungsumfang
|
Einfache Auswahl
|
Xpert Auswahl Herausragende Leistung für besondere Anwendungen |
Leistungsumfang
|
Einfache Auswahl
Variabel |
-
Spezifikation im Überblick
-
Messbereich
pH 0-14
-
Prozesstemperatur
max. 110°C
-
Prozessdruck
max. 10bar
-
Schnellauswahl
Individuelle Konfiguration
-
Vorteile

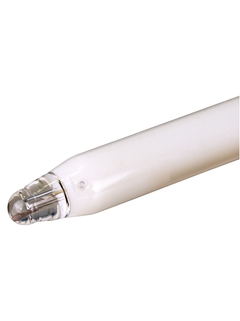

Lochdiaphragma, daher anwendbar in stark verschmutzten Medien
Geringe Wartung und lange Standzeiten durch stabilisiertes Gel
Unempfindlich gegenüber Druck- und Temperaturschwankungen
-
Anwendungsgebiet
Chemieindustrie
Zellstoff- und Papierindustrie
Verschmutze Medien oder Medien mit hohem Feststoffanteil:
- Dispersionen
- Fällungsreaktionen
- Emulsionen
Mit ATEX- und FM-Zulassung für den Einsatz in explosionsgefährdeten Bereichen geeignet.
