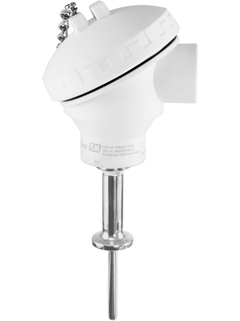

iTHERM TM402
Imperial Hygienic Thermometer,
US style
For standard hygienic and aseptic applications in the Food & Beverages and Life Sciences industries
This iTHERM thermometer has been designed to meet the basic requirements of the Food & Beverages and Life Sciences industries at the best price. It offers a variety of versions within a clearly segmented standard product. The result: Time and cost savings by simple and fast product selection. The device uses basic technology with features such as a fixed, non-replaceable insert, a wide range of process connections and international certification at an excellent value for money.
- F
- L
- E
- X
-
Perfekt für Basisanwendungen
- Einfachste Auswahl, Installation und Bedienung
Leistungsumfang
Einfache Auswahl
-
Optimierter Leistungsumfang für Standardanwendungen
- Einfache Auswahl, Installation und Bedienung
Leistungsumfang
Einfache Auswahl
-
Maximaler Leistungsumfang für breiten Einsatzbereich
- Einfache Installation und Bedienung
Leistungsumfang
Einfache Auswahl
-
Höchster Nutzen durch Spezialisierung auf Anwendung
- Einfache Installation und Bedienung
Leistungsumfang
Einfache Auswahl
Variabel
FLEX Auswahl | Leistungsumfang | Einfache Auswahl |
---|---|---|
Fundamental Auswahl Perfekt für Basisanwendungen |
Leistungsumfang
|
Einfache Auswahl
|
Lean Auswahl Optimierter Leistungsumfang für Standardanwendungen |
Leistungsumfang
|
Einfache Auswahl
|
Extended Auswahl Maximierte Effizienz in Standardanwendungen im Life Cycle |
Leistungsumfang
|
Einfache Auswahl
|
Xpert Auswahl Herausragende Leistung für besondere Anwendungen |
Leistungsumfang
|
Einfache Auswahl
Variabel |
-
Spezifikation im Überblick
-
Genauigkeit
Klasse A nach IEC 60751
-
Ansprechzeit
abhängig vom Aufbau
-
Max. Prozessdruck (statisch)
bei 20 °C: 40 bar (580 psi)
-
Arbeitsbereich
PT100:
-50 °C … 200 °C
(-58 °F … 392 °F) -
Max. Eintauchlänge auf Anfrage
bis 15,5" (317,5mm)
andere auf Anfrage
-
Schnellauswahl
Individuelle Konfiguration
-
Vorteile
-
Excellent value for money and fast delivery
-
User-friendly and reliable from product selection to maintenance
-
International certification: hygiene standards as per 3-A® , EHEDG, ASME BPE, FDA, TSE Certificate of Suitability
-
Wide range of process...
-
-
Anwendungsgebiet
Specially designed for use in hygienic and aseptic applications in the Food & Beverages and Life Sciences industries
Measuring range: –50 to +200 °C (–8 to +392 °F)
Pressure range up to 40 bar (580 psi)
Protection class: up to IP69K
Can be used in non...
Dokumente / Handbücher / Software
-
iTHERM TM402
Technical Information
Resistance thermometer for hygienic and aseptic applications
Technische Information (TI) -
Modulare hygienische Thermometer
Universell einsetzbare modulare Thermometer mit RTD-Messeinsatz für
hygienische AnwendungenBetriebsanleitung (BA) -
Installation Instructions
iTHERM TM402, TM412
Imperial hygienic RTD thermometer
Einbauanleitung (EA) -
iTHERM Thermometer
TM401, TM402, TM411, TM412
Modulare iTHERM Thermometer im hygienegerechten Design für die
Lebensmittel- und pharmazeutische IndustrieInnovationen (IN)08/17Deutsch -
iTHERM thermometers
TM401, TM402, TM411, TM412
Modular iTHERM thermometers with hygienic design
for the Food & Beverage and Life Sciences industriesInnovationen (IN)08/17Englisch -
iTHERM® TM411
Новое поколение термометров для пищевой и фармацевтической
промышленностиInnovationen (IN)04/12Russisch -
iTHERM®
TM401, TM402, TM411, TM412
Sondes de température modulaires hygiéniques iTHERM® dédiées aux
industries agroalimentaires et pharmaceutiquesInnovationen (IN)01/13fr -
ACCESSORIES: PIPE THERMOWELL, ACCESSORIES: T_INSERTS, Process RTD Hygienic, RTD-thermometer
Produktwurzel: TK40-, TM371-, TM372-, TM401-, TM402-, TM411-, TM412-, TMR35-, TS111-, TS212-, TT411-, TT412-
Erklärungsnummer: HE_00886_02.17HerstellererklärungDeutsch , Englisch -
ACCESSORIES: PIPE THERMOWELL, Magphant, Process RTD Hygienic, RTD-thermometer
Produktwurzel: TTR35-, TT412-, TT411-, TMR35-, TM412-, TM411-, TM402-, TM401-, TM372-, TM371-, TM311-, TK40-, DTT35-
Erklärungsnummer: HE_01097_01.19
Hersteller Spezifikation: Food hygieneHerstellererklärungEnglisch -
ACCESSORIES: PIPE THERMOWELL, ACCESSORIES: T_INSERTS, Process RTD Hygienic, RTD-thermometer
Produktwurzel: TK40-, TM371-, TM372-, TM401-, TM402-, TM411-, TM412-, TMR35-, TS111-, TS212-, TT411-, TT412-
Erklärungsnummer: HE_00886_01.17HerstellererklärungDeutsch , Englisch -
Process RTD Hygienic
Produktwurzel: TK40-, TM401-, TM402-, TM411-, TM412-, TS111-, TS112-, TT411-, TT412-
Erklärungsnummer: MD-12028A-9HerstellererklärungEnglisch -
ACCESSORIES: PIPE THERMOWELL, Magphant, Process RTD Hygienic, RTD-thermometer
Produktwurzel: TTR35-, TT412-, TT411-, TMR35-, TM412-, TM411-, TM402-, TM401-, TM372-, TM371-, TM311-, TK40-, DTT35-
Erklärungsnummer: HE_00099_05.15
Hersteller Spezifikation: Food hygiene, 10/2011, 1935/2004HerstellererklärungDeutsch , Englisch -
Process RTD Hygienic
Produktwurzel: TM402-
Erklärungsnummer: HE_01262_01.20
Hersteller Spezifikation: RoHSHerstellererklärungChinesisch -
ACCESSORIES: PIPE THERMOWELL, Magphant, Process RTD Hygienic, RTD-thermometer
Produktwurzel: TTR35-, TT412-, TT411-, TMR35-, TM412-, TM411-, TM402-, TM401-, TM372-, TM371-, TM311-, TK40-, DTT35-
Erklärungsnummer: FDA_00127_03.17FDA DeclarationDeutsch , Englisch -
Process TC Heavy duty, Process TC General purpose, Process TC Direct contact, Process RTD Hygienic, Process RTD Heavy duty, Process RTD General purpose, Process RTD Direct contact, Low cost RTD General purpose
Produktwurzel: TM412-, TR10-, TR11-, TR12-, TR13-, TR15-, TR24-, TR25-, TR44-, TR45-, TR46-, TR47-, TR48-, TR61-, TR62-, TR63-, TR65-, TR66-, TR88-, TST40N-, TST41N-, TST434-, TM411-, TAF11-, TAF12D-, TAF12S-, TAF12T-, TAF16-, TC10-, TC12-, TC13-, TC15-, TC61-, TC62-, TC63-, TC65-, TC66-, TC88-, TEC420-, TM101-, TM111-, TM121-, TM131-, TM401-, TM402-
Erklärungsnummer: EC_00136_02.16EU ErklärungDeutsch , Englisch -
ACCESSORIES: PIPE THERMOWELL, Magphant, Process RTD Hygienic, RTD-thermometer
Produktwurzel: TTR35-, TT412-, TT411-, TMR35-, TM412-, TM411-, TM402-, TM401-, TM372-, TM371-, TM311-, TK40-, DTT35-
Region/Land: Europa
Zulassungsstelle: TU MünchenHygienic EquipmentEnglisch -
ACCESSORIES: PIPE THERMOWELL, Magphant, Process RTD Hygienic, RTD-thermometer
Produktwurzel: TTR35-, TT412-, TT411-, TMR35-, TM412-, TM411-, TM402-, TM401-, TM372-, TM371-, TM311-, TK40-, TE411-, DTT35-, OTR35-, OTM311-, OTMR35-, ODTT35-
Region/Land: Kanada, USA
Zulassungsstelle: 3-A Sanitary StandardsHygienic EquipmentEnglisch
Zubehör / Ersatzteile
-
-
Bestellnummer 52018765
Einschweissadapter G3/4, d=50, 316L, 3.1
Frontbündige Abdichtung Prozessanschluss. Werkstoff: 316L. Abnahmeprüfzeugnis EN10204-3.1 Material. Dichtung: Silikon O-Ring. FDA, EHEDG, 3-A konform. Verwendung: FMI51, FTI51, FTL20/FTL20H, FTL31/FTL33, FTW23/FTW33, QMW43, 11371. Verwendung: TMR35.
-
Bestellnummer 52021717
O-Ring 14,9x2,7 VMQ, FDA, 5 St.
Werkstoff: Silikon VMQ 75. Verwendung: Einschweissadapter G3/4, 316L, (71258355) Behältermontage, (71258357) Rohrmontage, frontb., FTL31/FTL33, FTW23/FTW33, QMW43, Einschweissadapter G3/4, 316L, 3.1, (52018765) Behältermontage, (52028295) Rohrmontage, frontb., FMI51, FTI51, FTL31/FTL33, FTW23/FTW33, QMW43.
-
Bestellnummer 52028295
Einschweissadapter G3/4, d=29, 316L, 3.1
Frontbündige Abdichtung Prozessanschluss. Für Rohrmontage. Werkstoff: 316L. Abnahmeprüfzeugnis EN10204-3.1 Material Dichtung: Silikon O-Ring. FDA, EHEDG konform. Verwendung: FTL20/FTL20H, FTL31/FTL33, FTW23/FTW33, QMW43.
-
Bestellnummer 52001052
Einschweissadapter G3/4, d=55, 316L
Frontbündige Abdichtung Prozessanschluss. Werkstoff: 316L. Dichtung: Silikon O-Ring. FDA, EHEDG, 3-A konform. Verwendung: FTL41, FTL50/FTL50H, FTL51B, FTL80, TMR35, QMW43.
-
Bestellnummer 52011897
Einschweissadapter G3/4, 316L, 3.1
Frontbündige Abdichtung Prozessanschluss. Werkstoff: 316L. Abnahmeprüfzeugnis EN10204-3.1 Material. Dichtung: Silikon O-Ring. FDA, EHEDG, 3-A konform. Verwendung: FTL41 FTL50/FTL50H, FTL51B, FTL80, QMW43, TMR35.
-
Bestellnummer 52014473
O-Ring 21,89x2,62 VMQ, FDA, 5 St.
Werkstoff: Silikon VMQ 70. Verwendung: Einschweissadapter G3/4, 316L (52001052) frontb., 316L, 3.1 (52011897) frontb., FTL50/FTL50H/FTL51/FTL51H, FTL80/FTL81.
-
Bestellnummer 52001051
Einschweissadapter G1, d=60, 316L
Frontbündige Abdichtung Prozessanschluss. Werkstoff: 316L. Dichtung: Silikon O-Ring. FDA, EHEDG, 3-A konform. Verwendung: FMI51/FMI52, FTI51/FTI52, FTL20/FTL20H, FTL31/FTL33, FTL41, FTL50/FTL50H, FTL51/FTL51B/FTL51C/FTL51H, FTL80/FTL81, FTL260, FTW23, FTW33, PMP23, PMP51, PMP135, PTP33B/PTP35, QMW43, TM401/TM411, TMR35.
-
Bestellnummer 52011896
Einschweissadapter G1, d=60, 316L, 3.1
Frontbündige Abdichtung Prozessanschluss. Werkstoff: 316L. Abnahmeprüfzeugnis EN10204-3.1 Material. Dichtung: Silikon O-Ring. FDA, EHEDG, 3-A konform. Verwendung: FMI51/FMI52, FTI51/FTI52, FTL20H, FTL31/FTL33, FTL41, FTL50/FTL50H, FTL51/FTL51B/FTL51C/FTL51H, FTL80/FTL81, FTL260, FTW23, FTW33, PMP23, PMP51, PMP135, PTP33B/PTP35, QMW43, TM401/TM411, TMR35.
-
Bestellnummer 71093129
Einschweissadapter G1, d=53, 316L, 3.1
Frontbündige Abdichtung Prozessanschluss. Werkstoff: 316L. Abnahmeprüfzeugnis EN10204-3.1 Material. Dichtung: Silikon O-Ring. FDA, EHEDG, 3-A konform. Verwendung: FMI51/FMI52, FTI51/FTI52, FTL20H, FTL31/FTL33, FTL41, FTL50/FTL50H, FTL51/FTL51B/FTL51C/FTL51H, FTL80/FTL81, FTL260, FTL330H/FTL330L, FTW23, FTW33, PMP135, PTP35, QMW43.
-
Bestellnummer 52014472
O-Ring 28,17x3,53 VMQ, FDA, 5 St.
Werkstoff: Silikon VMQ 70. Verwendung: Einschweissadapter G1, 316L, (52001051) frontb., FMI51/FMI52, FTI51/FTI52, FTL31/FTL33, FTW23/FTW33, PMP23, PMP51, PTP33B, FTL50/FTL50H/FTL51/FTL51H, FTL80/FTL81, QMW43, Einschweissadapter G1, 316L, 3.1, (52011896) frontb., FMI51/FMI52, FTI51/FTI52, FTL31/FTL33, FTW23/FTW33, PMP23, PMP51, PTP33B, FTL50/FTL50H/FTL51/FTL51H, FTL80/FTL81, QMW43, Schiebemuffe FTM21.
-
Bestellnummer 52001221
Einschweissadapter G1, ausrb., 316L
Frontbündige Abdichtung Prozessanschluss. Werkstoff: 316L. Liquiphant ist ausrichtbar. Dichtung: Silikon Profildichtung. FDA, EHEDG, 3-A konform. Verwendung: FTL20/FTL20H, FTL31/FTL33, FTL41, FTL50/FTL50H/FTL51/FTL51C/FTL51H, FTL51B, FTL80/FTL81, FTL330H/330L.
-
Bestellnummer 52011898
Einschweissadapter G1, ausrb., 316L, 3.1
Frontbündige Abdichtung Prozessanschluss. Werkstoff: 316L. Liquiphant ist ausrichtbar. Abnahmeprüfzeugnis EN10204-3.1 Material. Dichtung: Silikon Profildichtung. FDA, EHEDG, 3-A konform. Verwendung: FTL20/FTL20H, FTL41, FTL50/FTL50H, FTL51/FTL51B/FTL51C/FTL51H, FTL31/FTL33, FTL80/FTL81, FTL330H/FTL330L.
-
Bestellnummer 52014424
Profildichtung 29x36x3,7, FDA, 5 St.
Werkstoff: Silikon VMQ. Verwendung: Prozessanschluss G1 frontb., Einschweissadapter G1, 316L, ausrichtbar (52001221), Einschweissadapter G1, 316L, 3.1, ausrichtbar (52011898), FTL31/FTL33, FTL80/FTL81, FTL50/FTL50H/FTL51/FTL51H, Einschweissadapter RD52, 316L, ausrichtbar, (52001047), 316L, 3.1, ausrichtbar, (52006909), FTL33, FTL50/FTL50H/FTL51/FTL51H, QMW43.
-
Bestellnummer TMT180-
iTEMP TMT180, Head Transmitter Pt100
Temperature transmitter,PC-programable. Application: RTD. 2-wire 4-20mA. Fault reaction: NAMUR NE 43. Mounting: head form B, DIN EN50446. UL listed.
-
Bestellnummer TMT181-
iTEMP TMT181, Head Transmitter PCP
Product being phased out, limited availability. Temperature transmitter,PC-programmable. Application: RTD, TC, Ohm, mV. 2-wire 4-20mA, galvanic isolation. Fault reaction: NAMUR NE 43. Mounting: head form B, DIN EN50446. UL listed.
-
Bestellnummer 51516983
Commubox FXA291 (Hardware)
Serielles USB Computer Interface Technische Daten: - USB Version 1.1 oder hoeher - Versorgung ueber USB - IP51; NEMA/Typ 3 - Umgebungstemperatur: -20....+60oC - Ex: II(2) G (EEx ia) II C - ATEX: BVS 05 ATEX E 095 Lieferumfang: Commubox FXA 291 MS Windows USB Treiber Geraet ist für CSA/FM eingereicht. Das Geraet darf nicht modifiziert und nur an entsprechend eigensicheren Strom- kreisen (siehe Sicherheitszertifikat) betrieben werden.
-
Bestellnummer TMT71-
iTEMP TMT71, Transmitter 4-20mA
2-wire temperature transmitter. Single universal sensor input. Galvanic isolation 2kV (input/output). Application: RTD, TC, Ohm and mV. Factory setup w/o additional specification:Pt100, 4-wire, 0...+100oC.
-
Bestellnummer TMT72-
iTEMP TMT72, Transmitter HART
2-wire temperature transmitter. Single universal sensor input. Galvanic isolation 2kV (input/output). Application: RTD, TC, Ohm and mV. Factory setup w/o additional specification:Pt100, 4-wire, 0...+100oC.
-
Bestellnummer TA30A-
Terminal Head TA30A
Retainer for terminal block or head transmitter + optional display. Cover: low, hinged, optional window. Material: aluminium. Coating: polyester powder-coating. Colour: body blue, cover grey. Ambient temp.: -50...150 oC (housing). Protection: IP66/68, NEMA 4X (housing).
-
Bestellnummer TA30S-
Terminal Head TA30S
Retainer for terminal block or head transmitter. Cover: screwed. Material: Polypropylene. Colour: white. Ambient Temperature: -30...+130oC. Protection: IP65, NEMA4X (housing). :: easy wiring through good accessibility. :: compact design, low weight.
-
Bestellnummer TMT182-
iTEMP TMT182, Head Transmitter HART
Product being phased out, limited availability. Temperature transmitter, Protocol HART. Application: RTD, TC, Ohm, mV. 2-wire 4-20mA, galvanicisolation. Fault reaction: NAMUR NE 43. Mounting: head form B, DIN EN50446. UL listed.
-
-
-
Nr B Bestellnummer TMT82-
iTEMP TMT82, Transmitter HART
2-wire temperature transmitter. Dual universal sensor input. Galvanic isolation 2kV (input/output). Application: RTD, TC, Ohm and mV. ::Highly reliable due to drift detection and sensor back up. ::Optional also for safety critical applications by means of SIL 2/3 acc. to IEC61508.
-
-
-
Bestellnummer FXA195-
Commubox FXA195
Modem to connect HART field devices to a computer via USB. Commissioning of field devices with software tool. :: To connect to a intrinsically safe signal circuit. :: SIL2, IEC61508.
-
Bestellnummer TXU10-
Configuration Kit TXU10
for PC-programmable devices. set-up programme+interface cable for PC with USB-Port.
-
Bestellnummer SFE500-
FieldCare SFE500
FieldCare is a software tool based on FDT/DTM technology. FieldCare is scalable which allows to fulfill tasks from Device Setup, Plant Asset Management or Condition Monitoring (Asset Health Monitoring). FieldCare includes approved Endress+Hauser and third party DTM Libraries and can be used with W@M Life-Cycle Management. Additional hardware e.g. modems, or interfaces is needed. One year update service is included to guarantee top quality and performance. (Online application update or download from Endress+Hauser Software Portal)
-
Bestellnummer DIENST-
Service
-
Bestellnummer FXA42-
Fieldgate FXA42
Compact gateway for data capture of field devices, without antenna. Embedded web server, alarm / event handling. Application: remote monitoring, inventroy data monitoring, web enabled field interface. Field device interfaces 4-20mA, Modbus RTU, digital inputs/outputs. :: Meets NAMUR NE43 requirements. :: Data transition into SupplyCare.
-
Bestellnummer TA30R-
Terminal Head TA30R
Retainer for terminal block or head transmitter + optional display. Cover: screwed, optional window. Material: Stainless Steel 316L. Colour: Steel (no coating). Ambient Temp.: -50...85/130 oC (display/standard). Protection: IP66/68, NEMA4X; IP69K (housing). :: easy wiring through best accessibility. :: compact desing and low weight.
-
-
