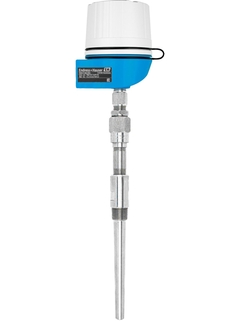

iTHERM ModuLine TM152
Industrial modular thermometer

Specs at a glance

• Accuracy

  Class AA acc. to IEC 60751
  Class A acc. to IEC 60751
  Class B acc. to IEC 60751
  Class special or standard acc. to ASTM E230
  Class 1 or 2 acc. to IEC 60584-2

• Response time

  depending on configuration

• Max. process pressure (static)

  depending on the configuration up to 500 bar

• Operating temperature range

  PT100 TF iTHERM StrongSens:
  -50 °C ...500 °C
  (-58 °F ...932 °F)
  PT100 TF iTHERM QuickSens:
  -50 °C …200 °C
  (-58 °F …392 °F)
  PT100 WW:
  -200 °C ...600 °C
  (-328 °F ...1.112 °F)
  PT100 basic TF:
  -50 °C ...200 °C
  (-58 °F ...392 °F)
  Typ K:
  max. 1.100 °C
  (max. 2.012 °F)
  Typ J:
  max. 800 °C
  (max. 1.472 °F)
  Typ N:
  max. 1.100 °C
  (max. 2.012 °F)

• Max. immersion length on request

  84"
