Capacitance level measurement

Liquipoint FTW23 - Capacitance point level

Simple products
Easy to select, install and operate

Technical excellence

Simplicity

What is FLEX?

Standard products
Reliable, robust and low-maintenance

Technical excellence

Simplicity

What is FLEX?

High-end products
Highly functional and convenient

Technical excellence

Simplicity

What is FLEX?

Specialized products
Designed for demanding applications

Technical excellence

Simplicity

Variable

What is FLEX?

FLEX selections	Technical excellence	Simplicity
F L E X Fundamental selection Meet your basic measurement needs	Technical excellence	Simplicity
F L E X Lean selection Handle your core processes easily	Technical excellence	Simplicity
F L E X Extended selection Optimize your processes with innovative technologies	Technical excellence	Simplicity
F L E X Xpert selection Master your most challenging applications	Technical excellence	Simplicity Variable

Learn more about the FLEX selections

Compare

Capacitance Point level detection Liquipoint FTW23

Cost effective point level switch for water-based liquids

Process temperature Standard:
-20 ... 100°C
Cleaning:
-20 ... 135°C for 1h
-4 ... 275F for 1h

Process pressure / max. overpressure limit Vacuum ... 16 bar
Vacuum ....232 psi

Liquipoint FTW33 - Conductive point level switch

Compare

Conductive Point level detection Liquipoint FTW33

Very compact flush-mounted probe for liquid and pasty media

Process temperature Standard:
-20 ... 100°C
Cleaning:
-20 ... 150°C for 1h
( -4 ... 302°F for 1h)

Process pressure / max. overpressure limit Vacuum ... 25 bar
(Vacuum ... 362,5 psi)

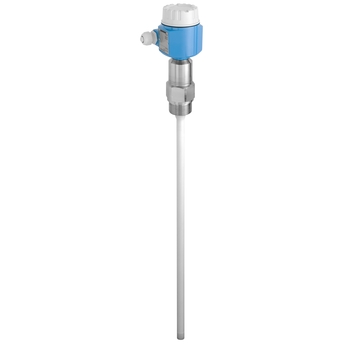

Liquicap FMI51 - Capacitance level measurement

Compare

Capacitance Level measurement Liquicap FMI51

For continuous level and interface measurement in liquids

Accuracy Repeatablity 0,1%

Process temperature -80°C...200°C
-112°F...392°F

Process pressure / max. overpressure limit Vacuum ... 100 bar
(Vaccum ... 1450 psi)

Max. measurement distance 0.1 m ... 4.0 m
(0.3 ft ... 13 ft)

Main wetted parts Insulation material: PTFE,PFA
316L

Liquicap FTI51 - Capacitance point level detection

Compare

Capacitance Point level detection Liquicap FTI51

For liquids that are highly viscous and tend to form build-up

Process temperature -80 °C ... +200 °C
(-112 °F ... +392 °F)

Process pressure / max. overpressure limit Vacuum ... 100 bar
(Vacuum ... 1450 psi)

Liquicap FTI52 - Capacitance point level detection

Compare

Capacitance Point level detection Liquicap FTI52

For liquids that are highly viscous and tend to form build-up - for large measuring ranges

Process temperature -80 °C ... +200 °C
(-112 °F ... +392 °F)

Process pressure / max. overpressure limit Vacuum ... 100 bar
(Vacuum ... 1450 psi)

Solicap FTI55 - Capacitance point level detection

Compare

Capacitance Point level detection Solicap FTI55

Point level detection for fine-grained to coarse-grained bulk solids

Process temperature -50°C ... 180°C
(-58°F ... 356°F)

Process pressure / max. overpressure limit Vacuum ... 25 bar
(Vacuum ... 362 psi)

Solicap FTI56 - Capacitance point level detection

Compare

Capacitance Point level detection Solicap FTI56

Point level detection for fine-grained to coarse-grained bulk solids

Process temperature -50°C ... 180°C
(-58°F ... 356°F)

Process pressure / max. overpressure limit Vacuum ... 25 bar
(Vacuum ... 362 psi)

Solicap FTI77 - Capacitance point level detection

Compare

Capacitance Point level detection Solicap FTI77

Point level detection for bulk solids, especially for high temperatures and strong mechanical loads

Process temperature -50°C ... 400°C
(-58°F ... 752°F)

Process pressure / max. overpressure limit Vacuum ... 10 bar
(Vacuum ... 145 psi)

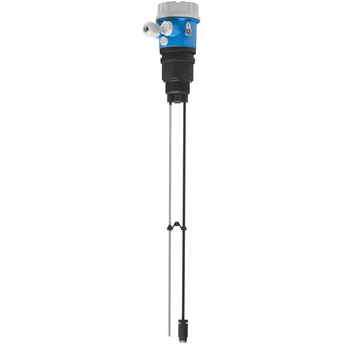

Liquicap FMI21 - Capacitance level measurement

Compare

Capacitance Level measurement Liquicap FMI21

For continuous level measurement in conductive liquids

Accuracy < 1%

Process temperature -40 °C ... 100 °C
(-40 °F ... 212 °F)

Process pressure / max. overpressure limit Vacuum ... 10 bar
(Vacuum ... 145 psi)

Max. measurement distance 2.5 m (8 ft)

Main wetted parts Probe rods:
316L/1.4404 / PP
Option: carbon fibre PP coated

Liquicap FMI52 - Capacitance level measurement

Compare

Capacitance Level measurement Liquicap FMI52

For continuous level and interface measurement in liquids - for large measuring ranges

Accuracy repeatablity 0,1%

Process temperature -80°C...200°C
-112°F...392°F

Process pressure / max. overpressure limit Vacuum ... 100 bar
(Vaccum ... 1450 psi)

Max. measurement distance 0.42 m ... 10.0 m
(1.38 ft ... 33 ft)

Main wetted parts Insulation material: FEP,PFA
316L

Our product finder helps you to search for suitable measuring devices, software or system components via product characteristics. Applicator leads you through an individual product selection via application parameters.

Go to product finder Go to Applicator

About capacitance level measurement

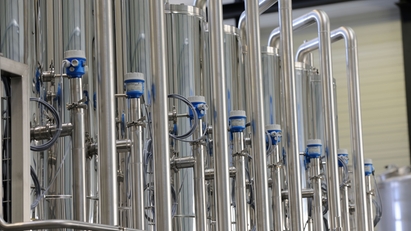

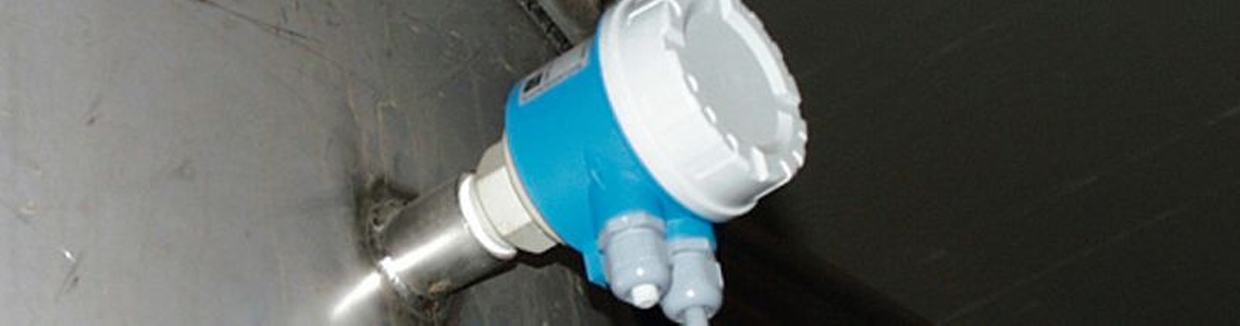

Capacitance level measurement with Liquicap is a simple and cost-effective solution which offers a wealth of possibilities for level monitoring in liquids. Particularly in small tanks and build-up forming media. Point level detection works with Liquicap, Liquipoint, Minicap or Solicap capacitance level switches also in applications involving aggressive media and heavy build-up in liquids and solids. Check out the broad range of capacitance level sensors and click on the button below.

Capacitance level sensors are a proved, as well as cost-effective solution for level measurement and point level detection in liquids and bulk solids. Various transmitters for continuous level measurement and switches for point level detection are available. The measurement of interface is also possible. The measuring principle is proven in millions of applications.

Capacitance measurement: Measuring Principle

The principle of capacitive level measurement is based on the capacitance change of a capacitor. The probe and the tank wall form a capacitor whose capacitance is dependent on the amount of product in the tank: An empty tank has a lower, a filled tank a higher capacitance.

Benefits

Proven and tested measuring principle - robust and safe
Universally adaptable probe
Reliable operation also in strong build-up formation and viscous media
Easy commissioning
