Analog conductivity sensor

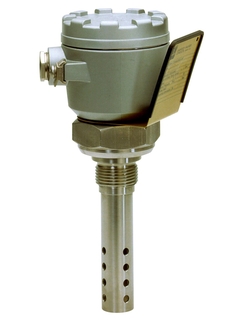

Condumax CLS12

Analog conductivity sensor
Condumax CLS12 ©Endress+Hauser

The conductivity of a liquid can be measured using the conductive or toroidal measuring principles. This video shows what it is about and how these measuring principles work.

Conductive conductivity sensor for high temperature applications in the power & energy industry

Condumax CLS12 is a robust conductivity sensor for steam/water cycles in power plants. It is optimized for low conductivities (even under high temperatures and pressures) to protect your processes from deposits and corrosion. Low maintenance and simple to commission (large connection compartment), this is the ideal sensor for tough environments.

  • Simple products

  • Easy to select, install and operate

Technical excellence

Simplicity

  • Standard products

  • Reliable, robust and low-maintenance

Technical excellence

Simplicity

  • High-end products

  • Highly functional and convenient

Technical excellence

Simplicity

  • Specialized products

  • Designed for demanding applications

Technical excellence

Simplicity

Variable

FLEX selections Technical excellence Simplicity
  • F
  • L
  • E
  • X

Fundamental selection

Meet your basic measurement needs

Technical excellence
Simplicity
  • F
  • L
  • E
  • X

Lean selection

Handle your core processes easily

Technical excellence
Simplicity
  • F
  • L
  • E
  • X

Extended selection

Optimize your processes with innovative technologies

Technical excellence
Simplicity
  • F
  • L
  • E
  • X

Xpert selection

Master your most challenging applications

Technical excellence
Simplicity

Variable

  • Specs at a glance

    • Measurement range

      k=0.01: 0 to 20 µS/cm
      k= 0.1: 0 to 200 µS/cm

    • Process temperature

      -30 to 160 °C (-22 to 320 °F)

    • Process pressure

      Max. 40 bar up to 100 °C (max. 580 psi up to 212 °F) without CLA 751 flow chamber
      Max. 12 bar up to 150 °C (max. 174 psi up to 302 °F) with CLA 751 flow chamber

Quick selection

Choose from our suggested options
  • <%label%>
  • <%feature%>
  • Process Connection
  • <%message%>

or

Individual configuration

Continue your selection from all possible options
  • Benefits

    • Reliable and accurate measuring values at low conductivities

    • Optimized for high pressures and temperatures up to 160°C (320°F)

    • Easy cleaning thanks to stainless steel body and removable outer electrode

    • Robust design for high durability

    • Quality certificate...

  • Field of application

    Condumax CLS12 measures conductivity in the steam/water cycle in the power & energy industry:

    • Condensate monitoring

    • Boiler feedwater monitoring

    • Boiler blowdown control

    The sensor can be used in all low conductivity applications with high temperatures...

Features and specifications

Back

Details

  • Measuring principle

    Conductive

  • Application

    Power plant, condensate, boiler feed water

  • Characteristic

    2-electrode conductivity cell for high temperature applications in pure and ultrapure water

  • Measurement range

    k=0.01: 0 to 20 µS/cm
    k= 0.1: 0 to 200 µS/cm

  • Measuring principle

    Conductive conductivity cell with polished stainless steel electrodes

  • Design

    Large coaxially arranged electrodes for a fast media flow through the cell

  • Material

    Electodes: stainless steel 1.4571
    Sealing: PEEK / EPDM

  • Dimension

    Electrode diameter: 25 mm (0.98 inch)
    Immersion depth: 50 to 115 mm (1.97 to 4.53 inch)

  • Process temperature

    -30 to 160 °C (-22 to 320 °F)

  • Process pressure

    Max. 40 bar up to 100 °C (max. 580 psi up to 212 °F) without CLA 751 flow chamber
    Max. 12 bar up to 150 °C (max. 174 psi up to 302 °F) with CLA 751 flow chamber

  • Temperature sensor

    Integrated Pt100

  • Ex certification

    ATEX

  • Connection

    Process connection : G1" and NPT1" Fixed cable on transmitter

  • Ingres protection

    IP67

  • Additional certifications

    Calibration certification with cellconstant

Documents / Manuals / Software

Accessories / Spare parts

Nr
Order code
Specification
    • Order code 50008946

      Outer sleeve CLS12/13 316 Ti

      Alte Material-Nummer: 111676

    • Order code 50013937

      Flat gasket ring D 33x D 39x 2.0

    • Order code 50047103

      o-ring ID7.59 W2.62 EPDM

    • Order code 50050949

      Isolating waver KWU PE

    • Order code 50050950

      Isolating ring KWU PE

    • Order code 50078647

      O-ring ID 12.37 W 2.62 AD 17.61 EPDM-FDA

    • Order code 50081902

      Calibration solution CLY11-A, 74,0 uS/cm

      500 ml, reference temperature 25oC. Precision solution referred to SRM of NIST. With temp. table for qualified calibration of conductivity measuring systems acc. to ISO

    • Order code 50081903

      Calibration solution CLY11-B,149,6 uS/cm

      500 ml, reference temperature 25oC. Precision solution referred to SRM of NIST. With temp. table for qualified calibration of conductivity measuring systems acc. to ISO.

    • Order code 50081904

      Calibration solution CLY11-C,1,406mS/cm

      500 ml, reference temperature 25oC. Precision solution referred to SRM of NIST. With temp. table for qualified calibration of conductivity measuring systems acc. to ISO

    • Order code 50081905

      Calibration solution CLY11-D,12,64 mS/cm

      500 ml, reference temperature 25oC. Precision solution referred to SRM to NIST. With temp. table for qualified calibration of conductivity measuring systems acc. to ISO

    • Order code 50081906

      Calibration solution CLY11-E,107,00mS/cm

      500 ml, reference temperature 25oC. Precision solution referred to SRM of NIST. With temp. table for qualified calibration of conductivity measuring systems acc. to ISO

    • Order code 50089330

      Electrode components CLS12/13 K=0,1

    • Order code 50089331

      Electrodes-BGR CLS12/13 K=0,01
