Condumax CLS15 is a reliable conductivity sensor for pure and ultrapure water applications.

Analog conductivity sensor
Condumax CLS15

Conductive conductivity sensor for standard applications in pure and ultrapure water

CLS15
Loading price
Prices temporarily unavailable
Price on request
activating price
price: provide information
from CHF ??.-

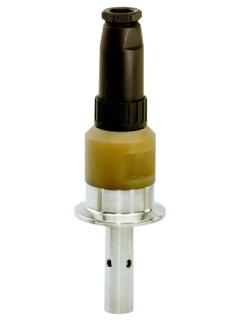

Analog conductivity sensor Condumax CLS15 ©Endress+Hauser

Specs at a glance

  • Measurement range

    k=0,01: 0-20 µS/cm
    k=0,1: 0-200 µS/cm

  • Process temperature

    max. 130°C (150°C / 30 min.)
    (max. 266°F (302°F/30 min.)

  • Process pressure

    max. 12 bar at 20°C
    (174 psi at 68°F)

Field of application

Condumax CLS15 is the ideal choice for conductivity measurement in low measuring ranges. It performs reliably and accurately in a wide range of applications - even in hazardous areas. Designed for low maintenance and a long operating life, the sensor offers real value for money.

Condumax CLS15 measures conductivity in pure and ultrapure water applications for the monitoring and control of:

  • Ion exchangers

  • Reverse osmosis

  • Cooling water

  • Distillation

  • Chip cleaning

The sensor can be used in power plants for:

  • Degassed conductivity

  • pH measurement with differential conductivity

With its international explosion protection approvals, such as ATEX and FM, the sensor is suitable for hazardous area use.

Benefits

  • Reliable and accurate measuring values at low conductivities

  • Easy to clean thanks to polished measuring surfaces

  • Sterilizable

  • Robust design for high durability

  • Different cell constants provide a wide measuring range

  • Quality certificate stating the individual cell constant

Videos

  • The conductivity of a liquid can be measured using the conductive or toroidal measuring principles. This video shows what it is about and how these measuring principles work.
