Minicap FTC260 - Capacitance point level detection

Capacitance
Point level detection
Minicap FTC260

Designed for light bulk solids

FTC260
Loading price
Prices temporarily unavailable
Price on request
activating price
price: provide information
from CHF ??.-

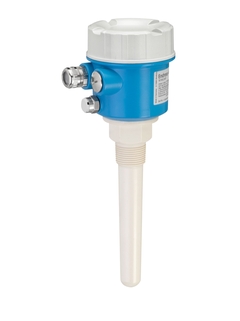

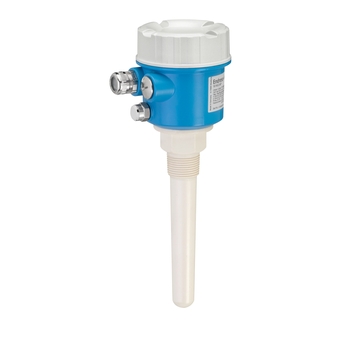

Minicap FTC260 plastic housing
  • F
  • L
  • E
  • X
©Endress+Hauser

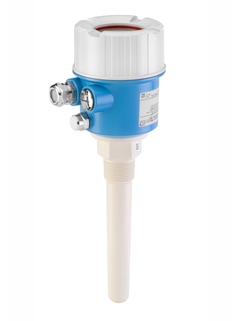

Minicap FTC260 aluminium housing
  • F
  • L
  • E
  • X
©Endress+Hauser

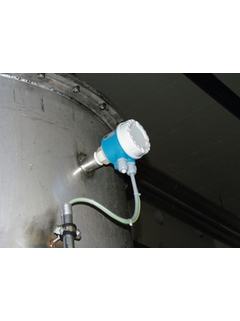

Minicap FTC260 application
  • F
  • L
  • E
  • X
©Endress+Hauser

Specs at a glance

  • Process temperature

    -40 °C ... 120°C
    (-40 °F ... 248 °F)

  • Process pressure / max. overpressure limit

    -1 ... 25 bar
    (-14.5 ... 360 psi)

Field of application

Minicap FTC260 is a simple and cost-effective rod probe for point level detection in bulk solids, particularly suited to applications involving aggressive media and heavy build-up. It is designed for point level detection of light bulk solids, e.g. grain products, flour, milk powder, animal feed, cement, chalk or gypsum.

For point level detection of light bulk solids, with a grain size up to max. 30mm and a dielectric constant εr ≥ 1.6.
Typical applications: Grain products, flour, milk powder, animal feed, cement, chalk or gypsum.

  • Process connection: Threads

  • Temperature: -40 to +80°C (-40 to +176°F)

  • Pressure: -1 to +25bar (-14.5 to +360psi)

  • Sensor length: 140mm (5.51")

  • International explosion protection certificates, overfill prevention WHG

Benefits

  • Simple mounting and commissioning without calibration

  • Mechanical safety, cost-efficiency and long operating life due to no wearing parts

  • High operational safety and reliability due to active build-up compensation
