CPA474 retractable assembly is designed for harsh chemical applications.

Manual or automatic retractable assembly Cleanfit CPA474

Assembly with ball valve for chemical and industrial wastewater applications

CPA474
Loading price
Prices temporarily unavailable
Price on request
activating price
price: provide information
from CHF ??.-

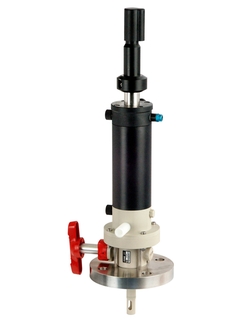

CPA474 retractable assembly is designed for harsh chemical applications. ©Endress+Hauser

Specs at a glance

  • Process temperature

    PA version: max. 80 °C (max. 176 °F)
    Stainless steel pressure cylinder: max. 120 °C (248 °F)

  • Process pressure

    PA pressure cylinder: max. 6 bar (87 psi)
    Stainless steel pressure cylinder: max. 10 bar (145 psi) at 40 °C (104 °F)

Field of application

The Cleanfit CPA474 retractable assembly is designed for applications which require safe separation from the process and contain media that could affect stainless steel. It offers highest operating comfort: You can replace sensors and even service the assembly while the process is running. The optional electric or pneumatic control system enables automated cleaning and calibration even in difficult processes.

Cleanfit CPA474 is intended for use in tanks and pipes in:

  • Chemical industry

  • Wastewater / industrial water

  • Power plants

  • Refuse incinerators

It is suitable to be used with pressures of up to 10 bar (stainless steel cylinder) or 6 bar (PA cylinder).

Benefits

  • Safe and reliable separation from the process by ball valve, even under harsh conditions

  • Suitable for corrosive media: Only polymers (PP, PVDF, PEEK) in contact with medium

  • No process interruption for electrode cleaning and calibration – saves maintenance time and costs

  • Extended operating life of electrodes due to automatic cleaning

  • Flexible adaptation to all applications by great variety of materials and process connections
