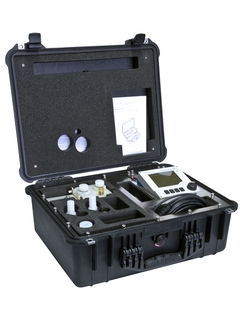

Calibration tool for conductivity sensors
Conducal CLY421

©Endress+Hauser

Portable reference calibration for ultrapure water applications

Conducal CLY421 is the ideal calibration tool for conductivity measuring devices in ultrapure water applications. It offers certified comparison measurement and full traceability of your instruments' verification and calibration. Furthermore, the tool is fully compliant with the requirements of the pharmaceutical industry. Conducal comes in a robust, portable hard-top case with battery-powered Liquiline transmitter, allowing flexible calibration in the field.

  • Simple products

  • Easy to select, install and operate

Technical excellence

Simplicity

  • Standard products

  • Reliable, robust and low-maintenance

Technical excellence

Simplicity

  • High-end products

  • Highly functional and convenient

Technical excellence

Simplicity

  • Specialized products

  • Designed for demanding applications

Technical excellence

Simplicity

Variable

FLEX selections Technical excellence Simplicity
  • F
  • L
  • E
  • X

Fundamental selection

Meet your basic measurement needs

Technical excellence
Simplicity
  • F
  • L
  • E
  • X

Lean selection

Handle your core processes easily

Technical excellence
Simplicity
  • F
  • L
  • E
  • X

Extended selection

Optimize your processes with innovative technologies

Technical excellence
Simplicity
  • F
  • L
  • E
  • X

Xpert selection

Master your most challenging applications

Technical excellence
Simplicity

Variable

Quick selection

Choose from our suggested options
Sales price
    -- selected coding
    -- selected label
    99.999,00
    <%label%>
    -- selected coding
    -- selected label
    99.999,00
    <%feature%>
  • Process Connection
      <%label%>
      99.999,00
      <%label%>
      99.999,00

  • <%message%>

CLY421
Show details Hide details
Show details
Back to Quick Selection
  • <%feature%>
    <%coding%>
    <%label%>
pc
Loading price
Prices temporarily unavailable
from CHF 803.-
  • Optional add-ons
Please use the individual configurator to continue
or

Individual configuration

Continue your selection from all possible options

  • Benefits

    • Factory calibration traceable to standard reference material by NIST and DAkkS

    • Factory calibration of Conducal according to ASTM D-5391

    • Flow assembly with adjusting and monitoring functions according to ASTM D-5391

    • Accurate calibration by direct use of...

  • Field of application

    Conducal CLY421 is a portable calibration and verification tool for quality-relevant conductivity measurements. It is suitable for all ultrapure water applications up to 20 µS/cm:

    • Life science industry

    • Food industry

    • Semiconductor industry

    Its...

Features and specifications

Back

Details

  • Measuring principle

    Conductive

  • Application

    Calibration of conductivity measuring loops in ultra-pure water applications in the pharmaindustry; calibration of quality-relevant process measurements in the ultra-pure water range up to 20µS/cm

  • Characteristic

    factory calibrated measuring case with certificate for comparison measurement in ultra-pure water up to 20µS/cm

  • Measurement range

    0,04µS/cm - 20µS/cm

  • Measuring principle

    conductiv conductivity measurement

  • Design

    compact case includes factory calibrated conductivity loop and flow-through assembly

  • Material

    case : injection molded high performance resin

    Conductivity sensor CLS15D: SS 316 L, PES-GF20

    flow-through assembly: PVDF

  • Dimension

    20.9" x 17.4" x 8.5"

  • Process temperature

    0.. 100C
    32 .. 210F

  • Process pressure

    87 psi

  • Ingres protection

    IP67 at closed case without power cord

  • Additional certifications

    factory calibration certificate according ASTM 5391-93, traceable to SRM from NIST and DaakS

Documents / Manuals / Software

Accessories / Spare parts

Nr
Order code
Specification
    • Order code

      For further repair or spare part inquiries

    • Order code

      please contact your local

    • Order code

      E+H Sales- and serviceorganisation

    • Order code 71148156

      Kit CLY421: Flow Chamber

    • Order code 71148157

      Kit CLY421: Adapter Threaded/Clamp/Barb

    • Order code 71148158

      Kit CLY421: Adapter G1"/Clamp

    • Order code 71148159

      Kit CLY421: 3x Blind Cap + 10x O-Ring

    • Order code 71148160

      Kit CLY421: 3x Clamp Gasket EPDM DN20

    • Order code 71148161

      Kit CLY421: 4x Protection Covers Bulgin

    • Order code 71195437

      Kit CLY421: Charger for Li-Ion Battery

    • Order code CYA21-

      Flowfit CYA21

      Stainless steel flow-through assembly for mounting on analytical panels. Construction of analytical panels for applications within powerplants and the (petro-) chemical industry among others. Fits for applications up to 100oC at 16 bar. Robust stainless steel assembly; fit for applications at higher pressure and temperature rates; perfect for bypass installations; inclusive mounting kit.
