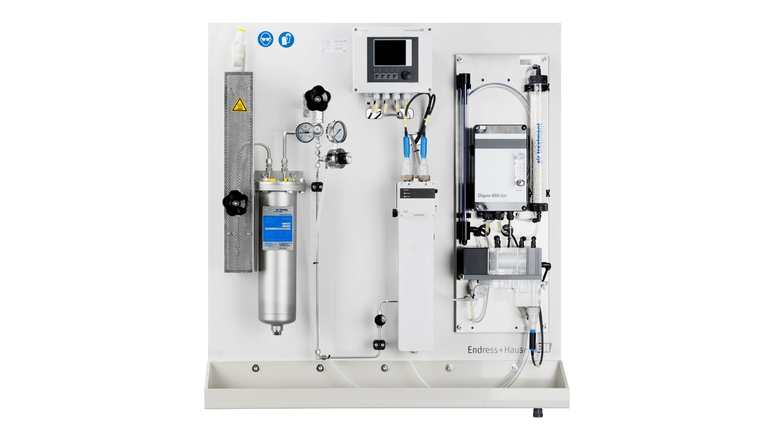

Steam and water analysis system (SWAS) for power plants


With steam and water analysis systems from Endress+Hauser, you can rely on proven, high-tech solutions from one single source for your power plant. State-of-the-art analysis instrumentation, that fit your requirements exactly and make your work easier with less maintenance effort. Contact our experienced engineers and you will receive a turnkey solution that you only need to connect to your electrical and communication connection and you are ready to go.

• Show less

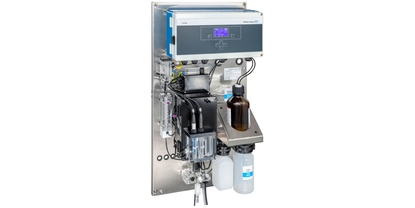

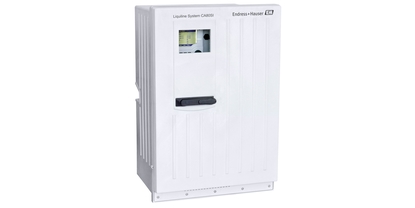

• Water analysis of all critical parameters such as pH/ORP, dissolved oxygen, conductivity (total, cationic/acid, degassed and differential), turbidity, sodium, silicate, ammonium, TOC. Additional parameters and third party sensors on demand.

• Sample preparation with temperature and pressure reduction system up to 320 bar and 575°C.


• Measurement of up to eight parameters with one user-friendly Liquiline transmitter.


• ATEX Portfolio on demand.


• Integrated pH value calculation using differential conductivity.

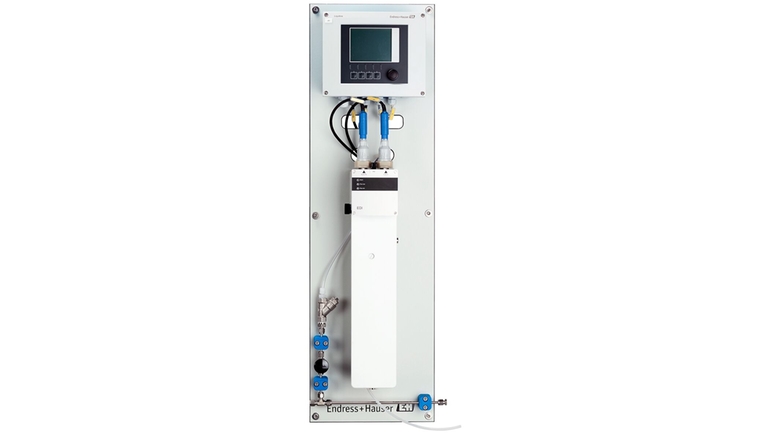

• Cost-effective cation exchanger with calculation of the remaining cation exchange capacity or: Electro-deionization cation (EDI) exchanger without the need for exchanging the resin.

• Digital flow monitoring for each sensor assembly: signal when no sample is available.

• Grap sample valve as option.

• Automatic system shutdown if condensate temperature exceeds safety limits.

• Space-saving SWAS Compact system for applications up to 50 bar and 240 °C, with sample cooler and measurement of up to 4 parameters (pH/ORP, dissolved oxygen, total, cationic and differential conductivity), all integrated into one compact assembly.

• Show less

• Consulting

• Project management

• Factory acceptance test (FAT)

• Site acceptance test (SAT)

• Certification (CE)

• Commissioning by experienced Endress+Hauser service engineers

• Worldwide installation, maintenance, and service from a single source
