This protection tube is well fitted with an integrated compression fitting, suitable for different industrial applications including even hygienic applications. By default, it is fitted onto pipes and vessels or tanks where attachment to the process can be threaded or welded. Due to its construction various types of temperature probes, such as compact thermometers as well as assemblies without a protection tube or cable probes, generally with an probe diameter of 6 mm, can be applied.

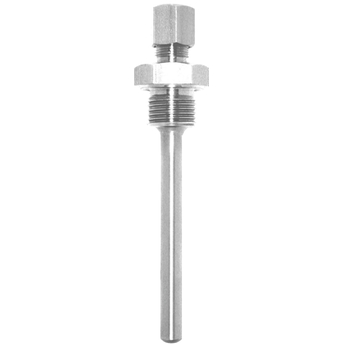

TW251 is a tube well fitted with an integrated compression fitting, suitable for different industrial applications including hygienic applications.
Benefits
The compression fitting allows for the replacement of the faulty probes without having to suspend the process underway
Different process connections can be selected as standard within the sales structure: Threaded (G ½", G ¼", NPT ½", ...); Weld-in (cylindrical, spheric)
Sleeves for the compression fitting available in PTFE or SS 316
The 3.1.B material certificate (according to standard EN 10204), is selectable directly from the sale structure of the product
Since the temperature of compressed hydrogen increases with expansion during filling, temperature measurement is essential at hydrogen filling stations for safety reasons.
Our non-invasive thermometer can be easily retrofitted to the existing pipe and integrated into the control system to enable efficient stand-by operation of a turboset.
The Ziegler-Natta process uses hazardous chemicals like titanium tetrachloride. Precise temperature measurement is crucial to prevent runaway reactions and ensure safety and efficiency.
Thermowell for temperature sensors
omnigrad TW251
Thermowell for general applications
Integrated compression fitting
Threaded or weld-in process connection
Thermowell for temperature sensors omnigrad TW251 Thermowell for general applications Integrated compression fitting Threaded or weld-in process connection
