Specs at a glance
Max. process pressure (static)
Maximum standard immersion length
Max. immersion length on request
Field of application
Due to the challenging process conditions by heavy duty applications the load capacity of a thermowell must be calculated exactly. Dye penetration tests, ultrasound test, helium leakage test, pressure endurance test as well as various, non-destructive material tests prove the quality of materials and processing.

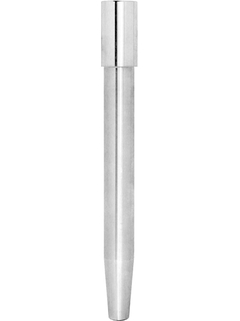

TA571 is designed for use with resistance and thermocouple thermometers mainly in heavy duty applications.
Benefits
The extension, the immersion and the tapering lengths as well as the bar dimensions can be chosen according to process requirements
A wide choice of standard materials is available; other versions can be ordered according to specification
Different grades of surface finishing are also available
The process connection is welded. The thermowell stem shape can be straight with a conical tip shape
Lean selection
Standard products
Reliable, robust and low-maintenance
