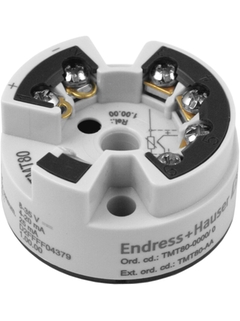

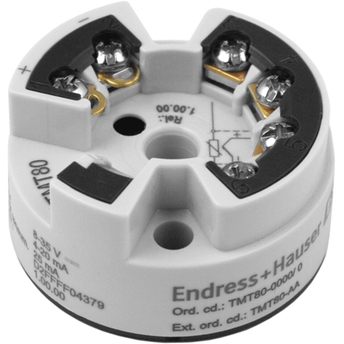

Product picture temperature head transmitter iTEMP TMT80

iTEMP TMT80
Temperature head transmitter

Transformation of the sensor signals into stable and standardized output signal for all industries

TMT80

Compare

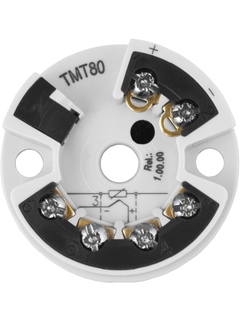

Product picture temperature head transmitter iTEMP TMT80 with terminal assignment

Specs at a glance

Accuracy

(Pt100, -50...250 °C) <= 0,5 K
(Pt100, -58...482 °F) <= 0,9 °F

See all specifications

Field of application

This transmitter is configurable and supports both selected resistance sensor types and thermocouples. In order to obtain the highest measurement precision, linearization characteristics for every type of sensor are stored in the transmitter.
The standardized output signal used for process measurement is a 4 to 20 mA signal. This offers fast, easy and cost-saving temperature measuring and reliable measurement values for a wide range of non-ex industry applications.

PC programmable (PCP) temperature head transmitter for converting various input signals into a scalable 4 to 20 mA analog output signal
Suitable for resistance thermometer (RTD) and thermocouple (TC)
Device configuration using PC with configuration kit and PC software ReadWin 2000

Benefits

2-wire technology, 4 to 20 mA analog output
Fault signal on sensor break or short circuit,
presettable to NAMUR NE 43
Meets the EMC requirements as per NAMUR NE 21
Galvanic isolation 500 V (input/output)
Application specific measuring range setting
