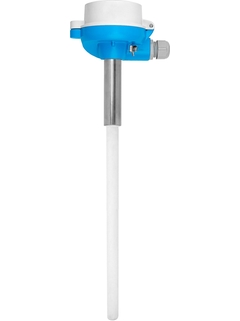

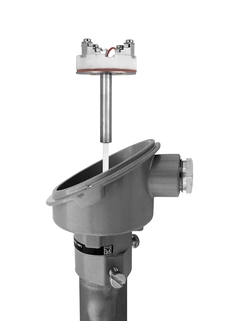

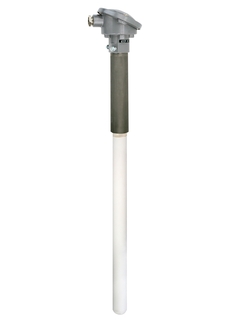

Omnigrad S TAF12T
High temperature TC thermometer

Applicable for ceramic baking ovens, brickworks, porcelain production and glass industries

  • Omnigrad S TAF12T
High temperature TC thermometer ©Endress+Hauser
  • Omnigrad S TAF12T
High temperature TC thermometer ©Endress+Hauser
  • Omnigrad S TAF12T
High temperature TC thermometer ©Endress+Hauser

Measuring points with extremely high process temperatures require these thermometers with ceramic thermowells and special metal thermocouples, such as platinum and rhodium. The thermowell as well as the intermediate and internal sheath of ceramic materials protects from mechanical and chemical damages in the process and increases the life span of the sensors. This leads to: Cost savings for maintenance of the measuring point, quality improvements of the products and increased plant safety.

Benefits

  • Long lifetime by usage of innovative thermowell materials with increased wear and chemical resistance

  • Long term stable measurement due to sensor protection with non-porous materials

  • Flexible product selection by modular design

  • Optimized life cycle costs by means of replaceable spare parts

Field of application

  • The TAF12T are assemblies with triple ceramic protection tubes, designed specifically for applications such as ceramic baking ovens, brickworks, porcelain production and glass industries. They contain a single or double TC insert in ceramic insulators.

  • Process temperatures: up to +1700 °C (+3092 °F)
