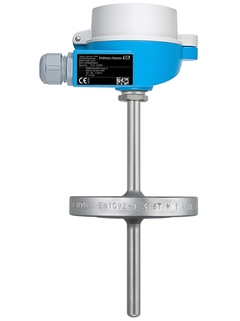

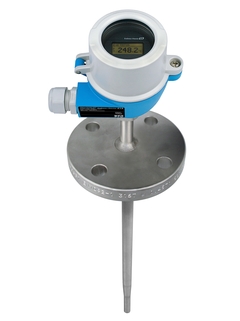

TR13
Modular RTD thermometer

Comprehensive and common temperature measurement technology for almost all branches of industry

The high modular and robust thermometer finds its use in several applications in almost all industries. An optional head transmitter, with all common communication protocols, makes the device ready to use with enhanced measurement accuracy and reliability compared to directly wired sensors. A variety of process connections, dimensions and materials offer flexible application possibilities.

Simple products
Easy to select, install and operate

Technical excellence

Simplicity

What is FLEX?

Standard products
Reliable, robust and low-maintenance

Technical excellence

Simplicity

What is FLEX?

High-end products
Highly functional and convenient

Technical excellence

Simplicity

What is FLEX?

Specialized products
Designed for demanding applications

Technical excellence

Simplicity

Variable

What is FLEX?

FLEX selections	Technical excellence	Simplicity
F L E X Fundamental selection Meet your basic measurement needs	Technical excellence	Simplicity
F L E X Lean selection Handle your core processes easily	Technical excellence	Simplicity
F L E X Extended selection Optimize your processes with innovative technologies	Technical excellence	Simplicity
F L E X Xpert selection Master your most challenging applications	Technical excellence	Simplicity Variable

Learn more about the FLEX selections

Sizing

Compare

Specs at a glance
Accuracy

class A acc. to IEC 60751
class AA acc. to IEC 60751

Response time

depending on configuration

Max. process pressure (static)

at 20 °C: 50 bar (725 psi)

Operating temperature range

PT100 TF StrongSens:
-50 °C ...500 °C
(-58 °F ...932 °F)
PT100 WW:
-200 °C ...600 °C
(-328 °F ...1.112 °F)
PT100 TF:
-50 °C ...400 °C
(-58 °F ...752 °F)

Max. immersion length on request

up to 10.000,00 mm (393,70'')

Quick selection

Choose from our suggested options

Sales price

<%label%>
-- selected coding

-- selected label

99.999,00
<%label%>
Looking for more options? Please use the individual configurator to continue
<%feature%>
-- selected coding

-- selected label

99.999,00
<%feature%>
<%coding%>

<%label%>

99.999,00

Looking for more options? Please use the individual configurator to continue
Process Connection
<%coding%>

<%label%>

99.999,00

<%coding%>

<%label%>

99.999,00

<%message%>

TR13

Show details Hide details

Show details

Back to Quick Selection

<%feature%>

<%coding%>

<%label%>

Add to Cart

Optional add-ons

Please use the individual configurator to continue

Individual configuration

Continue your selection from all possible options

Configure

Additional components

RN221N
Active barrier with optional HART® diagnosis

Active barrier with power supply for safe separation of 4...20 mA current circuits
More information
Compare
Loading price

Prices temporarily unavailable

Price after login

from CHF 803.-
F

L

E

X
RIA15
Loop-powered indicator for 4 to 20 mA or HART signals

For the indication of the 4 to 20 mA signal or the HART® values in the field or in the panel!
More information
Compare
Loading price

Prices temporarily unavailable

Price after login

from CHF 803.-
F

L

E

X
RMA42
Process transmitter with control unit

Universal transmitter, loop power supply, barrier and limit switch in one device!
More information
Compare
Loading price

Prices temporarily unavailable

Price after login

from CHF 803.-
F

L

E

X
HAW569
Surge arresters

Surge arresters for field mounting
More information
Compare
Loading price

Prices temporarily unavailable

Price after login

from CHF 803.-
F

L

E

X
RIA16

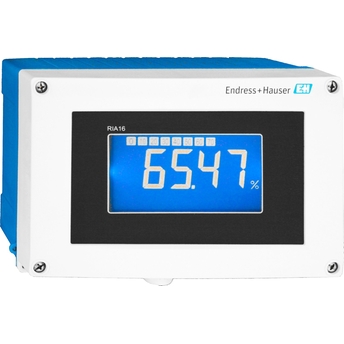

Loop-powered indicator

Excellently readable indication of 4…20 mA signal with trend bar graph for a better process overview
More information
Compare
Loading price

Prices temporarily unavailable

Price after login

from CHF 803.-

Benefits
High degree of flexibility thanks to modular design with standard terminal heads as per DIN EN 50446 and customer-specific immersion lengths
High degree of insert compatibility and design as per DIN 43772
Extension neck to protect the head transmitter...

Show more
High degree of flexibility thanks to modular design with standard terminal heads as per DIN EN 50446 and customer-specific immersion lengths
High degree of insert compatibility and design as per DIN 43772
Extension neck to protect the head transmitter from overheating
Fast response time with reduced/tapered tip form
Types of protection for use in hazardous locations: Intrinsic safety (Ex ia), non-sparking (Ex nA)
Head transmitter with easy selection: Analog output 4 to 20 mA, HART®, PROFIBUS® PA or FOUNDATION Fieldbus™

Show less

Field of application
Universal range of application

Measuring range: -200 to +600 °C (-328 to 1112 °F)

Pressure range up to 100 bar (1450 psi)

Degree of protection: up to IP68

Features and specifications

Back

Details

Measuring principle

Resistance Temperature Detector
Characteristic / Application

metric style

modular temperature assembly

universal range of application

suitable for hazardous areas

flanged process connection

with neck

incl. thermowell / protection tube (metal)

usable with insert StrongSens
Thermowell / protection tube

welded protection tube
Insert / probe

mineral insulated (MI), flexible
Outer diameter protection tube / Insert

9,0 mm (0,35'')

11,0 mm (0,43'')

12,0 mm (0,47'')

14,0 mm (0,55")

15,0 mm (0,59")
Max. immersion length on request

up to 10.000,00 mm (393,70'')
Material protection tube/ thermowell

1.4404 (316L)

1.4571 (316Ti)

Alloy C276 (2.4819)

Alloy 600 (2.4816)
Optional coating

Tantal

PTFE Teflon

PVDF
Process connection

flange:

DN15 PN40 B1 (EN1092)

DN15 PN40 C (EN1092)

DN25 PN20 B1 (EN1092)

DN25 PN40 C (EN1092)

DN25 PN50 B1 (EN1092)

DN25 PN100 B2 (EN1092)

DN40 PN40 B1(EN1092)

DN50 PN40 B1 (EN1092)

ASME 1" 150 RF (B16.5)

ASME 1" 300 RF (B16.5)
Tip shape

straight

reduced

tapered
Surface roughness Ra

1,6 μm (63,0 μin.)
Operating temperature range

PT100 TF StrongSens:

-50 °C ...500 °C

(-58 °F ...932 °F)

PT100 WW:

-200 °C ...600 °C

(-328 °F ...1.112 °F)

PT100 TF:

-50 °C ...400 °C

(-58 °F ...752 °F)
Max. process pressure (static)

at 20 °C: 50 bar (725 psi)
Accuracy

class A acc. to IEC 60751

class AA acc. to IEC 60751
Response time

depending on configuration
Integration head transmitter

yes (4 … 20 mA; HART; PROFIBUS PA; FOUNDATION FIELDBUS)
Ex - approvals

ATEX II

ATEX IECEx

NEPSI

IECEx

EAC Ex
Certification

Gost Metrology

SIL (transmitter only)

Show more
Show less
