Tankvision NXA820 - Inventory management

Tankvision
Inventory management
Tank Scanner NXA820

Acquires data from field instruments

NXA820
Loading price
Prices temporarily unavailable
Price on request
activating price
price: provide information
from CHF ??.-
Tankvision NXA820
  • F
  • L
  • E
  • X
©Endress+Hauser

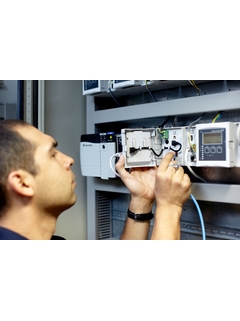

Tankvision NXA820 application
  • F
  • L
  • E
  • X
©Endress+Hauser

Specs at a glance

  • Input

    Modbus RS485; V1; WM550

  • Output

    Ethernet; OPC DA Server (installed on a separate PC)

Field of application

The Tank Scanner NXA820 scans parameters from tank gauges and performs tank calculations as one part of Tankvision. Tankvision is a tank inventory system which is operated by a standard web browser and does not require proprietary software or licensing costs. Tankvision is based on a distributed architecture on a local area network (LAN). Due to its modular structure it is ideally suited for small tank farms with only a couple of tanks, but also for large refineries with hundreds of tanks.

Scans parameters from tank gauges and performs tank calculations. Suited for small tank farms with only a couple of tanks, but also for large refineries with hundreds of tanks.

  • Ambient temperature: -40 to +60°C (-40 to +140°F)

  • Approved for custody transfer applications according to NMi and PTB

Benefits

  • A robust industrial operating system with embedded software ensures high stability and availability

  • Approved for custody transfer applications according to NMi and PTB

  • Modular design; easily adjustable to any application; can be upgraded as required

  • Configuration, commissioning and operation via web browser; no proprietary software required

  • Access for up to 10 users per Tankvision component from any connected PC - license free

  • Predefined or customized operator screens for typical operation of a tank farm

  • Common hardware platform for all components; no hard disc or fans - no wearout
