Sample preparation
Liquiline System CAT860

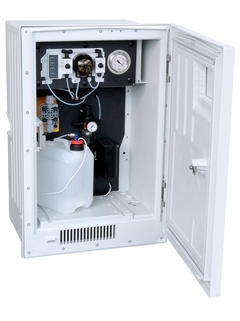

Liquiline System CAT860- Sample preparation system for demanding applications ©Endress+Hauser
Liquiline System CAT860- Sampling system with chemical cleaning for demanding applications ©Endress+Hauser
  • Liquiline System CAT860- Sample preparation system for demanding applications
  • Liquiline System CAT860- Sampling system with chemical cleaning for demanding applications

Robust in-situ filtration system for sampling from inlets of wastewater treatment plants

Liquiline System CAT860 provides clear, bacteria-free samples directly from the inlet of municipal and industrial wastewater treatment plants. Its ceramic filter is suitable even for applications with high loads of fat or fibers. Easy cleaning of the special membrane surface and tool-free maintenance reduce your operating costs. The Memosens technology simplifies commissioning and supports predictive maintenance. CAT860 and the versatile Flexdip holder facilitate the adaption to your process.

  • Simple products

  • Easy to select, install and operate

Technical excellence

Simplicity

  • Standard products

  • Reliable, robust and low-maintenance

Technical excellence

Simplicity

  • High-end products

  • Highly functional and convenient

Technical excellence

Simplicity

  • Specialized products

  • Designed for demanding applications

Technical excellence

Simplicity

Variable

FLEX selections Technical excellence Simplicity
  • F
  • L
  • E
  • X

Fundamental selection

Meet your basic measurement needs

Technical excellence
Simplicity
  • F
  • L
  • E
  • X

Lean selection

Handle your core processes easily

Technical excellence
Simplicity
  • F
  • L
  • E
  • X

Extended selection

Optimize your processes with innovative technologies

Technical excellence
Simplicity
  • F
  • L
  • E
  • X

Xpert selection

Master your most challenging applications

Technical excellence
Simplicity

Variable

  • Specs at a glance

    • Process temperature

      4 to 40 °C (39 to 104 °F)

    • Process pressure

      Unpressurized

Quick selection

Choose from our suggested options
Sales price
    -- selected coding
    -- selected label
    99.999,00
    <%label%>
    -- selected coding
    -- selected label
    99.999,00
    <%feature%>
  • Process Connection
      <%label%>
      99.999,00
      <%label%>
      99.999,00

  • <%message%>

CAT860
Show details Hide details
Show details
Back to Quick Selection
  • <%feature%>
    <%coding%>
    <%label%>
pc
Loading price
Prices temporarily unavailable
from CHF 803.-
  • Optional add-ons
Please use the individual configurator to continue
or

Individual configuration

Continue your selection from all possible options

Additional components

  • Benefits

    • Fast commissioning and plug & play thanks to Memosens technology and user-friendly Liquiline operating concept

    • Cost-effective through tool-free maintenance and easy replacement of filter elements

    • Advanced diagnostics with remote access for increased...

  • Field of application

    Liquiline System CAT860 is designed for municipal and industrial wastewater plants:

    • Inlet sampling points

    • Aeration basins

Features and specifications

Back

Details

  • Measuring principle

    Colorimetric

  • Characteristic

    Automatic sample preparation system for supplying process measuring devices with filtered samples

  • Size

    793 x 530 x 463 mm
    31.22 x 20.87 x 18.23 in
    (h x w x d)

  • Design

    Back-flush filter system with various filter mounting options: float, chain and immersion pipe
    Full compatibility to holder CYH112

  • Process temperature

    4 to 40 °C (39 to 104 °F)

  • Ambient temperature

    Unheated: 5 to 50 °C (41 to 122 °F)
    Heated: -20 to 50 °C (-4 to 122 °F)

  • Process pressure

    Unpressurized

  • Specials

    Back-flush function with cleaner and pressurizd air
    Controlling and parametrization via Liquiline System CA80 with detailed diagnostic function

  • Application

    Sampling from inlet of municipal and industrial wastewater treatment plants. Sampling of aqueous media from industrial processes.

  • Power supply

    100 to 120/200 to 240 V AC 10%, 50/60 Hz

  • Consumables

    Cleaner CY820 for filter and hoses
