Immersion assembly

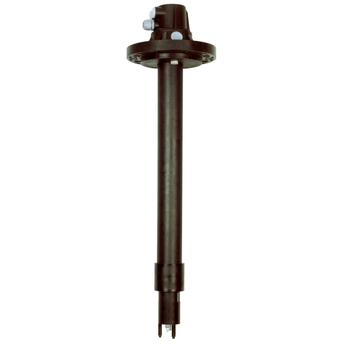

Dipfit CPA111
Universal assembly for the water and wastewater industry
The Dipfit CPA111 immersion assembly is designed for applications in open and closed tanks. It offers space for three sensors that can be easily mounted and removed via the bayonet lock. The adjustable flange gives you the required flexibility for universal use. Dipfit is the time- and cost-efficient solution for standard water and wastewater treatment.
-
Standard products
- Reliable, robust and low-maintenance
Technical excellence
Simplicity
-
Specialized products
- Designed for demanding applications
Technical excellence
Simplicity
Variable
FLEX selections | Technical excellence | Simplicity |
---|---|---|
Fundamental selection Meet your basic measurement needs |
Technical excellence
|
Simplicity
|
Lean selection Handle your core processes easily |
Technical excellence
|
Simplicity
|
Extended selection Optimize your processes with innovative technologies |
Technical excellence
|
Simplicity
|
Xpert selection Master your most challenging applications |
Technical excellence
|
Simplicity
Variable |
-
Specs at a glance
-
Process temperature
max. 80°C
( 176°F) -
Process pressure
max. 4 bar at 20°C
(58 psi at 68°F)
-
Quick selection
Individual configuration
-
Benefits
Simple installation and removal of electrode holder due to bayonet lock
Flexible immersion depth thanks to adjustable flange
Reduces installation effort by providing 3 mounting positions for 120 mm sensors or an optional cleaning unit
Made of...
-
Field of application
Dipfit CPA111 is intended for universal use in open basins, channels and closed tanks in:
Wastewater
Water treatment
It is suitable for use with pressures of up to 4 bar.
Documents / Manuals / Software
-
Technical Information CPA 111
Immersion assembly
Technical Information (TI) -
Dipfit CPA111
Operating Instructions
Immersion and installation assembly for pH/ORP measurement
Operating Instruction (BA) -
Mounting instruction for pendoulous suspension of assemblies
Special Documentation
Pendulumverse/Pendulum Frame
for pendulous suspension of assemblies
CPA111,CLA111,CPA510, CYA611Special Documentation (SD) -
pH 測定セレクションガイド
産業プロセスにおける pH 測定
Competence Brochure (CP)08/15Japanese -
CP00010C pH measurement in industrial processes for US market
Selection and engineering guide for your industry and application
Competence Brochure (CP)04/15English -
Measurement and control aspect of pH using inductively coupled with
bidirectional Memosens technology in flue gas desulfurization process
White Paper CP971C pH measurement and control in a power utility is an
integral part of process. The scrubber efficiency is highlydependent on
the pH. Numerous opportunities were revealed for saving time, as well as
the cost and materials in power plants. In afossil fuel power plant,
the
chemical energy stored in coal, oil, natural gas, shale oil, oxygen and
air
is converted into thermal, mechanical and finally into electrical
energy. In
other words, water is heated to steam, which spins a steam turbine. The
steam turbine drives an electrical generator.Competence Brochure (CP)04/11English -
pH-Messung in Industrieprozessen
Auswahl- und Engineering-Hilfe für verschiedene Industriebranchen und
ApplikationenCompetence Brochure (CP)03/20German -
pH measurement in industrial processes
Selection and engineering guide for different industries and
applicationsCompetence Brochure (CP)02/20English -
CP01202C pH Sensors:Calibrate, clean, perform a calibration check
or...?
This white paper will address
Knowing when to do a pH sensor calibration versus a calibration
check
How to properly clean a pH sensor
How to perform a pH sensor calibration
A decision tree for step by step guidanceCompetence Brochure (CP)02/12English -
Reduced maintenance effort, enhanced saftey in gold mine
Reduced maintenance effort, enhanced saftey:
Memosens CPS47D measures pH value in cyanide leachingCase Studies (CS)04/20English -
Un effort de maintenance réduit, une sécurité accrue
Memosens CPS47D dans le lessivage du cyanure dans une mine d’or
Case Studies (CS)04/20fr -
Dipfit W CPA111
Eintaucharmatur mit Hängebügel zur Aufnahme der pH-Messelektrode
Tender Text10/09German -
Dipfit-W CPA111
1 Immersion assembly with suspension bracket to hold the pH measuring
electrodeTender Text09/05English
Accessories / Spare parts
-
-
Order code 50091993
o-ring set EPDM
-
Order code 50072145
O-ring set Viton for CPA111
-
Order code 71467082
Kit CPA111 Sealing set EPDM
-
Order code 71467083
Kit CPA111 Sealing set FKM
-
Order code 51500400
Kit CXA111/140 cover complete
-
Order code 50008996
Locking screw PG16 for CPA111
-
Order code 50009067
-
Order code 50090683
cable gland PG13 red.
-
Order code 50090245
Pressure compensation plug for CPA140
-
Order code 71467085
Kit CxA111/140 Small parts
-
Order code 50009424
-
Order code 71277852
Kit CxA111: 2x Knurled thumb screws
-
Order code 71467090
Kit CxA111 Star handle screws (2x)
-
Order code 50066632
flange DN100 (pressureless)
-
Order code 71467086
Kit CxA111 adjustable flange
-
Order code 50066593
pressure flange DN100
-
Order code 50070514
-
Order code 50015667
-
Order code 50009030
thrust ring
-
Order code 50015718
-
Order code 71467077
Kit CPA111 electr. holder small parts
-
Order code 50072223
electrode holder complete CPA111
-
Order code 50014674
-
Order code 50028410
-
Order code 50066594
tie rod
-
Order code 50066595
Potential matching pin CPA111 316 Ti
-
Order code 71467080
Kit CPA111 potential matching pin
-
Order code 50066626
half shells=1 pair of weights for CPA111
-
Order code 50066570
-
Order code 50066569
-
-
