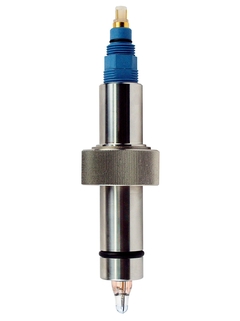

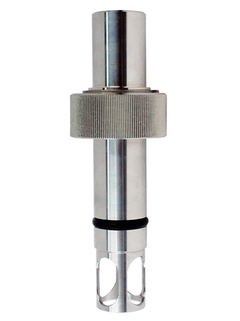

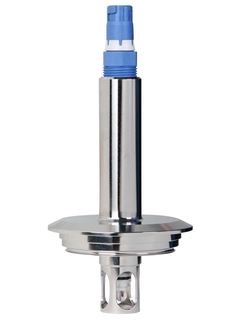

Unifit CPA442 - Hygienic assembly for pH/ORP sensors

Process assembly
Unifit CPA442

Hygienic assembly for the life sciences, food & beverage industries

CPA442
please wait
Loading price
Prices temporarily unavailable
from CHF 803.-

Specs at a glance

  • Process temperature

    max. 140°C
    (284°F)

  • Process pressure

    max. 10bar
    (145psi)

Field of application

The Unifit CPA442 process assembly is the simple solution for pH/ORP or oxygen measurement in tanks and pipelines of hygienic and sterile applications. Unifit is designed for inline cleaning and sterilization according to EHEDG and 3A criteria. You can be absolutely sure that your high-quality products are never contaminated but always completely safe.

Unifit CPA442 is intended for permanent installation in tanks and pipework in:

  • Food and beverage

  • Life sciences

  • Water treatment

  • Chemicals

It is suitable for use with pressures of up to 12 bar (stainless steel).

Benefits

  • Certified hygienic design: Complies with 3A standard 74-05 and the criteria of EHEDG Class I

  • No contamination thanks to leak-tight, built-in electrode seal (molded seal)

  • Electropolished surface prevents build-up of residues (Ra=0.38 µm or 0.76 µm)

  • Suitable for CIP and SIP

  • Flexible adaptation to all applications by various hygienic process connections and flanges
