Specs at a glance
-
Measurement range
pH 1 to 12
-
Process temperature
0 to 80 °C
(32 to 176 °F) -
Process pressure
1 to 4 bar
(15 to 60 psi)
Field of application

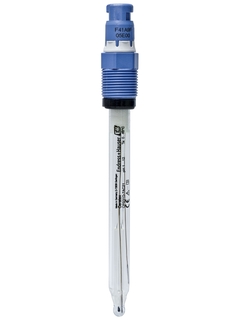

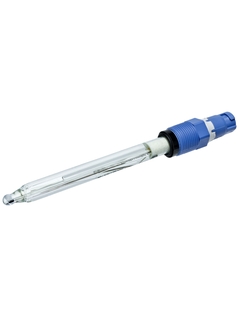

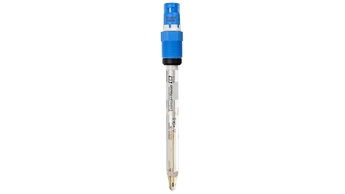

Memosens CPS31D is the digital expert for pH compensation in disinfection processes. Its three diaphragms make it suitable for minimum conductivity while its low drift guarantees stable measurement. The sensor makes sure that swimming pool water is agreeable and drinking water tasteful. Memosens CPS31D is not the latest Memosens generation. To get information on the new Memosens CPS31E sensor with extended functionality, click here.
Drinking water
Swimming pool water
pH compensation for free chlorine measurement
Benefits
Reliable measurement at minimum conductivity thanks to three diaphragms
Low drift by very low level of ion depletion in electrolyte
Optional salt ring for extended operating time
Maximum process safety through non-contact inductive signal transmission
Enables predictive maintenance due to storage of sensor and process-specific data
Reduced operating costs due to minimized process downtime and extended sensor lifetime
