Specs at a glance
Process temperature
-20 °C ... 80 °C (-4 °F ... 170 °F)
Process pressure / max. overpressure limit
0.5 bar to 1.5 bar (7 psi to 22 psi)
Field of application

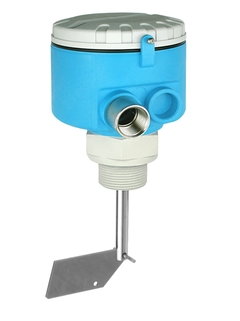

The economical Soliswitch FTE31 is a paddle switch for point level detection in bulk materials. Its robust polymer housing and compact design makes it an ideal sensor for full, empty and demand alarm in applications with bulk solids. The optimized materials make the unit outstandingly robust and therefore suitable for use in dust explosive areas.
The universal point level switch FTE31 is used as a full, empty and demand alarm on silos containing solids. Its construction and materials make the unit suitable for use in the food industry. The unit is suitable as a level limit switch in dust-explosion-hazardous areas.
Typical applications are level detection in: Cereals, sugar, cacao, animal feeds, washing powders, chalk, dry plaster, cement, granulates, wood chips
Benefits
Reliable and economical paddle switch
Highest safety standard for dust-explosion-hazardous areas
Diverse instrument designs for use under different application conditions
Slip clutch prevents impact on paddle
Ingress protection to IP 65 / NEMA 4x / Type 4x for optimum safety in the process
Fundamental selection
Simple products
Easy to select, install and operate
Technical excellence
Simplicity
©Endress+Hauser
Simple products
Easy to select, install and operate
Technical excellence
Simplicity
Standard products
Reliable, robust and low-maintenance
Technical excellence
Simplicity
High-end products
Highly functional and convenient
Technical excellence
Simplicity
Specialized products
Designed for demanding applications
Technical excellence
Simplicity
FLEX selections
Technical excellence
Simplicity
Fundamental selection
Meet your basic measurement needs
Technical excellence
Simplicity
Lean selection
Handle your core processes easily
Technical excellence
Simplicity
Extended selection
Optimize your processes with innovative technologies
Technical excellence
Simplicity
Xpert selection
Master your most challenging applications
Technical excellence
Simplicity
Loading alternative products
Characteristic / Application
universally applicable as a full, empty and demand alarm on silos containing solids
Specialities
Hinged paddle for retro-fitting
Supply / Communication
230V 50/60 Hz
Ambient temperature
-20 °C ... 60 °C (-4 °F ... 140 °F)
Process temperature
-20 °C ... 80 °C (-4 °F ... 170 °F)
Process pressure / max. overpressure limit
0.5 bar to 1.5 bar (7 psi to 22 psi)
Main wetted parts
Shaft: 1.4435
Process connection
Threaded boss - thread NPT 1 1/4" or NPT 1 1/2"
Sensor length
Standard:
Certificates / Approvals
FM DIP Cl.II,III, Div.1 Gr.EFG
Application limits
max. grain size 50 mm (2")
