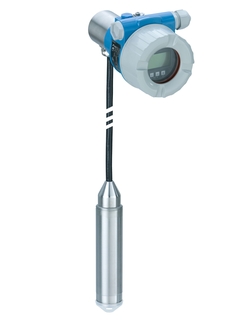

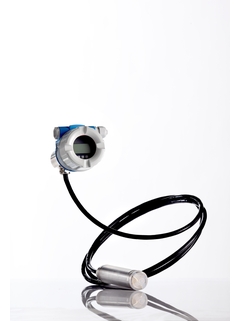

Deltapilot FMB53 - Hydrostatic level measurement

Hydrostatic
Level measurement
Deltapilot FMB53

Pressure sensor with Contite measuring cell for hydrostatic level measurement

FMB53
please wait
Loading price
Prices temporarily unavailable
from CHF 803.-

Specs at a glance

  • Accuracy

    Standard 0.2%
    Optional 0.1%

  • Process temperature

    PE cable: -10°C…70°C / 14°F…158°F
    FEP cable: -10°C…80°C / 14°F…176°F

  • Pressure measuring range

    100mbar...10bar
    (1.5psi...150psi)

  • Process pressure absolute / max. overpressure limit

    40 bar (600 psi)

  • Main wetted parts

    Alloy C
    316L
    Cable (PE/FEP)
    optional coating AuPt
    optional coating AuRh

  • Max. measurement distance

    100 m (328 ft) H2O

  • Material process membrane

    316L, AlloyC,
    Gold-Rhodium
    PE, FEP

  • Measuring cell

    100 mbar...10 bar
    (1.5 psi...150 psi)

Field of application

The Deltapilot FMB53 is a cable version with mounting clamp. This device with the Contite measuring cell is typically used in the environmental industries. It is made for level measurement in liquid and paste-like media in open or closed containers and unaffected by possible foam formation. For use in SIL2 safety systems.

For level measurement.

  • Process connection: Suspension clamp

  • Temperature: With PE cable: -10 to +70°C (+14 to +158°F),

    with FEP cable: -10 to +80°C (+14 to +176°F)

  • Measuring range: 0.1 to 10bar / 100m H2O (1.5 to 150psi / 300ft H2O)

  • Accuracy: ±0.2%, ±0.1% (option)

  • International explosion protection certificates, overfill prevention WHG, SIL, drinking water approval

Benefits

  • Hermetically sealed Contite measuring cell with condensate-resistance, high reference accuracy: ±0.2%, optionally ±0.1% and minimum temperature effects

  • Modular concept for easy replacement of display or electronics

  • Seamless and independent system integration (HART/PA/FF)

  • Easy and safe menu-guided operation: On-site via display module, via 4 to 20mA with HART, via PROFIBUS PA, via FOUNDATION Fieldbus

  • International usage thanks to a wide range of approvals
