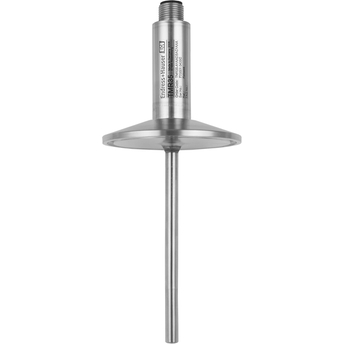

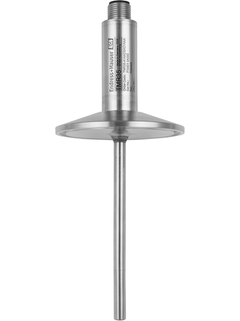

Product picture hygienic compact thermometer TMR35

Easytemp TMR35
Hygienic compact thermometer

Compact, fast and precise for the measurement of process temperatures in hygienic applications

TMR35
Loading price
Prices temporarily unavailable
Price on request
activating price
price: provide information
from CHF ??.-
Easytemp TMR35
  • F
  • L
  • E
  • X
©Endress+Hauser

Specs at a glance

  • Accuracy

    class A acc. to IEC 60751

  • Response time

    t50 = 1 s
    t90 = 2 s

  • Max. process pressure (static)

    at 20 °C: 100 bar (1.450 psi)

  • Operating temperature range

    PT 100:
    -50 °C ...200 °C
    (-58 °F ...392 °F)

  • Max. immersion length on request

    up to 600,00 mm (23,62'')

Field of application

With cost efficiency, optimal use of space, reliable operation, easy commissioning and hygienic design the TMR35 fulfills all the requirements in the Food & Beverage as well as in the Life Science industries. A variety of hygienic process connections leads to a high flexibility.

The Easytemp TMR35 compact thermometers are used to measure temperatures from -50 °C to +150 °C (-58 °F to +302 °F), or up to +200 °C (+392 °F) with neck. The most common installation locations are tanks and pipes. TMR35 with process connections for hygienic applications.

Benefits

  • Small, compact design made entirely of stainless steel

  • Extremely short response times

  • Highly accurate even with short insertion lengths

  • 4-wire, Pt100 or PC-programmable transmitter with 4 to 20 mA output

  • Configuration and visualization with ReadWin® 2000 PC operating software, which is free of charge

  • Breakdown information in event of sensor break or sensor short-circuit, adjustable as per NAMUR NE43

  • Hygienic compatible design with 3-A marking and EHEDG certification;
    Marine approval
