TSC310

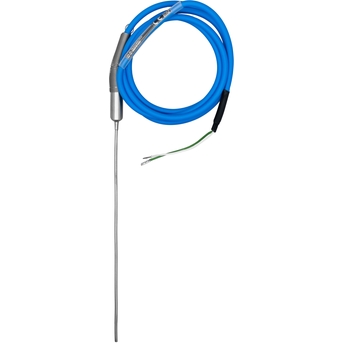

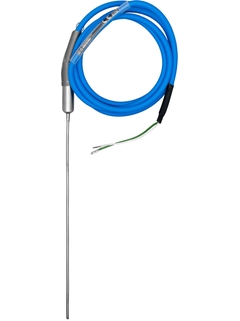

Thermocouple sensor, cable probe

Cost efficient thermocouple sensor designed for use in many process and laboratory applications

The thermocouple (TC) cable probe is easy to install and provide a high operational safety due to reliable and accurate temperature measurement in common processes. The probe is specially suited to temperature measurement in machinery, laboratory equipment and plants in gaseous or liquid medium like air, water, oil, etc. Without additional thermowell the probe sheath is directly in contact with the process medium. This enables to detect rapid temperature changes fast and accurate.

Simple products
Easy to select, install and operate

Technical excellence

Simplicity

What is FLEX?

Standard products
Reliable, robust and low-maintenance

Technical excellence

Simplicity

What is FLEX?

High-end products
Highly functional and convenient

Technical excellence

Simplicity

What is FLEX?

Specialized products
Designed for demanding applications

Technical excellence

Simplicity

Variable

What is FLEX?

FLEX selections	Technical excellence	Simplicity
F L E X Fundamental selection Meet your basic measurement needs	Technical excellence	Simplicity
F L E X Lean selection Handle your core processes easily	Technical excellence	Simplicity
F L E X Extended selection Optimize your processes with innovative technologies	Technical excellence	Simplicity
F L E X Xpert selection Master your most challenging applications	Technical excellence	Simplicity Variable

Learn more about the FLEX selections

Sizing

Compare

Specs at a glance
Accuracy

class 2 acc. to IEC 60584

Response time

t50 = 1 s
t90 = 2 s

Max. process pressure (static)

at 20 °C: 25 bar (363 psi)

Operating temperature range

Type K:
-40 °C ...1.100 °C
(-40 °F ...2.012 °F)
Type J:
-40 °C ...750 °C
(-40 °F ...1.382 °F)

Max. immersion length on request

up to 100.000,00 mm (3.937,01'')

Quick selection

Choose from our suggested options

<%label%>
-- selected coding

-- selected label
<%label%>
Looking for more options? Please use the individual configurator to continue
<%feature%>
-- selected coding

-- selected label
<%feature%>
<%coding%>

<%label%>

Looking for more options? Please use the individual configurator to continue
Process Connection
<%coding%>

<%label%>

<%coding%>

<%label%>

<%message%>

TSC310

Show details Hide details

Show details

Back to Quick Selection

<%feature%>

<%coding%>

<%label%>

Add to Cart

Optional add-ons

Please use the individual configurator to continue

Individual configuration

Continue your selection from all possible options

Configure

Additional components

F

L

E

X

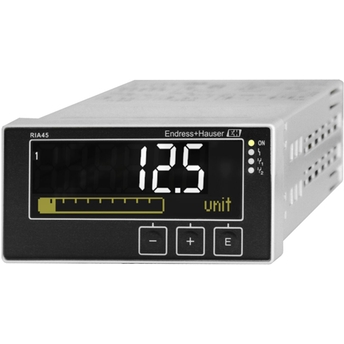

RIA45
Process meter with control unit

Multifunctional panel mounted process meter for monitoring and indication of analog measured values
More information
Compare
Loading price

Prices temporarily unavailable

Price after login

from CHF 803.-
F

L

E

X

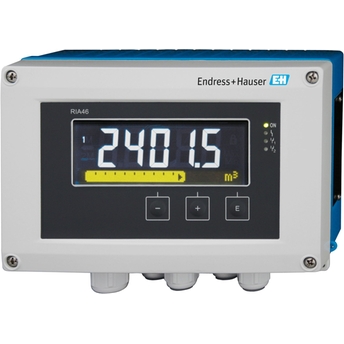

RIA46
Field meter with control unit

Multifunctional field meter for monitoring and indication of analog measured values
More information
Compare
Loading price

Prices temporarily unavailable

Price after login

from CHF 803.-
F

L

E

X
RMA42
Process transmitter with control unit

Universal transmitter, loop power supply, barrier and limit switch in one device!
More information
Compare
Loading price

Prices temporarily unavailable

Price after login

from CHF 803.-

Benefits
High flexibility through user-specific insertion lengths and variable process connections
Fast response time
Different types of thermocouples according to DIN EN 60584 and ASTM E230/ANSI MC96.1: type J (Fe-CuNi), type K (NiCr-Ni)
Types of protection for...

Show more
High flexibility through user-specific insertion lengths and variable process connections
Fast response time
Different types of thermocouples according to DIN EN 60584 and ASTM E230/ANSI MC96.1: type J (Fe-CuNi), type K (NiCr-Ni)
Types of protection for use in hazardous locations: Intrinsic Safety (Ex ia) and non-Sparking (Ex nA)
NEPSI approval (Ex ia)

Show less

Field of application

The resistance thermometer is specially suited to temperature measurement in machinery, power stations and plants in gaseous or liquid media like air, steam, water and oil.

Features and specifications

Back

Details

Measuring principle

Thermocouple
Characteristic / Application

metric style

cable probe

suitable for hazardous areas

process connection as compression fitting
Thermowell / protection tube

without (not intended to use with thermowell)
Insert / probe

mineral insulated (MI), flexible
Outer diameter protection tube / Insert

2,0 mm (0,08'')

3,0 mm (0,12'')

4,5 mm (0,18'')

6,0 mm (0,24'')
Max. immersion length on request

up to 100.000,00 mm (3.937,01'')
Material protection tube/ thermowell

1.4401 (316)

Alloy 600 (2.4816)
Process connection

compression fitting:

G1/4"

G3/8"

G1/2"

NPT1/4"

NPT1/2"
Tip shape

straight
Operating temperature range

Type K:

-40 °C ...1.100 °C

(-40 °F ...2.012 °F)

Type J:

-40 °C ...750 °C

(-40 °F ...1.382 °F)
Max. process pressure (static)

at 20 °C: 25 bar (363 psi)
Accuracy

class 2 acc. to IEC 60584
Response time

t50 = 1 s

t90 = 2 s
Integration head transmitter

no
Ex - approvals

ATEX II

NEPSI

IECEx
Certification

Gost Metrology

Show more
Show less

Documents / Manuals / Software

Download type

Filter

Technical Information
Omnigrad TSC
Thermocouple thermometers

Technical Information (TI)
TSC310
Thermocouple thermometer

Technical Information (TI)
iTHERM TS111, TM211 Omniset TPx100, Omnigrad TSx310 RTD/TC inserts and cable thermometers ATEX: II1D, II1/2D Ex ia IIIC or II1G, II1/2G Ex ia IIC IECEx: Ex ia IIC Ga, Ga/Gb
Safety instructions for electrical apparatus certified for use in
explosion-hazardous areas.

Ex Safety Instructions (XA)
Omniset TPx100, TSx310
RTD/TC inserts and cable thermometers
0Ех ia IIC T6…T1 Ga Х
Ga/Gb Ех ia IIC T6…T1 Ga X
Ех ia IIIC 850C…4500C Da Х
Ех ia IIIC 850C…4500C Da/Db Х

Ex Safety Instructions (XA)
RTD/TC thermometers ATEX II 3G, II 3D Safety Instructions
Safety instructions for electrical apparatus certified for use in
explosion-hazardous areas.

Ex Safety Instructions (XA)
Safety instructions ATEX II1GD or II 1/2 GD
RTD / TC inserts and cable thermometers
Omniset TPR100, TPC100, TSx310

Ex Safety Instructions (XA)
Omnigrad TR1x, TR4x, TR88, TR6x, TC1x, TC88, TEC420, TC6x ATEX: II 1D, II 1/2D Ex ia IIIC or II 1G, II 1/2G Ex ia IIC IECEx: Ex iaIIC Safety Instructions
Safety instructions for electrical apparatus certified for use in
explosion-hazardous areas.

Ex Safety Instructions (XA)
Omnigrad TRxx, TCxx, TxCxxx
RTD/TC modular thermometers
0Ех ia IIC T6…T1 Ga Х
Ga/Gb Ех ia IIC T6…T1 Ga Х
Ех ia IIIC 85 °C…450 °C Da Х
Ех ia IIIC 85 °C…450 °C Da/Db Х

Ex Safety Instructions (XA)
