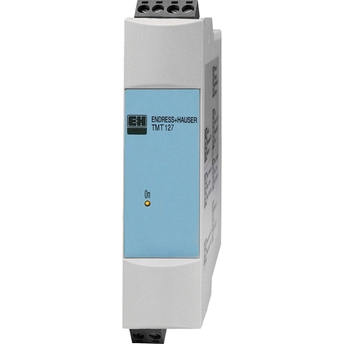

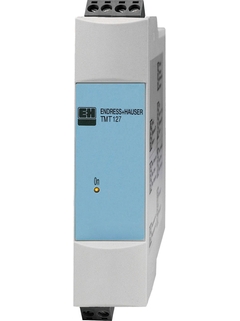

Product picture temperature transmitter TMT127

iTEMP TMT127
DIN rail temperature transmitter

Transformation of the sensor signal into a stable and standardized output signal for all industries

TMT127
Loading price
Prices temporarily unavailable
Price on request
activating price
price: provide information
from CHF ??.-
iTEMP TMT127 DIN rail temperature transmitter
  • F
  • L
  • E
  • X
©Endress+Hauser

Specs at a glance

  • Accuracy

    (Pt100, -50...200 °C) <= 0,2 K
    (Pt100, -58...392 °F) <= 0,4 °F

Field of application

The transmitter is designed for the transformation of an RTD Pt100 sensor signal in a fixed measuring range. The standardized output signal used for process measurement is a 4 to 20 mA signal. This means fast, easy and cost-saving temperature measuring as well as reliable and precise measured values for for a wide range of industry applications. Installation is realized on DIN rail according to IEC 60715 (housing width: 22.5 mm).

  • Fixed range temperature transmitter for converting a Pt100 input signal into a scalable 4 to 20 mA analog output signal

  • Input: Resistance thermometer (RTD) Pt100

  • For DIN rail mounting

Benefits

  • High accuracy in complete ambient temperature range

  • Fault signal on sensor break or short circuit, NAMUR NE 43 compliant

  • EMC as per NAMUR NE 21, CE

  • Ex-Certification: ATEX Ex ia, FM IS, CSA IS

  • UL recognized component to UL 3111-1

  • Ship building approval GL

  • Galvanic isolation
