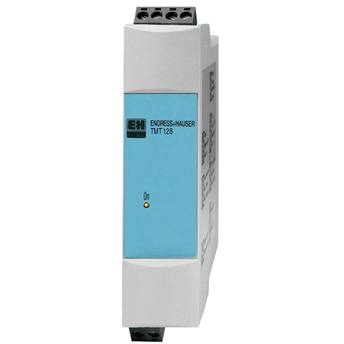

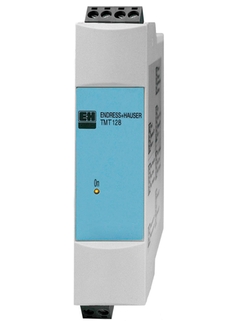

iTEMP TMT128
DIN rail temperature transmitter

Transformation of the sensor signal into a stable and standardized output signal for all industries

The transmitter is designed for the transformation of a TC sensor signal in a fixed measuring range. The standardized output signal used for process measurement is a 4 to 20 mA signal. This means fast, easy and cost-saving temperature measuring as well as reliable and precise measured values for for a wide range of industry applications. Installation is realized on DIN rail according to IEC 60715 (housing width: 22.5 mm).

Sizing
Pricing after login and configuration

Compare

Quick selection

Choose from our suggested options

<%label%>
-- selected coding

-- selected label
<%label%>
Looking for more options? Please use the individual configurator to continue
<%feature%>
-- selected coding

-- selected label
<%feature%>
<%coding%>

<%label%>

Looking for more options? Please use the individual configuratorto continue
Process Connection
<%coding%>

<%label%>

<%coding%>

<%label%>

<%message%>

Optional add-ons

Please use the individual configurator to continue

Individual configuration

Continue your selection from all possible options

Configure

Additional components

RN221N
Active barrier with optional HART® diagnosis

Active barrier with power supply for safe separation of 4...20 mA current circuits
More information
Compare
RTA421
Limit switch

Contactor with loop power supply for monitoring current or voltage signals
More information
Compare
RIA452
Process indicator with pump control

Digital process meter in panel mounted housing for monitoring and displaying analog measured values
More information
Compare
RMA42
Process transmitter with control unit

Universal transmitter, loop power supply, barrier and limit switch in one device!
More information
Compare
RIA45
Process meter with control unit

Multifunctional panel mounted process meter for monitoring and indication of analog measured values
More information
Compare

Benefits
High accuracy in complete ambient temperature range
Fault signal on sensor break or short circuit, NAMUR NE 43 compliant
EMC as per NAMUR NE 21, CE
Ex-Certification: ATEX Ex ia, FM IS, CSA IS
UL recognized component to UL 3111-1
Ship building approval GL
...

Show more
High accuracy in complete ambient temperature range
Fault signal on sensor break or short circuit, NAMUR NE 43 compliant
EMC as per NAMUR NE 21, CE
Ex-Certification: ATEX Ex ia, FM IS, CSA IS
UL recognized component to UL 3111-1
Ship building approval GL
Galvanic isolation

Show less

Field of application
Fixed range temperature transmitter for converting TC input signals into a 4 to 20 mA analog output signal

Input: Thermocouple (TC)
For DIN rail mounting

Features and specifications

Back

Details

Measuring principle

Rail transmitter
Input

1 x TC
Output

1 x analog 4...20 mA
Auxiliary power supply

12...35 V DC (standard-version)

12...30 V DC (Ex-version)
Installation

DIN-rail
Accuracy

(Type K) <= 0,5 K

(Type K) <=0,9 °F
Galvanic isolation

yes
Certification

UL rec. Comp

marine approval

GOST Metrology

FM IS,NI,Class I,Div.1+2,Group ABCD

CSA IS,NI,Class I,Div.1+2,Group ABCD

ATEX II2(1)G Ex ia[ia Ga] IIC T6 Gb

ATEX II3G Ex nA IIC T6

FM+CSA IS,NI,Class I,Div.1+2,Group ABCD

CSA General Purpose

NEPSI Ex ia IIC T4-T6

NEPSI Ex nA II T4-T6

Show more
Show less

Documents / Manuals / Software

Download type

Filter

Technical information iTEMP ® TC DIN rail TMT128
Temperature Transmitter for Thermocouples (TC)

Technical Information (TI)
BA157R TMT 127/128 Operating Instructions Version 09.03
Operating Instructions for iTEMP® PCP TMT 127/128 Temperature DIN rail
transmitter

Operating Instruction (BA)
Brief operating instructions
Temperature transmitter DIN rail iTEMP® RTD TMT127, TC TMT128

Short Instruction (KA)

08/06

German , English , fr
iTEMP TMT121/127/128, TMT112, TMT122 ATEX: II 3G: Ex nA IIC T6... T4 Gc Safety Instructions
Safety instructions for electrical apparatus certified for use in
explosion-hazardous areas.

Ex Safety Instructions (XA)
iTEMP TMT121, TMT127, TMT128 ATEX: II2 (1)G: Ex ia [ia Ga] IIC T4... T6 Gb Safety Instructions
Safety instructions for electrical apparatus certified for use in
explosion-hazardous areas.

Ex Safety Instructions (XA)
Control Drawing CSA iTEMP TMT121, TMT127, TMT128
Temperature transmitter iTEMP TMT121, TMT127, TMT128
Installation Notes for hazardous locations

Certificate FM/CSA (ZD)
Control Drawing FM iTEMP TMT121, TMT127, TMT128
Temperature transmitter iTEMP TMT121, TMT127, TMT128
Installation Notes for hazardous locations (FM approval)

Certificate FM/CSA (ZD)
Измерение температуры
Ключевые особенности термометров Endress+Hauser для нефтегазовой отрасли

Competence Brochure (CP)

08/11

Russian
Инженерные решения по термометрии
Специальные решения по термометрии для химической и
нефтеперерабатывающей промышленности

Competence Brochure (CP)

04/10

Russian
E-direct Produktcatalogus 2018-2019
High quality, low price

Endress+Hauser Catalogues (EC)

10/18

Dutch
Catalogue Produits E-direct 2019/2020 Français
La qualité Endress+Hauser à petit prix !

Endress+Hauser Catalogues (EC)

09/19

fr
E-direct Produktkatalog 2019/2020
Hohe Qualität zum kleinen Preis!

Endress+Hauser Catalogues (EC)

06/20

German
Hutschienentransmitter TMT128
Temperatur-Transmitter (2-Draht) mit festem Messbereich als
Hutschienengerät

Tender Text

11/09

German
DIN Rail Transmitter, Field transmitter, head transmitters, Process RTD Direct contact, Process RTD General purpose, Process RTD Heavy duty, Process RTD Hygienic, Process TC direct in contact, Process TC General purpose, Process TC Heavy duty
Product Code: TST310-, TSC310-, TPC100-, TMT162-, TMT142-, TMT128-, TMT127-, TMT122-, TMT121-, TMT112-, TMT111-
Declaration Number: HE_00237_04.15
Manufacturer Specification: Explosion protection, EMC

Manufacturer Declaration

Russian
DIN Rail Transmitter
Product Code: TMT128-
Declaration Number: HE_00458_01.17
Manufacturer Specification: RoHS

Manufacturer Declaration

English
DIN Rail Transmitter
Product Code: TMT121-, TMT127-, TMT128-
Declaration Number: EC_00322_01.16

EU Declaration

German , English , fr
ACCESSORIES, DIN Rail Transmitter, Field transmitter, head transmitters
Product Code: TMT127-, TMT128-, TMT142-, TMT162-, TMT180-, TMT180L-, TMT181-, TMT181L-, TMT182-, TMT182L-, TMT187-, TMT188-, TMT80-, TMT82-, TMT84-, TMT85-, OTMT127-, OTMT128-, OTMT187-, OTMT188-, OTMT80-, OTMT82-, OTMT84-, OTMT85-, TID10-, TMT111L-, TMT112-, TMT112L-, TMT121-, TMT121L-, TMT122-, TMT125-
Declaration Number: EC_00567_01.17

EU Declaration

German , English , fr
DIN Rail Transmitter
Product Code: TMT121-, TMT127-, TMT128-
Declaration Number: EC_00161_01.16

EU Declaration

German , English , fr
DIN Rail Transmitter
Product Code: TMT112-, TMT121-, TMT122-, TMT127-, TMT128-
Declaration Number: EC_00162_01.16

EU Declaration

German , English , fr
DIN Rail Transmitter, Field transmitter, head transmitters, RTD-thermometer, Process TC Heavy duty, Process RTD Heavy duty, process displays, power supply and barrier, contactors / transmitters
Product Code: TMT85-, TMT84-, TMT82-, TMT80-, TMT188-, TMT187-, TMT182-, TMT181-, TMT180-, TMT162-, TMT142-, TMT128-, TMT127-, TMT125-, TMT122-, TMT121-, TMT112-, TMT111-, TTR35-, TTR31-, TMT162R-, TMT162C-, TMT142R-, TMT142C-, TMR31-, TMR35-
Region/Country: Russia (TR CU)
Approval Agency: EAC
Approval Number: TC № RU D-DE.AG95.B.00650

Miscellaneous

Russian
DIN Rail Transmitter, Field transmitter, head transmitters, Process RTD Heavy duty, Process TC Heavy duty
Product Code: TMT82-, TMT80-, TMT188-, TMT187-, TMT182-, TMT181-, TMT180-, TMT162R-, TMT162C-, TMT142R-, TMT142C-, TMT128-, TMT127-, TMT122-, TMT121-, TMT112-, TMT111-
Region/Country: Russia (TR CU)
Approval Agency: EAC
Approval Number: TC BY_112 11.01. TP020 003 126

Miscellaneous

Russian
DIN Rail Transmitter, Field transmitter, head transmitters
Product Code: TMT85-, TMT84-, TMT82-, TMT188-, TMT187-, TMT182-, TMT181-, TMT162-, TMT142-, TMT128-, TMT127-, TMT122-, TMT121-, TMT112-, TMT111-
Protection: [Ex ia Ga] IIC T6...T4 Gb, Ex d IIC T6...T4 Ga, Ex d IIC T6...T4 Ga/Gb, Ex d IIC T6...T4 Gb, Ex ia IIC T6...T4 Ga, Ex tb IIIC Txxx°C Gb

Explosion Protection

Russian
DIN Rail Transmitter
Product Code: TMT121-, TMT127-, TMT128-
Region/Country: China
Approval Agency: NEPSI
Protection: Ex ia IIC T6...T4 Ga/Gb

Explosion Protection

Chinese
DIN Rail Transmitter
Product Code: TMT128-, TMT127-, TMT121-
Region/Country: USA
Approval Agency: FM
Category: I/1,2/ABCD
Protection: NI, IS, AEx

Explosion Protection

English
DIN Rail Transmitter
Product Code: TMT128-, TMT127-, TMT121-
Region/Country: Europe (ATEX)
Approval Agency: PTB
Category: II2(1)G
Protection: Ex ia [ia Ga] IIC T6 Gb

Explosion Protection

German , English
DIN Rail Transmitter, head transmitters
Product Code: TMT121-, TMT127-, TMT128-
Region/Country: China
Approval Agency: NEPSI
Protection: Ex nA IIC T6...T4 Gc

Explosion Protection

Chinese
DIN Rail Transmitter, Field transmitter, head transmitters
Product Code: TMT85-, TMT84-, TMT82-, TMT80-, TMT188-, TMT187-, TMT182-, TMT181-, TMT180-, TMT162-, TMT142-, TMT128-, TMT127-, TMT125-, TMT122-, TMT121-, TMT112-, TMT111-
Region/Country: Russia
Approval Agency: Rosstandart
Approval Number: OC.C.32.004.A NO 74639

Metrology

Russian
DIN Rail Transmitter
Product Code: TMT121-, TMT122-, TMT127-, TMT128-
Region/Country: International
Approval Agency: DNVGL

Marine

English
RTD-thermometer, head transmitters, DIN Rail Transmitter, process displays, Memo-Graph, Field transmitter, Ecograph, contactors / transmitters
Product Code: TMT85-, TMT162-, TMT142-, RIA14-, RIA16-, RIA45-, RIA46-, RMA42-, RSG35-, RSG45-, TMR31-, TMR35-, TMT84-, TMT82-, TMT188-, TMT187-, TMT182-, TMT181-, TMT128-, TMT127-, TMT122-, TMT121-, TMT112-, TMT180-, TMT111-, TTR35-, TTR31-, RSG40-
Region/Country: Canada, USA
Approval Agency: UL

Ordinary Location Product Safety

English

Show more
Show less

Accessories / Spare parts

Filter

Order code

Specification

- Order code 51006248

  Terminal plug-in 4pole SMSTB2,5 printed

  Show details Show less
- Order code 51006249

  Terminal plug-in 4pole SMSTB2,5 printed

  Show details Show less
- Order code 51006250

  Terminal plug-in 2pole RM5 printed -/+

  Show details Show less
- Order code 51006251

  Termin plug-in 2pole RM5 printed -/+

  Show details Show less
- Order code

  The unit is not repairable

  Show details Show less
