Specs at a glance
-
Accuracy
+/- 0.1 °C
-
Max. process pressure (static)
0 bar...0.5 bar
(0 psi...7.25 psi) -
Operating temperature range
Standard:
-40 °C...100 °C
Optional:
-55 °C...235 °C
Water Bottom spec.:
-40 °C...100 °C
Cyrogenic:
-170 °C...60 °C -
Max. immersion length on request
40 m (131.2 ft)
Field of application

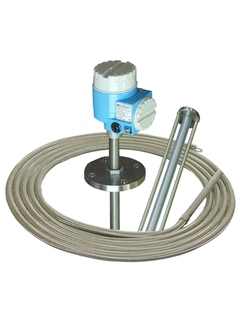

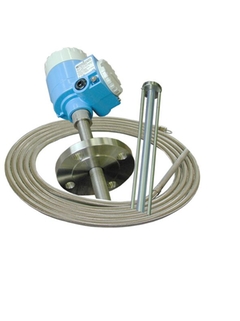

Prothermo NMT539 is an intelligent HART signal converter, with a combined average temperature sensor and water bottom interface probe. For average temperature measurement consists of precision multispot Pt100 elements. The NMT539 is a highly capable solution for constant average temperature data and water interface data via HART communication. For custody transfer and accurate inventory measurement, it is best suited connected to Proservo NMS5 or Tank Side Monitor NRF590 with Micropilot.
For precision average temperature and water bottom measurement.
Process connection: Flanges
Temperature: -40 to +100°C (-40 to +212°F)
Measuring distance: 40m (131.2ft)
Accuracy: ± 0.1°C
International explosion protection certificates
Benefits
Intrinsically safe device allowing for the safest electrical configuration possible
Available in four different versions based on customer requirements:
Converter only
Converter and temperature probe
Converter and water bottom probe
Converter, temperature and water bottom probeConverter is compatible with various element types in third party manufacturer temperature probes
Compatible with Endress+Hauser's user friendly FieldCare
Variety of process connections and cable entries available to meet worldwide classifications
High reliability and easy installation
Maintenance free
Xpert selection
-
Specialized products
- Designed for demanding applications
Technical excellence
Simplicity
Variable
-
Standard products
- Reliable, robust and low-maintenance
Technical excellence
Simplicity
-
Specialized products
- Designed for demanding applications
Technical excellence
Simplicity
Variable
FLEX selections | Technical excellence | Simplicity |
---|---|---|
Fundamental selection Meet your basic measurement needs |
Technical excellence
|
Simplicity
|
Lean selection Handle your core processes easily |
Technical excellence
|
Simplicity
|
Extended selection Optimize your processes with innovative technologies |
Technical excellence
|
Simplicity
|
Xpert selection Master your most challenging applications |
Technical excellence
|
Simplicity
Variable |
