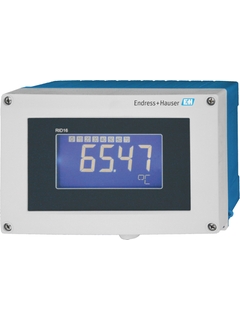

Product picture fieldbus indicator RID16 with FOUNDATION Fieldbus™ or PROFIBUS® PA protocol

RID16 process indicator

Loop-powered Ex ia process indicator as a field device for FOUNDATION Fieldbus™ or PROFIBUS® with up to 8 input channels

RID16
Loading price
Prices temporarily unavailable
Price on request
activating price
price: provide information
5-year warranty

Engineered for Confidence

Our Fundamental Selection instruments feature an extended 5-year warranty – a clear testament of our trust in their long-term reliability and performance.

Should a warranty case occur, you can count on a fast replacement process and minimal administrative effort – giving you peace of mind when it matters most and helping you keep your operations running smoothly.

Warranty terms apply

The extended warranty is subject to specific conditions. For full details, please refer to the locally applicable General Terms and Conditions (GTC), which can be found on the respective country page of our website.

Fieldbus indicator RID16 with FOUNDATION Fieldbus™ or PROFIBUS® PA protocol
  • F
  • L
  • E
  • X
©Endress+Hauser

Specs at a glance

  • Input

    Foundation Fieldbus protocol
    PROFIBUS PA protocol

  • Output

    Not defined

  • Display

    High contrast backlit LCD with bargraph
    TAG/unit

  • Power Supply

    Not defined

Field of application

The 8 channel indicator shows measured and calculated values, and status information of the fieldbus users in a FOUNDATION Fieldbus™ or PROFIBUS® PA network. In the listener mode the device listens to the set fieldbus addresses and indicates their values. In addition, for FOUNDATION Fieldbus™ values available on the bus can be indicated via function block interconnection. A plain text field allows the display of the engineering unit or of the TAG. A bargraph is available for trend visualization.

Fieldbus indicator with 8 input channels and FOUNDATION Fieldbus™ or PROFIBUS® PA protocol for displaying process values and calculated values.

Benefits

  • Simple and standardized communication via fieldbus protocol

  • Listener mode for up to 8 analog channels or digital status

  • Brilliant, back lit LC display with bargraph, diagnostic symbols and clear text field

  • No external power supply required

  • International approvals
