DeviceCare SFE100

DeviceCare - connect and configure Endress+Hauser field devices © Endress+Hauser

DeviceCare - Connect and configure Endress+Hauser field devices. Access software portal

DeviceCare - User-centered design that focuses on ease of use © Endress+Hauser

DeviceCare - User-centered design that focuses on ease of use

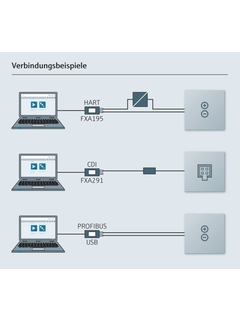

DeviceCare – Connection examples with modems © Endress+Hauser

DeviceCare – Connection examples with modems

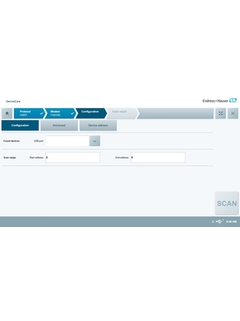

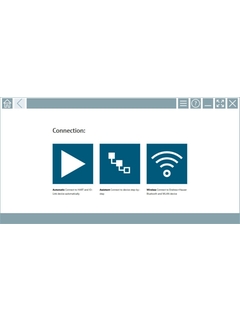

DeviceCare - Connection Assistant: Transparent and intuitive device connection and configuration © Endress+Hauser

DeviceCare - Connection Assistant: Transparent and intuitive device connection and configuration

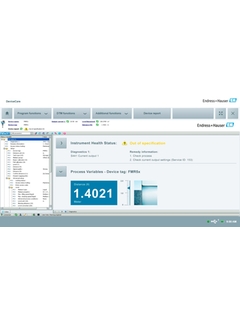

DeviceCare - DTM dashboard: DTM (Device Type Manager) integrated in DeviceCare © Endress+Hauser

DeviceCare - DTM dashboard: DTM (Device Type Manager) integrated in DeviceCare

  • DeviceCare - connect and configure Endress+Hauser field devices
  • DeviceCare - User-centered design that focuses on ease of use
  • DeviceCare – Connection examples with modems
  • DeviceCare - Connection Assistant: Transparent and intuitive device connection and configuration
  • DeviceCare - DTM dashboard: DTM (Device Type Manager) integrated in DeviceCare

Configuration of Endress+Hauser devices

The fastest way to configure Endress+Hauser field devices is by using our dedicated tool DeviceCare. User-centered design allows for transparent and intuitive device connection and configuration. Intuitive menu design and guided step-by-step approach with status indication ensures best-in-class visibility.

  • Benefits

    • Fast and easy installation, online application updates, one-click connection to devices.

    • Automatic hardware identification and driver catalog update.

    • Device configuration with DTMs, Heartbeat verification support.

    • Multi-language support, touch-ready for...

  • Field of application

    DeviceCare is the tool developed by Endress+Hauser for the configuration of Endress+Hauser devices. All smart devices in a plant can be configured via a point-to-point or point-to-bus connection. The status information given provides users with a simple...

Features and specifications

Back

Details

  • Measuring principle

    Plant Asset Management

  • Application Task

    Asset monitoring

    Configuration & parameterization

    Documentation & reports

    Process monitoring & visualization

    Maintenance management

  • Field of Application

    DeviceCare is the tool developed by Endress+Hauser for the configuration of Endress+Hauser devices. All smart devices in a plant can be configured via a point-to-point or point-to-bus connection. The status information given provides users with a simple yet effective tool for monitoring devices. Automatic functions and wizards guide the user easily through the program. The user-friendly menus enable transparent and intuitive access to the field devices.

  • Operating systems

    Windows 7 Professional SP1 (x32+x64)

    Windows 7 Ultimate SP1 (x32+x64)

    Windows 7 Enterprise SP1 (x32+x64)

    Windows Server 2008 R2 SP2

    Windows 8.1

    Windows 8.1 Professional

    Windows 8.1 Enterprise

    Windows 10 Professional

    Windows 10 Enterprise

  • Processor type

    Intel Core M i3/i5/i7 ≥ 1.8 GHz

  • Main memory

    2 GB RAM

  • Hard-disk capacity

    Disk space needed:

    600 MB DeviceCare

  • Monitor resolution, display

    1280 x 768, 64k colors

  • Other

    Software required:

    Microsoft .Net 3.5

    Microsoft .Net 4.x

    PDF Reader



    Software installed:

    DeviceCare

    USB drivers

    CommDTMs

    Microsoft .Net 3.5

  • Digital communication

    HART, PROFIBUS DP/PA, FOUNDATION Fieldbus, Modbus, CDI and Endress+Hauser service interfaces

  • Registered Trademarks

    Microsoft, Windows, Windows 7, Windows 8.1, Windows Server 2008 R2, Windows 10 and the Microsoft logo are registered trademarks of the Microsoft Corporation.

    All other brand and product names are trademarks or registered trademarks of the companies and organisations in question.

Documents / Manuals / Software

  • DeviceCare SFE100 Technical Information

    Configuration tool for devices via fieldbus protocols and Endress+Hauser
    service protocols

    Technical Information (TI)
  • FieldCare SFE500 and DeviceCare - Getting Started

    New Documentation KA01303S FieldCare Package 1.30.00
    Scalable software tool for device configuration and integrated Plant
    Asset Management solutions. Software version 2.11.xx

    Operating Instruction (BA)
  • FieldCare, DeviceCare Brief Operating Instructions

    Getting Started

    Short Instruction (KA)
    07/18
    German , English
  • DeviceCare - Configuration des appareils Endress+Hauser

    DeviceCare - Pour connecter et configurer les appareils de terrain
    Endress+Hauser
    La façon la plus rapide de configurer les appareils de terrain
    Endress+Hauser consiste à
    utiliser notre outil dédié DeviceCare. Cet outil associé à ses DTM
    (Device Type Manager)
    est pratique et complet.

    Innovations (IN)
    11/14
    fr
  • DeviceCare - Konfiguration von Endress+Hauser Geräten

    DeviceCare - Endress+Hauser Feldgeräte verbinden und konfigurieren
    Am schnellsten lassen sich Feldgeräte von Endress+Hauser mit dem
    dedizierten Tool „DeviceCare“ konfigurieren. Es stellt zusammen mit den
    DTMs (Device Type Managers) eine komfortable und umfassende Lösung
    dar.

    Innovations (IN)
    11/14
    German
  • DeviceCare - Configuration of Endress+Hauser devices

    DeviceCare - Connect and configure Endress+Hauser field devices
    The fastest way to configure Endress+Hauser field devices is usingour
    dedicated tool DeviceCare. This Tool with its respective DTMs (Device
    Type Managers) offer a convenient and comprehensive solution.

    Innovations (IN)
    11/14
    English
