The standard holder to install pH/ORP sensors in water pipes

Show all products: Liquid analysis

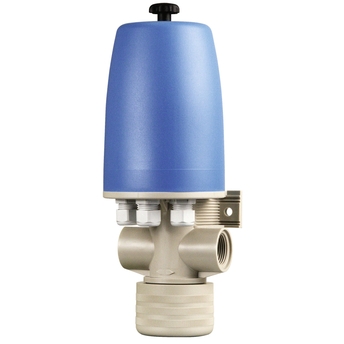

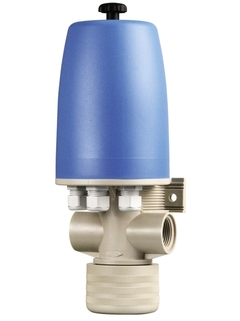

Flowfit CPA250 - Flow assembly for pH/ORP sensors in water and wastewater treatment

Specs at a glance

Process temperature

max. 80°C
Process pressure

max. 6bar (20°C)

See all specifications

Field of application

The Flowfit CPA250 flow assembly is designed for pipe installation in water and wastewater treatment. It offers space for three sensors and is able to extend their service life by keeping them wet even when the flow is interrupted. The assembly itself is also durable thanks to corrosion-resistant polypropylene. With Flowfit you get the right product exactly for your standard applications.

Flowfit CPA250 is intended to be used in pipes in:

Wastewater treatment
Drinking water
Utilities

It is suitable for use with pressures of up to 6 bar.

Benefits

Cost-efficient flow assembly for in-line installation
Simple installation and removal of the sensors thanks to threaded cap
Easy calibration without dismounting the sensors using the removable bottom part as calibration vessel
Reduces installation effort by providing 3 mounting positions for 120 mm sensors or an optional cleaning unit

Predecessor

CPA320

Success stories

Drinking water analysis panel at Grand Belfort in France

Monitoring of all relevant parameters for drinking water with the drinking water analysis panel
Read the full story
The all-round carefree panel

Water Analysis Panels make continuous monitoring of drinking water easy at the water treatment plant in Frasnacht, Switzerland.
Read the full story
Compliance made easy

The automated phosphate monitoring with Liquiline System CA80PH helps the food company Pasfrost ensure the compliance with the strict limit values for its industrial wastewater.
Read the full story
Conductivity measurement in a water reuse plant

Pasfrost relies on Memosens CLS82D for the conductivity measurements in its water reuse plant. The sensor provides precise measurements even of very low conductivity values.
Read the full story
On the trail of orthophosphate

White Paper on Orthophosphate Measurement in Municipal Sewage Treatment Plants
Read the full story

Simple products
Easy to select, install and operate

Technical excellence

Simplicity

What is FLEX?

Standard products
Reliable, robust and low-maintenance

Technical excellence

Simplicity

What is FLEX?

High-end products
Highly functional and convenient

Technical excellence

Simplicity

What is FLEX?

Specialized products
Designed for demanding applications

Technical excellence

Simplicity

Variable

What is FLEX?

FLEX selections	Technical excellence	Simplicity
F L E X Fundamental selection Meet your basic measurement needs	Technical excellence	Simplicity
F L E X Lean selection Handle your core processes easily	Technical excellence	Simplicity
F L E X Extended selection Optimize your processes with innovative technologies	Technical excellence	Simplicity
F L E X Xpert selection Master your most challenging applications	Technical excellence	Simplicity Variable

Learn more about the FLEX selections

Measuring principle

Sensor ORP / Redox
Application

Water
Installation

Flow through holder
Characteristic

Piping, bypass
Design

- 3 electrodes installation locations.- 120mm electrodes- Calibration direct in the holder possible with a removable calibration cap.- Spray cleaning connection with CPR3
Material

Holder : PP, PVDF or stainless steel 1.4571Sealing : different materials available
Process temperature

max. 80°C
Process pressure

max. 6bar (20°C)

Measuring principle

Potentiometric
Application

Water
Installation

Flow assembly
Characteristic

Piping, bypass
Design

- 3 electrodes installation locations - 120 mm electrodes - calibration direct in the holder possible with a removable calibration cap - spray cleaning connection with CPR3
Material

Holder: PP
Sealing: different materials available
Process temperature

max. 80°C
(176°F)
Process pressure

max. 6 bar at 20°C
(87 psi at 68°F)

Configure to download the CAD drawings of this product

Configure

Search spare parts by number in drawing

Filter

Housing/housing accessories
Kit CPA250: Calibration vessel PP

Housing/housing accessories

Drawing number

Order code

300

71290133
Cover
Kit CPA250: Protection cover w. star nut

Cover

Drawing number

Order code

310

71290135
Adapter housing/cable entry
Kit CPA250: Set of cable glands

Adapter housing/cable entry

Drawing number

Order code

320

71290137
Sealing
Kit CPA250: O-ring set

Sealing

Drawing number

Order code

380

71290139
Connection (electrical)
Kit CPA250: Potential matching pin 316Ti

Connection (electrical)

Drawing number

Order code

330

71290140
Connection (electrical)
Kit CPA250: Potential matching pin titan

Connection (electrical)

Drawing number

Order code

340

71290141
Sealing
Kit CPA250: Potential matching pin PP

Sealing

Drawing number

Order code

350

71290142
Assembly/armature accessory
Kit CPA250: blind plug set 3x PG13,5

Assembly/armature accessory

Drawing number

Order code

360

71290146
Assembly/armature accessory
Kit CPA250: Tie rod with star nut

Assembly/armature accessory

Drawing number

Order code

370

71290147
Sealing
Kit CxA O-ring 10.69x3.53 FKM (10x)

Sealing

Drawing number

Order code

380

71516970

NP with 2 nipples for CPA 250

Order code

50003450
NV 32mm with 2 nipples for CPA250

Order code

50003454
NV 25mm with 2 nipples for CPA 250

Order code

50003456
