Stamolys CA71CR

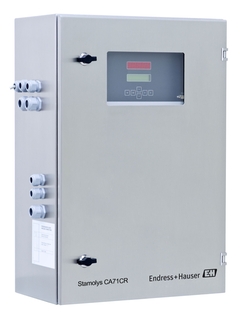

Stamolys CA71CR - Colorimetric analyzer for chromate monitoring in wastewater and process waters ©Endress+Hauser

This product is no longer available.

Please check new generation in the section predecessor / successor or contact your local Endress+Hauser entity.

Features and specifications

Back

Details

  • Measuring principle

    Colorimetric

  • Characteristic

    Analyser for Chromate

  • Size

    648 x 436 x 250 mm
    25.27 x 17.00 x 9.75inch

  • Design

    GRP, Stainless steel or open frame

  • Process temperature

    10°C ... 30°C
    50 ... 86°F

  • Ambient temperature

    5°C ... 40°C
    41 ... 104°F

  • Process pressure

    pressureless < 0,2 bar
    3psi

  • Sample flow rate

    min. 5 ml/min

  • Consistency of the sample

    low solid content(TS<50mg/l)

  • Specials

    at any time adaptable at suburb/customer conditions, two-channelversion available, sample fertilization without further pump possible

  • Application

    Water / Wastewater / Processwater

  • Power supply

    115 V AC / 230 V AC, 50/60 Hz

  • Output / communication

    0/4 ... 20 mA
    Contacts: 2 limit contacts (per channel), 1 system alarm contact

  • Measurement range

    0,1 ... 2,5 mg/l Cr (VI)
    0,2 ... 5 mg/l Cr (VI)

  • Consumables

    Chemicals necessary

Documents / Manuals / Software

Accessories / Spare parts

Nr
Order code
Specification

  • Predecessor

  • Successor

    • Liquiline System CA80CR - Colorimetric analyzer for chromate monitoring in industrial wastewater
      • F
      • L
      • E
      • X

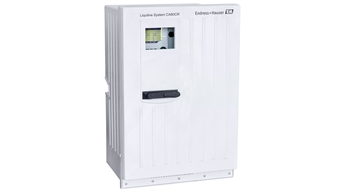

      Liquiline System CA80CR

      The analyzer offers highly accurate online measurement for optimized chromate removal in industrial wastewater. This guarantees environmentally compliant electroplating and tanning processes
