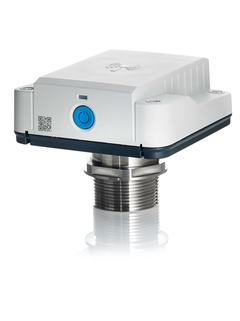

Micropilot FWR30 - The cloud connected radar level sensor

Micropliot FWR30- smart level transmitter

From smart level monitoring to supply chain management

Continuous simplicity from scratch. Our IIoT radar is a smart level transmitter with high-end technology in a cost-effective sensor. Together with the digital services Netilion Value, Netilion Inventory or SupplyCare Hosting, the wireless and battery powered level sensor, ensures reliable and remote level monitoring. The secure and certified solution provides access to information on asset and inventory status from everywhere at any time.

Sizing
Pricing after login and configuration

Compare

Quick selection

Choose from our suggested options

<%label%>
-- selected coding

-- selected label
<%label%>
Looking for more options? Please use the individual configurator to continue.
<%feature%>
-- selected coding

-- selected label
<%feature%>
<%coding%>

<%label%>

Looking for more options? Please use the individual configurator to continue.
Process Connection
<%coding%>

<%label%>

<%coding%>

<%label%>

<%message%>

Optional add-ons

Please use the individual configurator to continue.

Individual configuration

Continue your selection from all possible options

Configure

Benefits
Full transparency in storage and transportation of liquids
Simplified solution from procurement to operations
Secure data transmission combined with a flexible, digital service portfolio
Information access from everywhere at any time

Field of application
Level measurement and tracking of mobile plastic tanks like IBCs

Level measurement and inventory management of plastic tanks which are not located on a plant (different stations)

Level measurement and inventory management of mobile and stationary...

Show more
Level measurement and tracking of mobile plastic tanks like IBCs

Level measurement and inventory management of plastic tanks which are not located on a plant (different stations)

Level measurement and inventory management of mobile and stationary plastic tanks in production – difficult to power supply, fast and easy commissioning, transparency when running out of safety stock

Show less

Features and specifications

Back

Details

Measuring principle

Level radar
Characteristic / Application

- Applications in all industries

- Mobile and stationary plastic tanks (IBC tanks, storage tanks)
Specialities

Commissioning and operation via digital services like "Netilion Value" or "SupplyCare Hosting"
Supply / Communication

Battery powered

Mobile connectivity with NB-IoT, LTE-M or 2G (fallback)
Frequency

80 GHz
Accuracy

±10 mm (0.39 in)
Process temperature

-20°C...+60°C (-4°F…+140°F)
Main wetted parts

Housing: plastic PBT/ PC
Process connection

None
Max. measurement distance

15 m (49 ft)
Communication

Wireless

Mobile connectivity with NB-IoT, LTE-M or 2G (fallback)
Options

Mounting bracket IBC/ pipe

Mounting bracket wall/ ceiling
Application limits

- DK <1.9

- Metallized plastic tanks

Show more
Show less

Documents / Manuals / Software

Download type

Micropilot FWR30
Free space radar

Technical Information (TI)
Micropilot FWR30
Free space radar

Operating Instruction (BA)
Micropilot FWR30
Free space radar

Special Documentation (SD)
Application Note: Micropilot FWR30
Optimized inventory management for auxiliary materials and additives in
production

Industry Solutions (SO)

05/20

German
Application Note: Micropilot FWR30
Optimized inventory management for auxiliary materials and additives in
production

Industry Solutions (SO)

05/20

English
Micropilot FWR30
Micropilot FWR30 - Der cloudbasierte Füllstandssensor

Innovations (IN)

10/19

German
Micropilot FWR30
Micropilot FWR30 - The cloud connected level sensor

Innovations (IN)

01/20

English
Micropilot FWR30
Un capteur de niveau radar IIoT pour la surveillance et la gestion des
applications
mobiles et à distance

Innovations (IN)

01/20

fr
Micropilot FWR30
Sensore di livello radar connesso al cloud.
Appoggia, accendi, misura!

Innovations (IN)

01/20

Italian
Micropilot FWR 30
Batteriebetriebener Füllstandssensor für das Überwachen von entlegenen
und mobilen
Anwendungen

Tender Text

09/20

German
Micropilot
Product Code: FWR30-
Declaration Number: EC_00812_01.20

EU Declaration

German , English

Show more
Show less

Accessories / Spare parts

Filter

Order code

Specification

- Order code 71447849

  Mounting bracket IBC/pipe vertical

  Material: 304. Usage: Mounting FWR30.

  Show details Show less
- Order code 71447853

  Mounting bracket adjustable wall/ceiling

  Material: 304. Usage: Mounting FWR30.

  Show details Show less
