Vibronic measuring principle
Liquiphant with permanent function check is the safe choice for point level detection in liquids

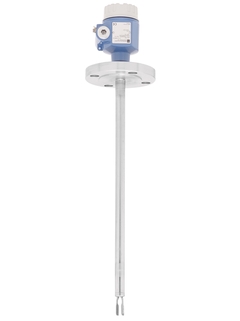

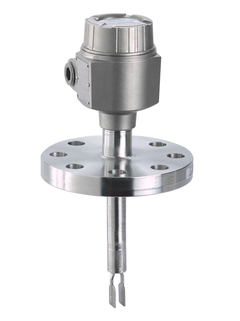

Liquiphant FTL51 is a point level switch with extension tube for use in hazardous areas with all international certificates. Useable in all industries. FTL51 offers functional safety SIL2/SIL3. With the second line of defense highest degree of safety and availability of the device can be guaranteed. Reliable measurement values, not affected by: changing media properties, flow, turbulences, gas bubbles, foam, vibrations or build-up.
Standard products
Technical excellence
Simplicity
Specialized products
Technical excellence
Simplicity
Variable
| FLEX selections | Technical excellence | Simplicity |
|---|---|---|
Fundamental selection Meet your basic measurement needs |
Technical excellence
|
Simplicity
|
Lean selection Handle your core processes easily |
Technical excellence
|
Simplicity
|
Extended selection Optimize your processes with innovative technologies |
Technical excellence
|
Simplicity
|
Xpert selection Master your most challenging applications |
Technical excellence
|
Simplicity
Variable |
-50 °C...+150 °C
(-58 °F...+302 °F)
Vacuum...100 bar
0.5g/cm³(0.4g/cm³ optional)
Loading alternative products
Use in safety systems requiring functional safety to SIL2/SIL3 in accordance with
IEC 61508/IEC 61511-1
International explosion protection certificates and overfill prevention certificate (WHG)
No calibration required, easy to start up
No mechanically...
Point level switch with extension tube for all liquids.
Process connections: Threads, flanges and hygienic process connection (Tri-Clamp)
Temperature: -50 to +150°C (-58 to +302°F)
Pressure: -1 to +100bar (-14.5 to +1,450psi)
Sensor material: 316L, Alloy
International explosion...
Density computer for liquids
Also for use in hazardous areas
Point level switch for all kinds of liquids
with high corrosion-resistant coating
Point level switch for all kinds of liquids
Level and pressure measurement
Vibration Limit Switch
Level limit switch for all liquids.
Suitable for use in hazardous areas, food and pharmaceuticals
Sliding Sleeve
Liquiphant M for density and concentration calculation
Point Level Switch with compact housing
Sliding Sleeve G 1½ A, 1½ NPT
for Unpressurised Operation.
High Pressure Sliding Sleeve
G 1 1/2, NPT 1 1/2
Sliding Sleeve G 1 A, 1 NPT
for Unpressurised Operation.
High Pressure Sliding Sleeve
G 1, NPT 1
Liquiphant FTL5x exchange of Polyester housing F16
Liquiphant M FTL5x - exchange Alu housing F17
Liquiphant FTL5x - Exchange of housing F13
Exchange of sensor on Liquiphant M/S
Selbsttest
Self test
Point level switch for all kinds of liquids
Point level switch for all liquids.
Suitable for use in hazardous areas, food and pharmaceuticals
With Aluminium Housing
Liquiphant M/S, Soliphant M, Liquicap M, Solicap M/S
Liquiphant M, LIquiphant S, Liquiphant FailSafe
Liquiphant M/S, Soliphant M, Liquicap M, Solicap M/S
Liquiphant M/S/FailSafe, Soliphant T/M
LIquiphant M/S/Fail Safe, Soliphant M
Liquiphant M/S, Soliphant M, Liquicap M, Solicap M/S
Liquicap M, Solicap M, Liquphant M/S/FailSafe, Soliphant M
LIquiphant M/S/Fail Safe, Soliphant M, Cerabar M, Deltapilot M
LIquiphant M/S/Fail Safe, Soliphant M
Liquihant M/S, Soliphant M, Liquicap M, Solicap M/S
FM
Drawing No.: 960392-1066 D
Drawing Type: Control Drawing
Vibronic Limit Switches, Liquids
ATEX: II 1 G Ex ia IIC T6 Ga
IECEx: Ex ia IIC T6 Ga
KEMA 99 ATEX 0523 X; IECEx DEK 15.0028X
Vibronic Limit Switches, Liquids
Ex d IIC T6...T1 Ga/Gb
Ex d IIC/IIB T6...T3 Ga/Gb
GYJ16.1468X, GYJ16.1469X (NEPSI)
PROFIBUS PA
ATEX: II 1/2 G Ex ia IIC/IIB T6 Ga/Gb
II 1/2 D Ex ia IIIC T80°C Da/Db
IECEx: Ex ia IIC T6 Ga/Gb
KEMA 99 ATEX 0523; IECEx TUN 04.0017
Ex ia IIC/IIB T3...T6 Ga/Gb
Ex ia IIC T2...T6 Ga/Gb
Ex ia IIIC T80°C Da/Db
TÜV 13.0898 X (INMETRO)
FM
Drawing No.: 960009203 A
Drawing Type: Control Drawing
FM
Drawing No.: 960392-1060 J
Drawing Type: Control Drawing
Approval No.: KEMA 02 ATEX 2169
ATEX II 1/2 G
ATEX II 1/2 D IP65 T80°C
Protection:
Ex ia IIC T2...T6
Ex ia IIB T3...T6
Vibronic Limit Switches, Liquids
Vibronic Limit Switches, Liquids
ATEX: II 1/2 G Ex db eb IIC T6...T1 Ga/Gb, II 1/2 G Ex db eb IIC/IIB
T6...T3 Ga/Gb
IECEx: Ex db eb IIC T6...T1 Ga/Gb, Ex db eb IIC/IIB T6...T3 Ga/Gb
DEKRA 15 ATEX 0088; IECEx DEK 15.0060
Vibronic Limit Switches, Liquids
ATEX: II 1/2 G Ex d IIC T2...T6 Ga/Gb,
II 1/2 G Ex d IIC/IIB T3...T6 Ga/Gb
IECEx: Ex d IIC T2...T6 Ga/Gb,
Ex d IIC/IIB T3...T6 Ga/Gb
KEMA 10 ATEX 0113 X; IECEx KEM 10.0047 X
Ex d IIC/IIB T3...T6 Ga/Gb
Ex d IIC T2...T6 Ga/Gb
TÜV 13.0900 X (INMETRO)
Approval No.: KEMA 00 ATEX 2035
ATEX II 1/2 G
Protection:
EEx de IIC T2...T6
Approval No.: KEMA 99 ATEX 0523
ATEX II 1/2 G
Protection:
EEx ia/ib IIC T2...T6
EEx ia/ib IIB T3...T6
Vibronic Limit Switches, Liquids
Vibronic Limit Switches, Liquids
Vibronic Limit Switches, Liquids
Approval No.: KEMA 99 ATEX 1157
ATEX II 2 G
Protection:
EEx d IIC T2...T6
EEx d IIB T3...T6
Explosion proof Class I, Div. 1, Groups A, B, C, D
Class II, Div. 1, Groups E, F, G
Class III
cCSAus / XP
ATEX: II 1/2 G Ex ia IIC T6 Ga/Gb
II 1/2 G Ex ia IIB T6 Ga/Gb
II 1/2 D Ex ia IIIC T80°C Da/Db
IECEx: Ex ia IIC T6 Ga/Gb
Ex ia IIB T6 Ga/Gb
Ex ia IIIC T80°C Da/Db
KEMA 99 ATEX 0523 X; IECEx DEK 15.0028X
Ex ia IIC T6 Ga/Gb
Ex ia IIB T6 Ga/Gb
Ex iaD 20/21 T80
GYJ16.1419 (NEPSI)
Approval No.: KEMA 99 ATEX 0523
ATEX II 2 G
Protection:
EEx ia/ib IIC T2...T6
EEx ia/ib IIB T3...T6
Approval No.: KEMA 02 ATEX 2169
ATEX II 1/2 G
Protection:
EEx de IIC T2...T6
EEx de IIB T3...T6
Ex de IIC/IIB T3...T6 Ga/Gb
Ex de IIC T2...T6 Ga/Gb
TÜV 13.0895 X (INMETRO)
Approval No.: KEMA 02 ATEX 2169
ATEX II 1/2 G
Protection:
EEx d IIC T2...T6
EEx d IIB T3...T6
Ex nC IIC T6 Gc
Ex nA IIC T6 Gc
Ex ic IIC T6 Gc
Approval No.: EG 01 007-a
ATEX II 3 G
ATEX II 3 D T85°C
Protection:
EEx nL IIC T6
PROFIBUS PA
II 1 G Ex ia IIC T3...T6 Ga
II 1 G Ex ia IIB T3...T6 Ga
KEMA 99 ATEX 5172 X
cCSAus Control Drawing
960392-2060 I (EHC: 960005121)
IS
PROFIBUS PA
Ex ia IIC/IIB T3...T6 Ga/Gb
Ex ia IIC T2...T6 Ga/Gb
Ex ia IIIC T80°C da/Db
TÜV 13.0898 X (INMETRO)
CSA
Drawing No.: 960009587 A
Drawing Type: Control Drawing
IS
Allgemeine bauaufsichtliche Zulassung
Z-65.40-446 (DIBt)
ATEX:
II 2 G Ex ia IIC T6 Gb
II 2 D Ex ia IIIC T80°C Db;
IECEx:
Ex ia IIC T6 Gb
Ex ia IIIC T80°C Db
IECEx EPS 15.0042X; EPS 15 ATEX 1 1011 X
Allgemeine bauaufsichtliche Zulassung
Z-65.11-230 (DIBt)
FM
Drawing No.: 960392-1066 B
Drawing Type: Control Drawing
NI
FM
Drawing No.: 960009203 -
Drawing Type: Control Drawing
CSA
Drawing No.: 960392-2060 F
Drawing Type: Control Drawing
FM
Drawing No.: 960392-1060 H
Drawing Type: Control Drawing
CSA
Drawing No.: 960392-2060 D
Drawing Type: Control Drawing
FM
Drawing No.: 960392-1060 E
Drawing Type: Control Drawing
FM
Drawing No.: 960392-1066 C
Drawing Type: Control Drawing
CSA
Drawing No.: 960008826 A
Drawing Type: Control Drawing
XP
CSA
Drawing No.: 960009587 -
Drawing Type: Control Drawing
IS
FM
Drawing No.: 960392-1066 A
Drawing Type: Installation Drawing
CSA
Drawing No.: 960008826 -
Drawing Type: Control Drawing
XP
FM
Drawing No.: 960392-1060 I
Drawing Type: Control Drawing
CSA
Drawing No.: 960392-2060 G
Drawing Type: Control Drawing
IS
Functional Safety data sheet / Datenblatt zur Funktionalen Sicherheit
Minimum detection (also dry running protection) of all types of liquids.
Level limit switch for all liquids. Suitable for use in hazardous areas,
food and
pharmaceuticals.
Minimum detection (also dry running protection) of all types of liquids
Functional Safety data sheet / Datenblatt zur Funktionalen Sicherheit
Minimum detection (also dry running protection) of all types of liquids.
Overspill protection or operating maxi-mum detection of all types of
liquids in
tanks or piping to satisfy particular safety
systems requirements to IEC 61508 or
DIN V 19250.
Level limit switch for all liquids. Suitable for use in hazardous areas,
food and
pharmaceuticals
Functional Safety data sheet / Datenblatt zur Funktionalen Sicherheit
Level limit switch for all liquids.
Suitable for use in hazardous areas, food and pharmaceuticals
Weld-in adapter G1, G3/4
Dry running protection or operating minimum detection of all types of
liquids.
Point level measuring system
Functional Safety data sheet / Datenblatt zur Funktionalen Sicherheit
Functional Safety data sheet / Datenblatt zur Funktionalen Sicherheit
Point level measuring system
Dry running protection or operating minimum detection of all types of
liquids
Functional Safety data sheet / Datenblatt zur Funktionalen Sicherheit
Functional Safety data sheet / Datenblatt zur Funktionalen Sicherheit
Level limit switch for all liquids.
Suitable for use in hazardous areas, food and pharmaceuticals
Functional Safety data sheet / Datenblatt zur Funktionalen Sicherheit
Level limit switch for all liquids. Suitable for use in hazardous areas,
food and pharmaceuticals
Functional Safety data sheet / Datenblatt zur Funktionalen Sicherheit
RFID TAG
Special Documentation
Level limit switch for all liquids.
Suitable for use in
hazardous areas, food and pharmaceuticals.
Functional Safety data sheet / Datenblatt zur Funktionalen Sicherheit
Dry running protection or operating minimum detection of all types of
liquids
Functional Safety data sheet / Datenblatt zur Funktionalen Sicherheit
Functional Safety data sheet / Datenblatt zur Funktionalen Sicherheit
Functional Safety data sheet / Datenblatt zur Funktionalen Sicherheit
Level limit switch for all liquids. Suitable for use in hazardous areas,
food and
pharmaceuticals
Functional Safety data sheet / Datenblatt zur Funktionalen Sicherheit
Vibronic
Functional Safety data sheet / Datenblatt zur Funktionalen Sicherheit
Point level measuring system
Overfill protection or maximum detection of all types of liquids.
Manufacturer Information for users regarding software updates
(following the NAMUR recommendation 53)
New software version: 1.05.00
Manufacturer Information for users regarding software updates
(following the NAMUR recommendation 53)
New software version: 1.06.00
Manufacturer Information for users regarding software updates
(following the NAMUR recommendation 53)
New software version: 1.12.00
Manufacturer Information for users regarding software updates
(following the NAMUR recommendation 53)
New software version: 1.14.00
Neue Version: HW: 01.03 FW: 01.00.02
Manufacturer Information for users regarding software updates
(following the NAMUR recommendation 53)
New software version: 1.08.00
Manufacturer Information for users regarding software updates
(following the NAMUR recommendation 53)
New software version: 1.12.00
This white paper provides a better understanding of mechanical seal design, fluid controls systems and seal pot installations,
readers can better appreciate the engineering effort that goes into each critical seal application.
Meas. point 5: level switch mash and wort vessel
Meas. point 7: level switch deaerator
Meas. point 10: level switch leakage vessel
Meas. point 4: level switch evaporator
Application 1: Liquiphant
Meas. point 3: dry run protection raw juice pump
Meas. point 5: dry run protection concentrate pump
Meas. point 3: level switch raw milk storage tank
Application 2: Liquiphant
Meas. point 4: level switch mixing tank
Meas. point 9: dry run protection CIP pump
Meas. point 9: dry run protection CIP pump
Meas. point 4: level switch CIP-tank
Application 1: Liquiphant
Meas. point 9: dry run protection CIP pump
Meas. point 5: dry run protection concentrate pump
Meas. point 1: level switch concentrate tanks
Application 2: Liquiphant
Meas. point 1: level switch deaerator
Application 2: Liquiphant
Meas. point 3: pH measuring during milk reception
Meas. point 4: level switch CIP-tank
Application 1: Liquiphant
Meas. point 4: level switch CIP-tank
Application 1: Liquiphant
Meas. point 4: level switch KEG unit
Meas. point 6: level switch fermentation and maturation tanks
Meas. point 7: level switch candle filter
Meas. Point 10: level switch collecting vessel lautertun
Gama de productos para aplicaciones con líquidos y sólidos
Aperçu des produits pour des applications dans des liquides et des
solides en vrac
Product overview for applications in liquids and bulk solids
Product overview for applications in liquids and bulk solids
Produktübersicht für Anwendungen in Flüssigkeiten und Schüttgütern
Protect your profit, protect your people
Grenzstanddetektion in Flüssigkeiten mit dem Messprinzig Vibronik
Point level detection in liquids using the vibronic measuring principle
Using Vibronic point level device Liquiphant FTL5x with density computer
FML621
Micropilot M FMR23 and Levelflex M FMP40 with Liquiphant for overfill
protection
SIL2 rated Liquiphant FTL51 high level switch and Nivotester FTL325P
with push-button test possibility
Memosens Les sondes de pH améliorent les process chez Agnico Eagle
Memosens pH sensors improve processes at Agnico Eagle
Memosens pH-Sensoren verbessern Prozesse bei Agnico Eagle
Liquiphant FTL51 and Nivotester FTL325P (PFM) are used for overfill
protection for critical liquids
Vibrations-Füllstandgrenzschalter für Flüssigkeiten, geeignet für
aggressive Flüssigkeiten in Behältern aller Art
1 Vibration level limit switch for liquids, suitable for aggressive
liquids in vessels of all types
Liquiphant FTL31/33; FTL50/50H/51/51C/51H; FTL70/71; FTL80/81/85
Nivotester FTC325, FTL325N/325P; FTW375W
Minicap FTC260/262
Liquicap FMI21; FMI51/52; FTI51/52
Liquipoint FTE31/33L
PROFIBUS PA,
PROFIBUS System Version: Any
PROFIBUS PA,
PDM Version: 6.0 SP5
PROFIBUS PA,
PDM Version: 8.1, 9.1
PROFIBUS PA,
DeviceCare Version: 1.07.00
Field Xpert - SMT70 Version: 1.05.00
FieldCare Version: 2.15.00
PROFIBUS PA,
DeviceCare Version: 1.07.00
Field Xpert - SMT70 Version: 1.05.00
FieldCare Version: 2.15.00
Animation DE mp4 1280x720
Animation DE flv 480x270
Animation EN mp4 1280x720
Animation EN flv 480x270
Animation ES flv 480x270
Animation ES mp4 1280x720
Animation FR mp4 1280x720
Animation FR flv 480x270
Animation IT mp4 1280x720
Animation IT flv 480x270
Animation TR mp4 1280x720
Product Code: FTL50-, FTL50H-, FTL51-, FTL51C-, FTL51H-
Declaration Number: HE_00725_01.17
Product Code: FTL31-, FTL33-, FTL50-, FTL50H-, FTL51-, FTL51H-, FTL70-, FTL71-, FTM20-, FTM21-, FTM50-, FTM51-
Declaration Number: HE_01109_01.19
Manufacturer Specification: Food hygiene
Product Code: FTL50-, FTL51-, FTL70-, FTL71-
Declaration Number: HE_00733_01.17
Product Code: FTL51-
Declaration Number: HE_00812_01.17
Manufacturer Specification: RoHS
Product Code: FTL51-
Declaration Number: HE_01070_01.18
Manufacturer Specification: Operating conditions
Product Code: FTL51-
Declaration Number: HE_01069_01.18
Manufacturer Specification: Operating conditions
Product Code: FTL31-, FTL33-, FTL50-, FTL50H-, FTL51-, FTL51H-, FTL70-, FTL71-, FTM20-, FTM21-, FTM50-, FTM51-
Declaration Number: HE_01109_02.19
Manufacturer Specification: Food hygiene
Product Code: FTL51-, FTL71-, FTL81-
Declaration Number: HE_00742_01.17
Product Code: FTL50-, FTL51-
Declaration Number: HE_01108_01.19
Product Code: FTL50-, FTL51-, FTL51B-, FTL64-, FTL70-, FTL71-
Declaration Number: HE_01442_01.21
Manufacturer Specification: Operating conditions
Product Code: FTL50-, FTL51-, FTL70-, FTL71-
Declaration Number: HE_00719_01.17
Product Code: FTL51-
Declaration Number: HE_00807_01.17
Manufacturer Specification: RoHS
Product Code: FTW33-, FTL81-, FTL80-, FTL51H-, FTL51-, FTL50H-, FTL50-, FTL330L-, FTL330H-, FTL33-, FTL31-, FTL260-, FTL20H-, FTL20-, FTI52-, FTI51-, FMI52-, FMI51-
Declaration Number: FDA_00058_03.15
Product Code: FTL50-, FTL50H-, FTL51-, FTL51C-, FTL51H-
Declaration Number: EC_00565_03.17
Product Code: FTL50-, FTL50H-, FTL51-, FTL51C-, FTL51H-, FTL70-, FTL71-
Declaration Number: EC_00559_03.17
Product Code: FTL50-, FTL50H-, FTL51-, FTL51C-, FTL51H-, FTL70-, FTL71-
Declaration Number: EC_00455_03.16
Product Code: FTL50H-, FTL51-, FTL51C-, FTL51H-, FTL70-, FTL71-
Declaration Number: EC_00503_02.17
Product Code: FTL50-, FTL50H-, FTL51-, FTL51C-, FTL51H-, FTL70-, FTL71-
Declaration Number: EG 01 007
Product Code: FTL50-, FTL50H-, FTL51-, FTL51C-, FTL51H-
Product Code: FTL50-, FTL50H-, FTL51-, FTL51C-, FTL51H-, FTL70-, FTL71-
Declaration Number: EC_00546_03.17
Product Code: FTL50-, FTL50H-, FTL51-, FTL51C-, FTL51H-, FTL70-, FTL71-
Declaration Number: EC_00560_03.17
Product Code: FTL375N-, FTL50-, FTL51-, FTL70-, FTL71-
Declaration Number: SIL_00069_03.15
Product Code: FTL325P-, FTL50-, FTL51-, FTL70-, FTL71-
Declaration Number: SIL_00070_03.15
Product Code: FTL51-
Declaration Number: SIL_00297_01.19
Product Code: FTL71-, FTL70-, FTL51H-, FTL51C-, FTL51-, FTL50H-, FTL50-, FTL325N-
Declaration Number: SIL_00071_04.20
Product Code: FTL71-, FTL70-, FTL51H-, FTL51C-, FTL51-, FTL50H-, FTL50-, FTL325N-
Declaration Number: SIL_00069_04.20
Product Code: FTL51-
Declaration Number: SIL_00296_01.19
Product Code: FTL51-
Declaration Number: SIL_00298_01.19
Product Code: FTL71-, FTL70-, FTL51H-, FTL51C-, FTL51-, FTL50H-, FTL50-, FTL325P-
Declaration Number: SIL_00070_04.20
Product Code: FTL51-
Declaration Number: SIL_00384_01.20
Product Code: FTL51-
Declaration Number: SIL_00288_01.18
Product Code: FTL50-, FTL51-, FTL71-, FTL325N-, FTL70-
Declaration Number: SIL_00071_03.15
Product Code: FTL51-
Declaration Number: SIL_00289_01.18
Product Code: FTL51-
Declaration Number: SIL_00247_01.18
Product Code: FTL20-, FTL20H-, FTL260-, FTL31-, FTL33-, FTL50-, FTL50H-, FTL51-, FTL51C-, FTL51H-, FTL70-, FTL71-
Region/Country: Russia (TR CU)
Approval Agency: EAC
Approval Number: TC BY_112 11.01. TP004 003 127
Product Code: FTL85-, FTL81-, FTL80-, FTL71-, FTL70-, FTL51H-, FTL51C-, FTL51-, FTL50X-, FTL50H-, FTL50-, FTL330L-, FTL330H-, FTL33-, FTL31-, FTL260-, FTL20H-, FTL20-
Region/Country: Russia (TR CU)
Approval Agency: EAC
Approval Number: TС RU D-DE.MU62.B.02537
Product Code: FTL50-, FTL50H-, FTL51-, FTL51H-, FTL70-, FTL71-
Region/Country: Russia
Approval Agency: Rostekhnadzor
Approval Number: 01-TY-00477-2014
Product Code: FTL70-, FTL51H-, FTL51C-, FTL51-, FTL50H-, FTL50-, FTL375P-, FTL33-, FTL325P-, FTL325N-, FTL31-, FTL260-, FTI52-, FTI51-, FTL71-, FTL80-, FTL81-, FTL825-, FTL85-, FTW23-, FTW31-, FTW32-, FTW325-, FTW33-, FTW360-, NMR81-, NMR84-, 11362Z-, 11363Z-, 11371-, 11375Z-, 11961Z-, FMI21-, FMI51-, FMI52-, FMP50-, FMP51-, FMP52-, FMP53-, FMP54-, FMP55-, FMR10-, FMR20-, FMR50-, FMR51-, FMR52-, FMR53-, FMR530-, FMR532-, FMR533-, FMR54-, FMR540-, FMR60-, FMR62-, FTC325-
Region/Country: Russia (Declaration of Conformity), Russia (TR CU)
Approval Agency: EAC
Approval Number: RU D-DE.MO10.B.05531
Product Code: FTL85-, FTL81-, FTL80-, FTL71-, FTL70-, FTL51C-, FTL51-, FTL50H-, FTL50-, FTL33-, FTL31-, FTL20H-, FTL20-
Region/Country: Russia (TR CU)
Approval Agency: EAC
Approval Number: TC BY_112 11.01. TP020 003 127
Product Code: FTL260-, FMP52-, FMP54-, FMR52-, FMR54-, FMP55-, FMP53-, FMR51-, FMP51-, FMR53-, FMR62-, FTL51-, FMR50-, FTL51H-, FTL50H-, FMP50-, NMR84-, FTL51C-, FMR60-, FTL71-, FTL70-, FTL31-, FTL325N-, FTL325P-, FTL33-, FTL375P-, FTL50-, FTL80-, FTL825-, FTL85-, FTW31-, FTL81-, FTW32-, FTW325-, FTW360-, NMR81-, FTI52-, FMI21-, FMI51-, FMI52-, FMR10-, FMR20-, FMR530-, FMR532-, FMR533-, FMR540-, FTC325-, FTI51-
Region/Country: Russia (Declaration of Conformity), Russia (TR CU)
Approval Agency: EAC
Approval Number: RU D-DE.MO10.B.05528
Product Code: FTL50-, FTL50H-, FTL51-, FTL51C-, FTL51H-, FTL70-, FTL71-
Region/Country: International (IECEx)
Approval Agency: DEKRA
Protection: Ex d IIB Ga/Gb, Ex d IIC Ga/Gb, Ex d e IIB Ga/Gb, Ex d e IIC Ga/Gb
Product Code: FTL50-, FTL50H-, FTL51-, FTL51C-, FTL51H-
Region/Country: China
Approval Agency: NEPSI
Category: zone 2
Protection: Ex ic IIC T6...T3 Gc
Product Code: FTL50-, FTL50H-, FTL51-, FTL51C-, FTL51H-, FTL70-, FTL71-
Region/Country: Brazil
Approval Agency: INMETRO
Category: zone 0,1
Protection: Ex d IIB Txxx°C Ga/Gb, Ex d IIC Txxx°C Ga/Gb
Product Code: FTL50-, FTL50H-, FTL51-, FTL51C-, FTL51H-, FTL70-, FTL71-
Region/Country: Brazil
Approval Agency: INMETRO
Category: zone 0,1
Protection: Ex d e IIB Txxx°C Ga/Gb, Ex d e IIC Txxx°C Ga/Gb
Product Code: FTL50-, FTL50H-, FTL51-, FTL51C-, FTL51H-
Region/Country: Japan
Approval Agency: DEKRA
Protection: Ex ia IIC T3 Ga/Gb
Product Code: FTL50-, FTL50H-, FTL51-, FTL51C-, FTL51H-, FTL70-, FTL71-
Region/Country: USA, Canada
Approval Agency: CSA
Category: I,II,III/1,2/A,B,C,D,F,G
Protection: DIP, XP
Product Code: FTL50-, FTL50H-, FTL51-, FTL51C-, FTL51H-, FTL70-, FTL71-
Region/Country: Europe (ATEX)
Approval Agency: DEKRA
Category: II 1/2 D, II 1/2 G, II 1 G
Protection: Ex ia IIB T6 Ga/Gb, Ex ia IIC T6 Ga, Ex ia IIC T6 Ga/Gb, Ex ia IIIC Da/Db
Product Code: FTL50-, FTL50H-, FTL51-, FTL51C-, FTL51H-, FTL70-, FTL71-
Region/Country: Brazil
Approval Agency: INMETRO
Category: zone 0,1, zone 20,21
Protection: Ex ia IIB Txxx°C Ga/Gb, Ex ia IIC Txxx°C Ga/Gb, Ex ia IIIC Txxx°C Da/Db
Product Code: FTL50-, FTL50H-, FTL51-, FTL51C-, FTL51H-, FTL70-, FTL71-
Region/Country: China
Approval Agency:
Protection: 010|005|025, 010|005|030
Product Code: FTL50-, FTL50H-, FTL51-, FTL51C-, FTL51H-
Region/Country: China
Approval Agency: NEPSI
Protection: Ex nA, Ex nC
Product Code: FTL50-, FTL50H-, FTL51-, FTL51C-, FTL51H-, FTL70-, FTL71-
Region/Country: Europe (ATEX)
Approval Agency: Endress+Hauser
Category: II 3 D, II 3 G
Protection: Ex ic IIC T6...T2 Gc, Ex ic IIC T6...T3 Gc, Ex nA IIC T6...T2 Gc, Ex nA IIC T6...T3 Gc, Ex nC IIC T6...T2 Gc, Ex nC IIC T6...T3 Gc, IIIC T085°C Dc
Product Code: FTL50-, FTL50H-, FTL51-, FTL51C-, FTL51H-, FTL70-, FTL71-
Region/Country: Brazil
Approval Agency: INMETRO
Category: zone 0,1, zone 20,21
Protection: Ex ia IIB Txxx°C Ga/Gb, Ex ia IIC Txxx°C Ga/Gb, Ex ia IIIC Txxx°C Da/Db
Product Code: FTL50-, FTL50H-, FTL51H-, FTL51-, FTL51C-, FTL70-, FTL71-
Region/Country: USA
Approval Agency: FM
Category: I/2/A,B,C,D/T5, I,II,III/1/A,B,C,D,E,F,G/T5, II,III/2/F,G/T5, I/zone 0
Protection: IS, NI, S, AEx ia IIC T5
Product Code: FTL50-, FTL51H-, FTL50H-, FTL51-, FTL51C-, FTL70-, FTL71-
Region/Country: China
Approval Agency: NEPSI
Protection: Ex iaD A20/21 IP6X T080°C, Ex ia IIB T6...T3 Ga/Gb, Ex ia IIC T6...T2 Ga/Gb, Ex ia IIC T6...T3 Ga/Gb
Product Code: FTL50-, FTL50H-, FTL51-, FTL51C-, FTL51H-
Region/Country: China
Approval Agency: NEPSI
Category: zone 0,1
Protection: Ex d IIB T6...T3 Ga/Gb, Ex d IIC T6...T3 Ga/Gb, Ex d e IIB T6...T3 Ga/Gb, Ex d e IIC T6...T3 Ga/Gb
Product Code: FTL50-, FTL50H-, FTL51-, FTL51H-
Region/Country: Japan
Approval Agency: DEKRA
Protection: Ex db IIC T3 Ga/Gb
Product Code: FTL50-, FTL50H-, FTL51-, FTL51C-, FTL51H-, FTL70-, FTL71-
Region/Country: Europe (ATEX)
Approval Agency: DEKRA
Category: II 1/2 G
Protection: Ex d IIB Ga/Gb, Ex d IIC Ga/Gb, Ex d e IIB Ga/Gb, Ex d e IIC Ga/Gb
Product Code: FTL50-, FTL50H-, FTL51-, FTL51C-, FTL51H-
Region/Country: Japan
Approval Agency: DEKRA
Protection: Ex ia IIC T3 Ga/Gb
Product Code: FTL50-, FTL50H-, FTL51-, FTL51C-, FTL51H-, FTL70-, FTL71-
Region/Country: USA, Canada
Approval Agency: CSA
Category: I,II,III/1/A,B,C,D,F,G/T6, I/zone 0
Protection: IS, AEx/Ex/ia/IIC/T6
Product Code: FTL50-, FTL50H-, FTL51-, FTL51C-, FTL51H-, FTL70-, FTL71-
Region/Country: Brazil
Approval Agency: INMETRO
Category: zone 0,1
Protection: Ex d IIB Txxx°C Ga/Gb, Ex d IIC Txxx°C Ga/Gb
Product Code: FTL50-, FTL50H-, FTL51-, FTL51C-, FTL51H-, FTL70-, FTL71-
Region/Country: USA
Approval Agency: FM
Category: I,II,III/1/A,B,C,D,E,F,G /T6
Protection: DIP, XP
Product Code: FTL50-, FTL50H-, FTL51-, FTL51C-, FTL51H-, FTL70-, FTL71-
Region/Country: International (IECEx)
Approval Agency: DEKRA
Protection: Ex ia IIB Ga/Gb, Ex ia IIC Ga, Ex ia IIC Ga/Gb, Ex ia IIIC Da/Db
Product Code: FTL50-, FTL50H-, FTL51-, FTL51C-, FTL51H-
Region/Country: Japan
Approval Agency: DEKRA
Product Code: FTL50-, FTL50H-, FTL51-, FTL51C-, FTL51H-, FTL70-, FTL71-
Region/Country: USA, Canada
Approval Agency: CSA
Category: I,II,III/1/A,B,C,D,F,G/T6, I/zone 0
Protection: IS, AEx/Ex/ia/IIC/T6
Product Code: FTL50-, FTL50H-, FTL51-, FTL51C-, FTL51H-
Region/Country: Japan
Approval Agency: DEKRA
Protection: Ex db IIB T3 Ga/Gb
Product Code: FTL50-, FTL50H-, FTL51-, FTL51C-, FTL51H-
Region/Country:
Approval Agency:
Protection: Ex ia
Product Code: FTL50-, FTL50H-, FTL51-, FTL51C-, FTL51H-, FTL70-, FTL71-
Region/Country: Brazil
Approval Agency: INMETRO
Category: zone 0,1, zone 20,21
Protection: Ex ia IIB Txxx°C Ga/Gb, Ex ia IIC Txxx°C Ga/Gb, Ex ia IIIC Txxx°C Da/Db
Product Code: FML621-, FTL50-, FTL50H-, FTL51-, FTL51C-, FTL51H-, FTL70-, FTL71-
Region/Country: Russia (TR CU)
Approval Agency: EAC
Protection: Ex ib, Ex ia, Ex d e, Ex d, [Ex ia]
Product Code: FTL50-, FTL50H-, FTL51-, FTL51C-, FTL51H-, FTL70-, FTL71-
Region/Country: China
Approval Agency:
Protection: 020|005|020, 020|005|025
Product Code: SIN110-, SIF111-, SIF101-, RN221-, RMA421-, RIA250-, FXN422-, FXN421-, FTL71-, FTL70-, FTL51H-, FTL51C-, FTL51-, FTL50H-, FTL50-, FTL375P-, FTL375N-, FTL372-, FTL370-, FTL325P-, FTL325N-, FTL320-, FTL170Z-, FTL120Z-
Region/Country: Germany
Approval Agency: DIBt
Approval Number: Z-65.11-230
Product Code: FTL50-, FTL51-, FTL51C-
Region/Country: Switzerland
Approval Agency: SVTI
Approval Number: 321.007.16
Product Code: SIN110-, SIF111-, SIF101-, RN221-, RMA422-, RMA421-, RIA450-, RIA250-, FXN422-, FXN421-, FTL71-, FTL70-, FTL51H-, FTL51C-, FTL51-, FTL50H-, FTL50-, FTL375P-, FTL375N-, FTL372-, FTL370-, FTL325P-, FTL325N-, FTL320-, FTL170Z-, FTL120Z-
Region/Country: Germany
Approval Agency: DIBt
Approval Number: Z-65.40-446
Product Code: FTL85-, FTL81-, FTL80-, FTL71-, FTL70-, FTL51H-, FTL51C-, FTL51B-, FTL51-, FTL50H-, FTL50-, FTL41-
Region/Country: Canada (CRN)
Approval Agency: CRN
Product Code: FTL51C-, FTL51B-, FTL51-, FTL50H-, FTL50-, FTL41-, FTL33-, FTL31-, FTI77-, FTI56-, FTI55-, FTI52-, FTI51-, FTI26-, FTC968Z-, FTC262-, FTC260-, FMU44-, FMU43-, FTL51H-, FTL62-, FTL64-, FTL70-, FTL71-, FTL80-, FTL81-, FTL85-, FTM20-, FTM21-, FTM50-, FTM51-, FTM52-, FTW23-, FTW31-, FTW32-, FTW33-, NMR81-, NMR84-, QMW43-, FMU42-, 11362Z-, 11363Z-, 11371-, 11375Z-, 11961Z-, FDU90-, FDU91-, FDU91F-, FDU92-, FDU93-, FDU95-, FMI21-, FMI51-, FMI52-, FMP50-, FMP51-, FMP52-, FMP53-, FMP54-, FMP55-, FMU41-, FMU40-, FMU30-, FMR67-, FMR62-, FMR60-, FMR57-, FMR56-, FMR540-, FMR54-, FMR532-, FMR53-, FMR52-, FMR51-, FMR50-, FMR20-, FMR10-, FMP57-, FMP56-
Approval Agency: TÜV
Product Code: FTL33-, FMD78-, PMP75-, PMP51-, PMP55-, FMB70-, PMC51-, FTL51H-, FTL50H-, FTL51-, FMB50-, FMI52-, FTL50-, FTI52-, FTL81-, FMI51-, FTI51-, FTL31-, FTW23-, FTW33-, FTL80-, PTP33B-, PMP23-, FMD71-
Region/Country: Canada (CRN)
Approval Agency: CRN
Product Code: FTL51H-, FTL50H-, FTL51-, FTL51C-, FTL50-, FML621-
Region/Country: Russia
Approval Agency: Rosstandart
Approval Number: OC.C.31.004.A_35819/1
Product Code: FML621-, FTL50-, FTL50H-, FTL51-, FTL51C-, FTL51H-
Region/Country: Belarus
Approval Agency: BEL
Approval Number: 11103
Product Code: FML621-, FTL50-, FTL50H-, FTL51-, FTL51C-, FTL51H-
Region/Country: Kazakhstan
Approval Agency: KazInMetr
Approval Number: 12132
Product Code: FTL51C-, FTL51H-, FTL70-, FTL71-, FTL51-, FEL57-, FTL375P-, FTL50-, FTL50H-
Region/Country: International
Approval Agency: TÜV
SIL: SIL2/3
Safety function:
Product Code: FTL50-, FTL50H-, FTL51-, FTL51C-, FTL51H-, FTL70-, FTL71-, FTM50-, FTM51-, FTM52-
Region/Country: International
Approval Agency: TÜV
Product Code: FTL51C-, FTL51H-, FTL70-, FTL71-, FTL51-, FEL57-, FTL325P-, FTL50-, FTL50H-
Region/Country: International
Approval Agency: TÜV
SIL: SIL2/3
Safety function:
Product Code: FTL50-, FTL50H-, FTL51-, FTL51C-, FTL51H-
Region/Country: International
Approval Agency: ABS
Product Code: FTL50-, FTL51-, FTL51C-, FTL70-, FTL71-, FTL80-, FTL81-, FTL85-
Region/Country: International
Approval Agency: RM RS
Product Code: FTL50-, FTL50H-, FTL51-, FTL51C-, FTL51H-
Region/Country: International
Approval Agency: DNVGL
Product Code: FTL51H-, FTL50-, FTL50H-, FTL51-, FTL51C-
Region/Country: South Korea
Approval Agency: KR
Product Code: FTL50-, FTL50H-, FTL51-, FTL51C-, FTL51H-, FTL70-, FTL71-
Region/Country: Canada, USA
Approval Agency: CSA
Cover F16 grey, PBTP, gasket
Gasket EPDM. Usage: housing F16 Polyester, FMI21, FMI51/FMI52, FMU30, FTI51/FTI52/ FTI55/FTI56, FTI77, FTL50/FTL51/FTL51C/ FTL51H, FTL70/FTL71, FTL80/FTL81/FTL85, FTW31/FTW32.
Cover F15 316L, gasket
Gasket 67.5x2.9x1.5, VMQ/PTFE. Usage: housing F15, stainless steel.
Cover F15 316L, sight glass, gasket
Sight glass: glass. Gasket 67.5x2.9x1.5, VMQ/PTFE. Usage: housing F15, stainless steel.
Cover F15, sight glass PC, 316L, gasket
Sight glass: Polycarbonate PC. Gasket 67.5x2.9x1.5, VMQ/PTFE. Usage: housing F15 stainless steel, FMB50/FMB51/FMB52/FMB53,PMC51, PMP51/PMP55, not for EEx ia (intrinsically safe).
Cover F27 316L, gasket EPDM
Material: 316L. O-ring 70.0x3.0 EPDM. Usage: stainless steel housing F27, FTL50/FTL51/FTL51C, FTL70/FTL71, FTL80/FTL81/FTL85.
Adapter set housing/electronics FTL5x/7x
Fixing set, consists of: Securing ring 301. Adapter ring PPA. Usage: Liquiphant M/S.
Sealing set EPDM,cover F13/17/18/27,10pc
Consists of: 10x O-ring 70.0x3.0 EPDM.
Gasket 67.5x2.9x1.5 VMQ/PTFE, 5 pieces
Profile gasket cover. Usage: housing F15 stainless steel.
Sealing set FVQM, cover F27, 3 pc.
Consists of: 3x O-ring 70.0x3.0 FVQM. Usage: FTL50/FTL51/FTL51C, FTL70/FTL71, FTL80/FTL81/FTL85.
Cable entry G1/2, gasket
Consists of: adapter M20 > G1/2, 316L. Gasket NBR. Blind plug G1/2. Usage: FTL50/FTL50H/FTL51/FTL51C/FTL51H, FTL70/FTL71, FTL80/FTL81/FTL85.
Cable entry NPT1/2, gasket
Consists of: adapter M20 > NPT1/2, 316L. Gasket NBR. Plug NPT1/2. Usage: FTL50/FTL50H/FTL51/FTL51C/FTL51H, FTL70/FTL71, FTL80/FTL81/FTL85.
Cable entry Pg13.5, gasket
Consists of: adapter M20 > Pg13.5, 304. Gasket NBR. Blind plug Pg13.5. Usage: FTL50/FTL50H/FTL51/FTL51H.
Adapter set cable gland Pg13.5
Screwed cable gland. Usage: housing F16, Polyester, FTL50/FTL50H/FTL51/FTL51H.
Cable gland M20, gasket
Consists of: Cable gland M20. O-ring EPDM. Usage: FTL50/FTL50H/FTL51/FTL51C/FTL51H, FTL70/FTL71, FTL80/FTL81/FTL85.
Plug conn. ISO4400 DIN43650 3+PE Pg11
Gasket + screw. Usage: FTL50/FTL50H/FTL51/FTL51H.
Cover T13 "Terminal" Alu, gasket EPDM
O-ring EPDM. Usage: terminal compartment, housing T13, aluminium.
Electronics FEL51 19-253VAC
Level switch 2-wire. Hardware version 01.00. Software version 01.00.01. Usage: FTL50/FTL50H/FTL51/FTL51C/FTL51H, FTL70/FTL71.
Electronics FEL52 10-55VDC-PNP
Level switch 3-wire. Hardware version 01.00. Software version 01.00.01. Usage: FTL50/FTL50H/FTL51/FTL51C/FTL51H, FTL70/FTL71.
Electronics FEL54 relays DPDT
19-253VAC/19-55VDC. Hardware version 01.00. Software version 01.00.01. Usage: FTL50/FTL50H/FTL51/FTL51C/FTL51H, FTL70/FTL71.
Electronics FEL55 11-36VDC
Level switch 2-wire 4-20mA. Hardware version 01.00. Software version 01.00.01. Usage: FTL50/FTL50H/FTL51/FTL51C/FTL51H, FTL70/FTL71.
Electronics FEL56 NAMUR
Level switch 2-wire. Hardware version 01.01. Software version 01.00.01. Usage: FTL50/FTL50H/FTL51/FTL51C/FTL51H, FTL70/FTL71.
Electronics FEL57 PFM
Level switch 2-wire. Hardware version 01.01. Software version 01.00.01. Usage: FTL50/FTL50H/FTL51/FTL51C/FTL51H, FTL70/FTL71.
Electronics FEL58 NAMUR
Level switch 2-wire + push button. Hardware version 01.02. Software version 01.00.01. Usage: Liquiphant M/S (HT).
Electronics FEL50D Density/Concentration
Hardware version 01.00. Software version 01.00.00. Usage: FTL50/FTL50H/FTL51/FTL51C/FTL51H + FML621. Not for WHG.
Electronics FEL50A,PA,HW02.00,SW01.03.00
PROFIBUS PA. Hardware version 02.00. Software version 01.03.00. Current consumption: 12.5mA+/-1.0mA. Usage: FTL50/FTL50H/ FTL51/FTL51C/FTL51H, FTL70/FTL71.
Lubricant "SYNTHESO GLEP1" (tube a 8g)
Protection cover F16 housing
Usage: FDR56, FMI21, FMI51/FMI52, FQR56, FTI51/FTI52/FTI55/FTI56, FTI77, FTL50/FTL50H/FTL51/FTL51C/FTL51H, FTL70/FTL71, FTL80/FTL81/FTL85, FTM20/FTM21, FTM50/FTM51/FTM52, FTR20, FTW31/FTW32/FTW33.
Weather protection cover F13/F17/F18/F27
Usage: FMI51/FMI52, FTI51/FTI52/FTI55/FTI56, FTI77, FTL50/FTL50H/FTL51/FTL51C/FTL51H, FTL70/FTL71, FTL80/FTL81/FTL85, FTM20/FTM21, FTM50/FTM51/FTM52.
Modification name plate, non Ex
Blank. To fill in the new order code when a non Ex instrument has been modified. Usage: FMB50/FMB51/FMB52, FMR230/FMR231, FMR240/FMR244/FMR245, FMR250,FMR530/FMR532,FTL50/FTL50H/FTL51/ FTL51C/FTL51H, FTL70/FTL71, FTL80/FTL81/ FTL85, NMR81, PMC51, PMC71, PMP51/PMP55.
Sealing ring G3/4, 27x32, FA, 5 pcs.
Process gasket DIN7603-A. Usage: process connection, FMI51/FMI52, FTI51/FTI52, FTI55, FTL31/FTL33, FTW23/FTW33, FTL50/FTL50H/FTL51, FTL80/FTL81, FMP50/FMP51/FMP56, FMR62.
Sealing ring G1, 33x39 FA, 5 pcs.
Process gasket DIN7603-A. Usage: process connection, FMI51/FMI52, FTI51/FTI52, FTI55, FTL31/FTL33, FTW23/FTW33, FTL50/FTL50H/FTL51/FTL51H, FTL80/FTL81, Sliding sleeve G1 316L (52003663), 316L, 3.1 (52011880), AlloyC22, 3.1 (71118691), FTL51, FTL71, FTL81, AlloyC22 (52003664), FTL51, FTL71.
Sealing ring G1-1/2, 48x55 FA, 5 pcs.
Process gasket DIN7603-A. Usage: process connection, FMI21, FMI51/FMI52, FTI51/FTI52, FTI55, FTW31/FTW32, FMP51/FMP57, FMR60/FMR62/FMR67, Sliding sleeve G1-1/2 316L (52003665), 316L,3.1 (52011882), FTL51, FTL71,FTL81, AlloyC4 (52003666), FTL51, FTL71.
Sliding sleeve 100bar G1, 316L
Switch point adjustment. Max 100bar process pressure. :: Disassembly protect. under pressure. Material: 316L. Usage: FTL51, FTL71, FTL81.
Sliding sleeve 100bar G1, 316L, 3.1
Switch point adjustment. Max 100bar process pressure. :: Disassembly protect. under pressure. Material: 316L. Inspection cert. EN10204-3.1 material (316L wetted parts). Usage: FTL51, FTL71, FTL81.
Sliding sleeve 100bar G1, AlloyC4
Switch point adjustment. Max 100bar process pressure. :: Disassembly protect. under pressure. Material: AlloyC4. Usage: FTL51, FTL71.
Sliding sleeve 100bar G1-1/2, 316L
Switch point adjustment. Max 100bar process pressure. :: Disassembly protect. under pressure. Material: 316L. Usage: FTL51, FTL71, FTL81.
Sliding sleeve 100bar G1-1/2, 316L, 3.1
Switch point adjustment. Max 100bar process pressure. :: Disassembly protect. under pressure. Material: 316L. Inspection cert. EN10204-3.1 material (316L wetted parts). Usage: FTL51, FTL71, FTL81.
Sliding sleeve 100bar G1-1/2, AlloyC4
Switch point adjustment. Max 100bar process pressure. :: Disassembly protect. under pressure. Material: AlloyC4. Usage: FTL51, FTL71.
Sliding sleeve 100bar NPT1, 316L
Switch point adjustment. Max 100bar process pressure. :: Disassembly protect. under pressure. Material: 316L. Usage: FTL51, FTL71, FTL81.
Sliding sleeve 100bar NPT1, 316L, 3.1
Switch point adjustment. Max 100bar process pressure. :: Disassembly protect. under pressure. Material: 316L. Inspection cert. EN10204-3.1 material (316L wetted parts). Usage: FTL51, FTL71, FTL81.
Sliding sleeve 100bar NPT1, AlloyC4
Switch point adjustment. Max 100bar process pressure. :: Disassembly protect. under pressure. Material: AlloyC4. Usage: FTL51, FTL71.
Sliding sleeve 100bar NPT1-1/2, 316L
Switch point adjustment. Max 100bar process pressure. :: Disassembly protect. under pressure. Material: 316L. Usage: FTL51, FTL71, FTL81.
Sliding sleeve 100bar NPT1-1/2, 316L,3.1
Switch point adjustment. Max 100bar process pressure. :: Disassembly protect. under pressure. Material: 316L. Inspection cert. EN10204-3.1 material (316L wetted parts). Usage: FTL51, FTL71, FTL81.
Sliding sleeve 100bar NPT1-1/2, AlloyC4
Switch point adjustment. Max 100bar process pressure. :: Disassembly protect. under pressure. Material: AlloyC4. Usage: FTL51, FTL71.
Sliding sleeve G1, 316L
Switch point adjustment pressureless condition. Material: 316L. Usage: FTL51, FTL71, FTL81.
Sliding sleeve G1, 316L, 3.1
Switch point adjustment pressureless condition. Material: 316L. Inspection cert. EN10204-3.1 material (316L wetted parts). Usage: FTL51, FTL71, FTL81.
Sliding sleeve G1, AlloyC22, 3.1
Switch point adjustment. Max 100bar process pressure. :: Disassembly protect. under pressure. Material: AlloyC22. Inspection cert. EN10204-3.1 material (AlloyC22 wetted parts). Usage: FTL51, FTL71, FTL81.
Sliding sleeve G1-1/2, 316L
Switch point adjustment pressureless condition. Material: 316L. Usage: FTL51, FTL71, FTL81.
Sliding sleeve G1-1/2, 316L, 3.1
Switch point adjustment pressureless condition. Material: 316L. Inspection cert. EN10204-3.1 material (316L wetted parts). Usage: FTL51, FTL71, FTL81.
Sliding sleeve G1-1/2, AlloyC22, 3.1
Switch point adjustment. Max 100bar process pressure. :: Disassembly protect. under pressure. Material: AlloyC22. Inspection cert. EN10204-3.1 material (AlloyC22 wetted parts). Usage: FTL51, FTL71, FTL81.
Sliding sleeve NPT1, 316L
Switch point adjustment pressureless condition. Material: 316L. Usage: FTL51, FTL71, FTL81.
Sliding sleeve NPT1, 316L, 3.1
Switch point adjustment pressureless condition. Material: 316L. Inspection cert. EN10204-3.1 material (316L wetted parts). Usage: FTL51, FTL71, FTL81.
Sliding sleeve NPT1, AlloyC22, 3.1
Switch point adjustment. Max 100bar process pressure. :: Disassembly protect. under pressure. Material: AlloyC22. Inspection cert. EN10204-3.1 material (AlloyC22 wetted parts). Usage: FTL51, FTL71, FTL81.
Sliding sleeve NPT1-1/2, 316L
Switch point adjustment pressureless condition. Material: 316L. Usage: FTL51, FTL71, FTL81.
Sliding sleeve NPT1-1/2, 316L, 3.1
Switch point adjustment pressureless condition. Material: 316L. Inspection cert. EN10204-3.1 material (316L wetted parts). Usage: FTL51, FTL71, FTL81.
Sliding sleeve NPT1-1/2, AlloyC22, 3.1
Switch point adjustment. Max 100bar process pressure. :: Disassembly protect. under pressure. Material: AlloyC22. Inspection cert. EN10204-3.1 material (AlloyC22 wetted parts). Usage: FTL51, FTL71.
Weld-in adapter and correspondig sealings
Weld-in adapter RD52, 316L
Flush mount process connection. Material: 316L. Seal: silicone profile gasket. FDA compliant. Usage: FTL20H, FTL33, FTL50/FTL50H/FTL51/FTL51C/FTL51H, FTL330H/330L.
Weld-in adapter RD52, 316L, 3.1
Flush mount process connection. Material: 316L. Inspection cert. EN10204-3.1 material. Seal: silicone profile gasket. FDA compliant. Usage: FTL20H, FTL33, FTL50/FTL50H/FTL51/FTL51C/FTL51H, FTL330H/FTL330L.
Weld-in adapter G1, d=53, 316L, 3.1
Flush mount process connection. Material: 316L. Inspection cert. EN10204-3.1 material Seal: silicone O-ring FDA, EHEDG, 3-A compliant. Usage: FMI51/FMI52, FTI51/FTI52, FTL20H, FTL31/FTL33, FTL50/FTL50H/FTL51/FTL51C/FTL51H, FTL80/FTL81, FTL260, FTL330H/FTL330L, FTW23, FTW33, PMP135, PTP35.
Weld-in adapter G1, d=60, 316L
Flush mount process connection. Material: 316L. Seal: silicone O-ring. FDA, EHEDG, 3-A compliant. Usage: FMI51/FMI52, FTI51/FTI52, FTL20/FTL20H, FTL31/FTL33, FTL50/FTL50H/FTL51/FTL51C/FTL51H, FTL80/FTL81, FTL260, FTW23, FTW33, PMP23, PMP51, PMP135, PTP33B/PTP35. Usage: TM401/TM411, TMR35.
Weld-in adapter G1, d=60, 316L, 3.1
Flush mount process connection. Material: 316L. Inspection cert. EN10204-3.1 material. Seal: silicone O-ring. FDA, EHEDG, 3-A compliant. Usage: FMI51/FMI52, FTI51/FTI52, FTL20H, FTL31/FTL33, FTL50/FTL50H/FTL51/FTL51C/FTL51H, FTL80/FTL81, FTL260, FTW23, FTW33, PMP23, PMP51, PMP135, PTP33B/PTP35. Usage: TM401/TM411, TMR35.
Weld-in adapter G1, adjustable, 316L
Flush mount process connection. Material: 316L. Liquiphant is adjustable. Seal: silicone profile gasket. FDA, EHEDG, 3-A compliant. Usage: FTL20/FTL20H, FTL31/FTL33, FTL50/FTL50H/FTL51/FTL51C/FTL51H, FTL80/FTL81, FTL330H/330L.
Weld-in adapter G1, adjustable,316L, 3.1
Flush mount process connection. Material: 316L. Liquiphant is adjustable. Inspection cert. EN10204-3.1 material. Seal: silicone profile gasket. FDA, EHEDG, 3-A compliant. Usage: FTL20/FTL20H, FTL50/FTL50H/FTL51/FTL51C/FTL51H, FTL31/FTL33, FTL80/FTL81, FTL330H/FTL330L.
O-ring 21.89x2.62 VMQ, FDA, 5 pcs.
Material: silicone VMQ 70. Usage: weld-in adapter G3/4, 316L (52001052) flush mount, 316L, 3.1 (52011897) flush mount, FTL50/FTL50H/FTL51/FTL51H, FTL80/FTL81.
O-ring 21.89x2.62 VMQ, FDA, USP, 3pcs.
Material: silicone VMQ 70. USP Class VI. Usage: weld-in adapter G3/4, 316L (52001052) flush mount, 316L, 3.1 (52011897) flush mount, FTL50/FTL50H/FTL51/FTL51H, FTL80/FTL81.
O-ring 21.89x2.62 EPDM, FDA, USP, 3 pcs.
Material: EPDM 70. USP Class VI, 3-A. Usage: weld-in adapter G3/4, 316L (52001052) flush mount, 316L, 3.1 (52011897) flush mount, FTL50/FTL50H/FTL51/FTL51H, FTL80/FTL81.
O-ring 28.17x3.53 VMQ, FDA, 5 pcs.
Material: silicone VMQ 70. Usage: weld-in adapter G1, 316L, (52001051) flush mount, FMI51/FMI52, FTI51/FTI52, FTL31/FTL33, FTW23/FTW33, PMP23, PMP51, PTP33B, FTL50/FTL50H/FTL51/FTL51H, FTL80/FTL81, QMW43, Weld-in adapter G1, 316L, 3.1, (52011896) flush mount, FMI51/FMI52, FTI51/FTI52, FTL31/FTL33, FTW23/FTW33, PMP23, PMP51, PTP33B, FTL50/FTL50H/FTL51/FTL51H, FTL80/FTL81,QMW43, sliding sleeve FTM21.
O-ring 28.17x3.53 VMQ, FDA, USP, 3 pcs.
Material: silicone VMQ. USP Class VI. Usage: weld-in adapter G1, 316L, (52001051) flush mount, FMI51/FMI52, FTI51/FTI52, FTL31/FTL33, FTW23/FTW33, PMP23, PMP51, PTP33B, FTL50/FTL50H/FTL51/FTL51H, FTL80/FTL81, QMW43, Weld-in adapter G1, 316L, 3.1, (52011896) flush mount, FMI51/FMI52, FTI51/FTI52, FTL31/FTL33, FTW23/FTW33, PMP23, PMP51, PTP33B, FTL50/FTL50H/FTL51/FTL51H, FTL80/FTL81,QMW43, sliding sleeve FTM21.
O-ring 28.17x3.53 EPDM, FDA, USP, 3 pcs.
Material: EPDM 70. USP Class VI, 3-A. Usage: weld-in adapter G1, 316L, (52001051) flush mount, FMI51/FMI52, FTI51/FTI52, FTL31/FTL33, FTW23/FTW33, PMP23, PMP51, PTP33B, FTL50/FTL50H/FTL51/FTL51H, FTL80/FTL81, QMW43, Weld-in adapter G1, 316L, 3.1, (52011896) flush mounted, FMI51/FMI52, FTI51/FTI52, FTL31/FTL33, FTW23/FTW33, PMP23, PMP51, PTP33B, FTL50/FTL50H/FTL51/FTL51H, FTL80/FTL81,QMW43, sliding sleeve FTM21.
Profile gasket 29x36x3.7, FDA, 5 pcs.
Material: silicone VMQ. Usage: Process connect. G1 flush mount, Weld-in adapter G1, 316L, adjustable (52001221), Weld-in adapter G1, 316L, 3.1, adjustable (52011898), FTL31/FTL33, FTL80/FTL81, FTL50/FTL50H/FTL51/FTL51H, Weld-in adapter Rd52, 316L, adjustable, (52001047), 316L, 3.1, adjustable, (52006909), FTL33, FTL50/FTL50H/FTL51/FTL51H.
Profile gasket 29x36x3.7, FDA, USP, 5pcs
Material: silicone VMQ. USP Class VI, FDA. Usage: Process connect. G1 flush mount, Weld-in adapter G1, 316L, adjustable (52001221), Weld-in adapter G1, 316L, 3.1, adjustable (52011898), FTL31/FTL33, FTL80/FTL81, FTL50/FTL50H/FTL51/FTL51H, Weld-in adapter Rd52, 316L, adjustable, (52001047), 316L, 3.1, adjustable, (52006909), FTL33, FTL50/FTL50H/FTL51/FTL51H.
