Ultrasonic measurement
Time-of-Flight

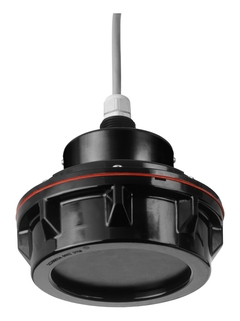

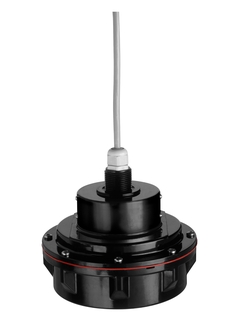

Prosonic FDU93

Time-of-Flight measuring principle

Ultrasonic sensor for level and flow measurement for connection to FMU9x (measuring range up to 25m)

The FDU93 ultrasonic sensor for continuous, non-contact and maintenance-free level measurement of fluids, pastes, sludges and powdery to coarse bulk materials. But also for flow measurement in open channels and measuring weirs. The measurement is unaffected by dielectric constant, density or humidity and also unaffected by build-up due to the self-cleaning effect of sensors. Suited for explosion hazardous areas. Maximum measuring range in liquids 25m (85ft), solids 15m (50ft).

Add to Cart
Configure
Sizing
Pricing after login and configuration

Compare

Benefits
Integrated temperature sensor for Time-of-Flight correction. Accurate measurements are possible, even if temperature changes are present
Suited for rough ambient conditions thanks to separate installation from the transmitter
(up to 300m)
Reduced build-...

Show more
Integrated temperature sensor for Time-of-Flight correction. Accurate measurements are possible, even if temperature changes are present
Suited for rough ambient conditions thanks to separate installation from the transmitter
(up to 300m)
Reduced build-up formation because of the self-cleaning effect
Integrated automatic sensor detection for transmitters FMU90/FMU95 for simple commissioning
Weather resistant and flood-proof (IP 68)
Non-contact measurement method minimizes service requirements
International Dust-Ex and Gas-Ex certificates available

Show less

Field of application
Sensor for continuous, non-contact level measurement of fluids and of bulk materials in silos, on belts, stockpiles and in crushers. Also for flow measurement in open channels and at weirs. Typically used in measurements in low structural heights.

...

Show more
Sensor for continuous, non-contact level measurement of fluids and of bulk materials in silos, on belts, stockpiles and in crushers. Also for flow measurement in open channels and at weirs. Typically used in measurements in low structural heights.

Process connection: Thread

Temperature: -40 to +95°C (-40 to +203°F)

Pressure: +0.7 to +3bar (+10 to +43psi)

Maximum measuring range: Liquids 25m (85ft), solids 15m (50ft)

Blocking distance: 0.6m (2ft)

International explosion protection certificates

Show less

Features and specifications

Back

Details

Measuring principle

Ultrasonic
Characteristic / Application

Separated version with field housing or top hat rail housing for control cabinet instrumentation, 300 m in-between sensor and transmitter
Supply / Communication

4-wire (HART, Profibus DP)
Accuracy

+/- 2 mm + 0.17% of measured distance
Ambient temperature

-40 °C ... 95 °C
(-40 °F ... 203 °F)
Process temperature

-40 °C ... 95 °C
(-40 °F ... 203 °F)
Process pressure absolute / max. overpressure limit

0.7 bar ... 3 bar abs
(10 psi ... 43 psi)
Main wetted parts

UP (unsaturated polyester)
Silicon / Al PTFE coated
Process connection

G / NPT 1"
Blocking distance

0.6 m (2 ft)
Application
Max. measurement distance
Communication

Transmitter:
4...20 mA HART
Profibus DP
Certificates / Approvals

ATEX, FM, CSA, IEC Ex, INMETRO, NEPSI
Options

Second 4...20 mA output
Components

Transmitter:
FMU90, FMU95

Show more
Show less

Measuring principle

Ultrasonic
Characteristic / Application

Separated version with field housing or top hat rail housing for control cabinet instrumentation, 300m in-between sensor and transmitter
Supply / Communication

4-wire (HART , Profibus DP)
Accuracy

+/- 2mm + 0.17% of measured distance
Ambient temperature

-40 °C ... 95 °C
(-40 °F ... 203 °F)
Process temperature

-40 °C ... 95 °C
(-40 °F ... 203 °F)
Process pressure absolute / max. overpressure limit

0.7 bar ... 3 bar abs
(10 psi ... 43 psi)
Main wetted parts

UP (unsaturated polyester)
Silicon / Al PTFE coated
Process connection

G / NPT 1"
Blocking distance

0.6 m (2 ft)
Max. measurement distance

15 m (50 ft)
Communication

Transmitter:
4 ... 20 mA HART
Profibus DP
Certificates / Approvals

ATEX, FM, CSA, IEC Ex, INMETRO, NEPSI
Options

Second 4...20mA output
Components

Transmitter:
FMU90

Show more
Show less

Documents / Manuals / Software

Download type

Filter

Alignment Unit FAU40 Technical Information
Mounting accessory for ultrasonic sensors with separate drive
electronics

Technical Information (TI)
Prosonic S FDU90/91/91F/92/93/95 Technical Information/Operating Instructions
Ultrasonic sensors for non-contact continuous level and flow
measurement

Technical Information (TI)
Prosonic S FDU93, FDU95 EAC: Ex ta/tb IIIC T°C Da/Db Ex tb IIIC T°C Db Safety Instructions
Ultrasonic Level Measurement

Ex Safety Instructions (XA)
Safety Instructions Prosonic S FDU90, FDU91, FDU91F, FDU92, FDU93, FDU95
II 3 G Ex nA IIC T5 Gc (FDU90)
II 3 G Ex nA IIC T6 Gc (FDU91-93/95, FDU91F)
II 3 D Ex tc IIIC Txx°C Dc
EG 05 024

Ex Safety Instructions (XA)
Safety Instructions Prosonic S FDU90, FDU91, FDU91F, FDU92, FDU93, FDU95
Ex ma IIC T5 Gb
Ex ma IIC T6 Gb
Ex tD A20/21 IP65 T
GYJ16.1246 (NEPSI)

Ex Safety Instructions (XA)
Safety Instructions Prosonic S FDU93, FDU95
Ex tD A20/21 IP65 T
GYJ16.1246 (NEPSI)

Ex Safety Instructions (XA)
Safety Instructions Prosonic S FDU93, FDU95
II 1/2 D Ex ta/tb IIIC Txx°C Da/Db IP68
II 2 D Ex tb IIIC Txx°C Db IP68
BVS 05 ATEX E 009

Ex Safety Instructions (XA)
Prosonic S FDU90, FDU91, FDU91F, FDU92, FDU93, FDU95 EAC: Ex ta/tb IIIC T°C Da/Db Ex tb IIIC T°C Db 1Ex ma IIC T6, T5 Gb Safety Instructions
Ultrasonic Level Measurement

Ex Safety Instructions (XA)
Safety Instructions Prosonic S FDU90/91, FDU91F, FDU92/93/95
Ex ma IIC T5 Gb (FDU90)
Ex ma IIC T6 Gb (FDU91/91F/92/93/95)
Ex ta/tb IIIC Txx°C Da/Db IP65
Ex tb IIIC Txx°C Db IP65
TÜV 13.0893 X (INMETRO)

Ex Safety Instructions (XA)
Safety Instructions Prosonic S FDU90, FDU91, FDU91F, FDU92, FDU93, FDU95
II 2 G Ex ma IIC T5 Gb (FDU90)
II 2 G Ex ma IIC T6 Gb (FDU91/91F/92/93/95)
II 1/2 D Ex ta/tb IIIC Txx°C Da/Db IP68
II 2 D Ex tb IIIC Txx°C Db IP68
BVS 05 ATEX E 009

Ex Safety Instructions (XA)
Prosonic S FDU90, FDU91, FDU91F, FDU92, FDU93, FDU95, FDU96
IECEx BVS 08.0012

Ex ma IIC Tx Gb

Ex ta/tb IIIC Txx°C Da/Db IP68

Ex tb IIIC Txx°C Db IP68

Ex Safety Instructions (XA)
Prosonic S FDU93, FDU95, FDU96
IECEx BVS 08.0012

Ex ta/tb IIIC Txx°C Da/Db IP68

Ex tb IIIC Txx°C Db IP68

Ex Safety Instructions (XA)
Prosonic S FDU90, FDU91, FDU91F, FDU92, FDU93, FDU95 EAC: 2Ex nA IIC T6...T3 Gc Ex tc IIIC T55...95°C Dc Safety Instructions
Ultrasonic Level Measurement

Ex Safety Instructions (XA)
Ultrasonic Sensors
Instructions for shortening the sensor cable

Special Documentation (SD)
Mesure de niveau
Aperçu des produits pour des applications dans des liquides et des
solides en vrac

Fields of Activities (FA)

03/19

fr
Füllstandmesstechnik
Produktübersicht für Anwendungen in Flüssigkeiten und Schüttgütern

Fields of Activities (FA)

03/17

German
Level measurement
Product overview for applications in liquids and bulk solids

Fields of Activities (FA)

03/17

English
Catálogo Medición y Detección de nivel
Gama de productos para aplicaciones con líquidos y sólidos

Fields of Activities (FA)

03/17

Spanish
Level measurement
Product overview for applications in liquids and bulk solids

Fields of Activities (FA)

03/17

English
Level measurement in polymer station with ultrasonic level sensor
For the different treatment processes, wastewater plants produce huge
amounts of sewage sludge annually. Since this must be disposed of
through landfill or incineration, it is essential to try to render
residual
sludge as dry as possible.

Case Studies (CS)

06/11

English
Level measurement in pulp slurry in a vertical holding silos of sawdust fines and small wood chips
FMU 90 and FDU 93 ultrasonic system maintains level in vertical holding
silos precisly and elminated weekly cleaning and maintenance
requirements.

Case Studies (CS)

06/10

English
Prosonic S Transmitter via HART to the PlantPAx Process Automation System
System using a ControlLogix 1756 HART Analog Input Module
Integration Document

System Partner (SP)

01/09

English
Prosonic S, FDU 9x (FDU90, FDU91 FDU92 FDU93 FDU95 FDU96)
Ultraschall-Füllstandmessstelle mit Sensor und abgesetztem Messumformer.
Füllstand-Messwertaufnehmer zur kontinuierlichen Füllstandmessung in
offenen
Behältern.

Tender Text

11/16

German
Prosonic S FDU93
Ultrasonic sensor for non-contact level measurement

Tender Text

09/06

us
Prosonic S FDU93
Ultraschallsensor zur berührungslosen Füllstandmessung

Tender Text

06/07

German
Radar or ultrasonic measurement
Animation FR 1280x720 mp4

Animation

07/16

fr
Radar or ultrasonic measurement
Animation DE 960x540 mp4

Animation

07/16

German
Radar or ultrasonic measurement
Animation mp4 EN

Animation

06/15

English
Radar or ultrasonic measurement
Animation flv EN

Animation

06/15

English
Prosonic S
Product Code: FDU93-
Declaration Number: HE_00618_01.17
Manufacturer Specification: RoHS

Manufacturer Declaration

Chinese
Prosonic S
Product Code: FDU90-, FDU91-, FDU91F-, FDU92-, FDU93-, FDU95-

EU Declaration

German , English , fr
Prosonic S
Product Code: FDU90-, FDU91-, FDU91F-, FDU92-, FDU93-, FDU95-, FDU96-
Declaration Number: EG 05 024

EU Declaration

German , English , fr
Prosonic S
Product Code: FDU90-, FDU91-, FDU91F-, FDU92-, FDU93-, FDU95-
Declaration Number: EC_00196_03.16

EU Declaration

German , English , fr
Levelflex, Micropilot, Soliphant T, Soliphant M, Solicap S, Solicap M, Prosonic S, Prosonic M, Nivector, Minicap
Product Code: FMP57-, FMP56-, FMR57-, FMR56-, FMR67-, FTM52-, FTM51-, FTM50-, FTM21-, FTM20-, FTI77-, FTI56-, FTI55-, FTC968Z-, FTC968-, FTC262-, FTC260-, FMU95-, FMU90-, FMU44-, FMU43-, FMU42-, FMU41-, FMU40-, FDU95-, FDU93-, FDU92-, FDU91F-, FDU91-, FDU90-
Region/Country: Russia (Declaration of Conformity), Russia (TR CU)
Approval Agency: EAC
Approval Number: RU D-DE.MO10.B.05554

Miscellaneous

Russian
Levelflex, Micropilot, Soliphant T, Soliphant M, Solicap S, Solicap M, Prosonic S, Prosonic M, Nivector, Minicap
Product Code: FMP57-, FMP56-, FMR57-, FMR56-, FMR67-, FTM52-, FTM51-, FTM50-, FTM21-, FTM20-, FTI77-, FTI56-, FTI55-, FTC968Z-, FTC968-, FTC262-, FTC260-, FMU95-, FMU90-, FMU44-, FMU43-, FMU42-, FMU41-, FMU40-, FDU95-, FDU93-, FDU92-, FDU91F-, FDU91-, FDU90-
Region/Country: Russia (Declaration of Conformity), Russia (TR CU)
Approval Agency: EAC
Approval Number: RU D-DE.MO10.B.05551

Miscellaneous

Russian
Prosonic M, Prosonic S, Prosonic T
Product Code: FMU95-, FMU90-, FMU44-, FMU43-, FMU42-, FMU41-, FMU40-, FMU30-, FDU96-, FDU95-, FDU93-, FDU92-, FDU91-, FDU90-
Region/Country: Russia (TR CU)
Approval Agency: EAC
Approval Number: TC BY_112 11.01. TP020 003 127

Miscellaneous

Russian
Prosonic M, Prosonic S
Product Code: FDU90-, FDU91-, FDU91F-, FDU92-, FDU93-, FDU95-, FMU40-, FMU41-, FMU42-, FMU43-, FMU44-, FMU90-, FMU95-
Region/Country: Russia (TR CU)
Approval Agency: EAC
Approval Number: TС RU D-DE.MU62.B.02534

Miscellaneous

Russian
Prosonic M, Prosonic S
Product Code: FDU90-, FDU91-, FDU92-, FDU93-, FDU95-, FMU40-, FMU41-, FMU42-, FMU43-, FMU44-, FMU90-, FMU95-
Region/Country: Russia (TR CU)
Approval Agency: EAC
Approval Number: TC № RU D-DE.AL32.B.07214

Miscellaneous

Russian
SYSTEM, Prosonic S, Prosonic M, Micropilot S, Micropilot, Liquipoint T, Liquipoint, Liquiphant S, Liquiphant M, Liquiphant FailSafe, Liquiphant, Liquicap T, Liquicap M, Levelflex, Einstabsonde, Dreistabsonde, Doppelstabsonde
Product Code: FMR60-, FMR62-, FMU40-, FMU41-, FMU42-, FMU43-, FMU44-, FTI51-, FTI52-, FTL31-, FTL33-, FTL50-, FTL50H-, FTL51-, FTL51C-, FTL51H-, FTL70-, FTL71-, FTL80-, FTL81-, FTL85-, FTW23-, FTW31-, FTW32-, FTW33-, NMR81-, NMR84-, FMR540-, 11362Z-, 11363Z-, 11371-, 11375Z-, 11961Z-, FDU90-, FDU91-, FDU91F-, FDU92-, FDU93-, FMI21-, FMI51-, FMI52-, FMP50-, FMP51-, FMP52-, FMP53-, FMP54-, FMP55-, FMR10-, FMR20-, FMR50-, FMR51-, FMR52-, FMR53-, FMR532-, FMR54-
Region/Country: Russia (TR CU), Russia (Declaration of Conformity)
Approval Agency: EAC
Approval Number: EAEC_N_C-DE.MU62.B.0006019

Miscellaneous

Russian
Prosonic M, Prosonic S, Prosonic T
Product Code: FMU95-, FMU90-, FMU44-, FMU43-, FMU42-, FMU41-, FMU40-, FMU30-, FDU95-, FDU93-, FDU92-, FDU91F-, FDU91-, FDU90-
Region/Country: Russia (TR CU)
Approval Agency: EAC
Protection: Ex d [ia], Ex ia, Ex m, Ex nA, Ex t, Ex ta/tc, Ex ta/tb

Explosion Protection

Russian
Prosonic S
Product Code: FDU90-, FDU91-, FDU91F-, FDU92-, FDU93-, FDU95-, FDU96-
Approval Agency: FM
Category: I/1,2/A,B,C,D/T5, I/1,2/A,B,C,D/T6, II,III/1,2/E,F,G/T4A

Explosion Protection

English
Prosonic S
Product Code: FDU90-, FDU91-, FDU91F-, FDU92-, FDU93-, FDU95-, FDU96-
Region/Country: International (IECEx)
Approval Agency: DEKRA
Protection: Ex tb IIIC Txxx°C Db, Ex ta/tb IIIC Txxx°C Da/Db, Ex ma IIC T5 Gb, Ex ma IIC T6 Gb

Explosion Protection

English
Prosonic S
Product Code: FDU90-, FDU91-, FDU91F-, FDU92-, FDU93-, FDU95-, FDU96-
Region/Country: Canada, USA
Approval Agency: CSA
Category: I/2/A,B,C,D/T5, I/2/A,B,C,D/T3C, I,II,III/1,2/A,B,C,D,E,F,G/T5, I,II,III/1,2/A,B,C,D,E,F,G/T6, II,III/1/E,F,G/T5, II,III/1/E,F,G/T3C

Explosion Protection

English
Prosonic S
Product Code: FDU90-, FDU91-, FDU91F-, FDU92-, FDU93-, FDU95-
Region/Country: Brazil
Approval Agency: TÜV
Protection: Ex m, Ex tb

Explosion Protection

Portuguese
Prosonic S
Product Code: FDU90-, FDU91-, FDU91F-, FDU92-, FDU93-, FDU95-, FDU96-
Region/Country: Canada, USA
Approval Agency: CSA
Category: I,II,III 1 ABCDEFG
Protection: 6P, Exm

Explosion Protection

English
Prosonic S
Product Code: FDU90-, FDU91-, FDU91F-, FDU92-, FDU93-, FDU95-, FDU96-
Region/Country: Europe (ATEX)
Approval Agency: EXAM (DMT, BVS)
Category: II 2 D, II 2 G, II 1/2 D
Protection: Ex tb IIIC Txxx°C Db, Ex ta/tb IIIC Txxx°C Da/Db, Ex ma IIC T5 Gb, Ex ma IIC T6 Gb

Explosion Protection

German , English
Prosonic S
Product Code: FDU90-, FDU91-, FDU91F-, FDU92-, FDU93-, FDU95-, FDU96-
Approval Agency: FM
Category: I,II,III 1,2 ABCDEFG
Protection: DIP, S

Explosion Protection

English
Prosonic S
Product Code: FDU96-, FDU95-, FDU93-, FDU92-, FDU91F-, FDU91-, FDU90-
Region/Country: Europe (ATEX)
Approval Agency: EXAM (DMT, BVS)
Category: II 2 G, II 1/2 D, II 2 D
Protection: Ex ta/tb IIIC Txx°C Da/Db IP65, Ex tb IIIC Txx°C Db IP65, Ex ma IIC T6/T5 Gb

Explosion Protection

German , English
Prosonic S
Product Code: FDU90-, FDU91-, FDU91F-, FDU92-, FDU93-, FDU95-
Region/Country: Brazil
Approval Agency: TÜV
Protection: Ex m, Ex tb

Explosion Protection

Portuguese
Prosonic S
Product Code: FDU90-, FDU91-, FDU91F-, FDU92-, FDU93-, FDU95-
Region/Country: China
Approval Agency: NEPSI
Category: zone 0, zone 20,21
Protection: Ex tD A20/A21 IP6X IIIC Txxx°C Da/Db, Ex ma II T5, Ex ma II T6

Explosion Protection

Chinese
Micropilot S, Liquiphant S, Levelflex, Micropilot, Liquiphant M, Minicap, Nivector, Prosonic M, Prosonic S, Prosonic T, Pumpenschutz, Solicap M, Solicap S, Soliphant M, Soliphant T, SYSTEM, Liquipoint T, Liquipoint, Liquiphant FailSafe, Liquiphant, Liquicap T, Liquicap M, Einstabsonde, Dreistabsonde, Doppelstabsonde
Product Code: FTL51-, FMP54-, FMP52-, FMR52-, FMR54-, FMP57-, FMP55-, FMP51-, FMR51-, FMR57-, FMP53-, FMR56-, FMP56-, FMR53-, FMR50-, FMP50-, FMU41-, FMU42-, FTL51H-, FTL50H-, FMU43-, FMU44-, FTL51C-, FTL70-, FMU40-, FMI52-, FTL50-, FTL71-, FTM51-, FTI52-, FMR532-, FTL81-, FMI51-, FMR533-, FTI51-, FTL85-, FTM52-, FTL33-, FTL31-, FTI77-, FTI56-, FTI55-, FTC968Z-, FTC262-, FTC260-, FTL80-, FTM20-, FTM21-, FTM50-, FTW23-, FTW31-, FTW32-, FTW33-, FTW360-, NMR84-, NMR81-, 11263-, 11362Z-, 11363Z-, 11375Z-, 11961Z-, FDU90-, FDU91-, FDU91F-, FDU92-, FDU95-, FDU96-, FDU93-, FMI21-, FMU30-, FMR540-, FMR530-, FMR10-, FMR20-
Approval Agency: TÜV

Pressure Equipment

German , English
Prosonic M, Prosonic S, Prosonic T
Product Code: FMU95-, FMU90-, FMU44-, FMU43-, FMU42-, FMU41-, FMU40-, FMU30-, FDU96-, FDU95-, FDU93-, FDU92-, FDU91F-, FDU91-, FDU90-
Region/Country: Kazakhstan
Approval Agency: KazInMetr
Approval Number: 12134

Metrology

Russian
Prosonic S
Product Code: FDU91-, FDU91F-, FDU92-, FDU93-, FDU95-, FDU96-, FMU90-, FMU95-
Region/Country: Slovakia
Approval Agency: SMUB
Approval Number: 144/10-018

Metrology
Prosonic M, Prosonic S
Product Code: FDU91F-, FDU92-, FDU93-, FDU95-, FDU96-, FMU40-, FMU41-, FMU42-, FMU43-, FMU44-, FMU90-, FMU95-
Region/Country: Russia (GOST)
Approval Agency: Rosstandart
Approval Number: OC.C.29.004.A № 50999/1

Metrology

Russian
Prosonic M, Prosonic S, Prosonic T
Product Code: FMU95-, FMU90-, FMU44-, FMU43-, FMU42-, FMU41-, FMU40-, FMU30-, FDU96-, FDU95-, FDU93-, FDU92-, FDU91-, FDU90-
Region/Country: Belarus
Approval Agency: BEL
Approval Number: 9773

Metrology

Russian
Prosonic S
Product Code: FDU90-, FDU91-, FDU91F-, FDU92-, FDU93-, FDU95-, FDU96-, FMU90-, FMU95-
Region/Country: Slovakia
Approval Agency: SMUB
Approval Number: 018/144/10

Metrology
Prosonic S
Product Code: FDU90-, FDU91-, FDU91F-, FDU92-, FDU93-, FDU95-
Region/Country: Canada
Approval Agency: CSA

Ordinary Location Product Safety

English

Show more
Show less

Accessories / Spare parts

Filter

Order code

Specification

- Order code

  Unit is not repairable.

  Show details Show less

Show more
Show less

Predecessor
- Prosonic FDU83
- FMU801

Success stories

News
Unstable measurement in your ammonia separator?

Our Levelflex FMP is the reliable level measurement sensor for hazardous liquids such as ammonia. Find out more about how to achieve a safe and efficient chemical process at the same.
Unstable measurement in your ammonia separator?

News
How can you effectively keep fractionation under control?

Guided wave radar compared to mechanical gauges is one solution for your level measurement to keep your olefin fractionation effectively under control and prevent unplanned shutdowns.
Read the full story

News
Effizienz virtuell erleben - Ihr Weg zu realem Nutzen

Sparen Sie Zeit, Geld und Ressourcen mit einem Partner für alles.
Read the full story
Upcoming events
19.11.2019 - 22.11.2019

Service-Praxisschulung Kompakt

Wien

Upcoming events
22.06.2020 - 26.06.2020

Certified Training for PROFIBUS DP/PA Engineer

With the help of actual hands-on tasks you will learn how PROFIBUS fieldbus technology works in detail. At the end of the course you will be able to design and commission a PROFIBUS fieldbus network.

Ultrasonic measurementTime-of-FlightProsonic FDU93

Ultrasonic sensor for level and flow measurement for connection to FMU9x (measuring range up to 25m)

Benefits

Field of application

Features and specifications

Details

Measuring principle

Characteristic / Application

Supply / Communication

Accuracy

Ambient temperature

Process temperature

Process pressure absolute / max. overpressure limit

Main wetted parts

Process connection

Blocking distance

Application

Max. measurement distance

Communication

Certificates / Approvals

Options

Components
