Microwave barrier receiver
Soliwave FDR57

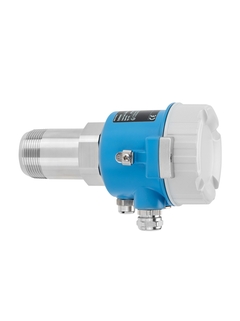

Soliwave FDR57 ©Endress+Hauser

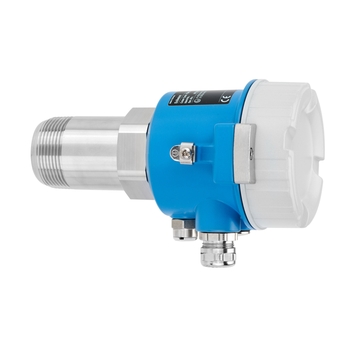

Soliwave FDR57 ©Endress+Hauser

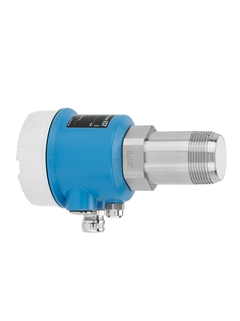

  • Soliwave FDR57
  • Soliwave FDR57

Transceiver for non-contact point level detection and bulk flow monitoring

The Soliwave microwave barrier uses a non-contact procedure for detection of point levels and bulk flow (flow / no flow, trend). The device is also suitable for detecting and counting objects, detection of deposits as well as monitoring of filling processes and material transfer points. It can be installed in containers, conduits, hoppers, filling stations, shafts, filters or on free fall shafts. It is possible to take a measurement through non-metallic container materials from the outside.

  • Simple products

  • Easy to select, install and operate

Technical excellence

Simplicity

  • Standard products

  • Reliable, robust and low-maintenance

Technical excellence

Simplicity

  • High-end products

  • Highly functional and convenient

Technical excellence

Simplicity

  • Specialized products

  • Designed for demanding applications

Technical excellence

Simplicity

Variable

FLEX selections Technical excellence Simplicity
  • F
  • L
  • E
  • X

Fundamental selection

Meet your basic measurement needs

Technical excellence
Simplicity
  • F
  • L
  • E
  • X

Lean selection

Handle your core processes easily

Technical excellence
Simplicity
  • F
  • L
  • E
  • X

Extended selection

Optimize your processes with innovative technologies

Technical excellence
Simplicity
  • F
  • L
  • E
  • X

Xpert selection

Master your most challenging applications

Technical excellence
Simplicity

Variable

  • Specs at a glance

    • Process temperature

      Non-contact installation: any

      Within installation:
      -40 °C ... +70 °C
      (-40 °F ... +158 °F)

      With HT-Adapter:
      up to +450 °C (+842 °F)

    • Process pressure absolute / max. overpressure limit

      Non-contact installation: any

      Within installation:
      0.5 bar ... 6.8 bar
      (7.2 psi ... 99 psi) abs.

      With HD-Adapter:
      up to +21 bar (+305 psi) abs.

    • Min. density of medium

      Solid weight: > 10 g/l

Quick selection

Choose from our suggested options
Sales price
    -- selected coding
    -- selected label
    99.999,00
    <%label%>
    -- selected coding
    -- selected label
    99.999,00
    <%feature%>
  • Process Connection
      <%label%>
      99.999,00
      <%label%>
      99.999,00

  • <%message%>

FDR57
Show details Hide details
Show details
Back to Quick Selection
  • <%feature%>
    <%coding%>
    <%label%>
pc
Loading price
Prices temporarily unavailable
from CHF 803.-
  • Optional add-ons
Please use the individual configurator to continue
or

Individual configuration

Continue your selection from all possible options

Additional components

  • Benefits

    • Simple assembly with R 1½, 1½ NPT thread or G 1½ (with lock nut)

    • Mechanically robust construction ensures cost savings over the whole life cycle of the product: No wear and tear, process-wetted ceramic sensor diaphragm (optional), long serviceable life...

  • Field of application

    Non-contact (wear- and maintenance-free) limit detection (min/max) and flow monitoring (flow/no flow, trend) for bulk solids.

    • Detecting, counting and positioning of objects

    • Detection and analysis of deposits and contamination in filters

    • Monitoring of...

Features and specifications

Back

Details

  • Measuring principle

    Microwave barrier

  • Characteristic / Application

    Transceiver

    Non-contact point level detection and flow monitoring

    Detecting, counting and positioning of objects

    Monitoring of material transfer points

    Detection and analysis of deposits and contamination


    Installation:
    Non-contact installation (tranmission window) or front-flush installation (contact)

  • Specialities

    With optional integrated bulk flow monitoring

    Parallel mode with up to 5 channels

    Detection range limit: max. 100 m

    Detection range flow: max. 10 m, depending on bulk solids

  • Supply / Communication

    Via process transmitter with control unit Nivotester FTR525

  • Ambient temperature

    -40 °C...+70 °C

    (-40 °F...+158 °F)

  • Process temperature

    Non-contact installation: any


    Within installation:

    -40 °C ... +70 °C

    (-40 °F ... +158 °F)


    With HT-Adapter:

    up to +450 °C (+842 °F)

  • Process pressure absolute / max. overpressure limit

    Non-contact installation: any


    Within installation:

    0.5 bar ... 6.8 bar

    (7.2 psi ... 99 psi) abs.


    With HD-Adapter:

    up to +21 bar (+305 psi) abs.

  • Min. density of medium

    Solid weight: > 10 g/l

  • Main wetted parts

    Non-contact installation:

    no wetted parts


    Within installation:

    316Ti, PTFE or Ceramic

  • Process connection

    Threads:

    1-1/2" R, 1-1/2" G, 1-1/2" NPT

  • Communication

    Via process transmitter with control unit Nivotester FTR525

  • Certificates / Approvals

    ATEX, CSA C/US, IEC Ex

  • Design approvals

    EN10204-3.1

  • Options

    Sight glass

    High temperature adapter

    High pressure adapter

    Installation bracket

    FAR50, FAR51, FAR52, FAR53, FAR54, FAR55

  • Components

    Transmitter: FQR57

    Process transmitter: FTR525

  • Application limits

    Solid weight: < 10 g/l

Documents / Manuals / Software

Accessories / Spare parts

Nr
Order code
Specification
    • Order code 71517822

      Plug microwave permeable SAL/SPP

      Material: PE-UHMW. Usage: Adapter SAL/SPP, FDR56/FDR57, FQR56/FQR57, FTR20.

    • Order code 71517824

      Plug microwave permeable SALS/SPPS

      Material: PE-UHMW. Usage: Adapter SALS/SPPS, FDR56/FDR57, FQR56/FQR57, FTR20.

    • Order code 71381853

      Plug connector M12 4-pole,conct.cable 2m

      Usage: FDR56/57, FQR56/57, FTR20.

    • Order code 71381870

      Plug connector M12 4-pole,conct.cable 5m

      Usage: FDR56/57, FQR56/57, FTR20.

    • Order code 71381872

      Plug connector M12 4-pole

      Usage: FDR56/57, FQR56/57, FTR20.

    • Order code 71381877

      Harting HAN8D plug conct.,conct.cable 2m

      Usage: FDR56/57, FQR56/57, FTR20.

    • Order code 71381879

      Harting HAN8D plug conct.,conct.cable 5m

      Usage: FDR56/57, FQR56/57, FTR20.

    • Order code 71381882

      Harting HAN8D plug connector

      Usage: FDR56/57, FQR56/57, FTR20.

    • Order code 71006345

      Flange DN40 PN6, Rp1-1/2, Alu

      Hole circle: 100mm. Usage: FDR50, FDR56/FDR57, FQR50, FQR56/FQR57, FTR20.

    • Order code 71006348

      Flange DN40 PN40, Rp1-1/2, 316Ti

      EN1092-1, A. Usage: FDR50, FDR56/FDR57, FQR50, FQR56/FQR57, FTR20.

    • Order code 71108383

      Flange DN40 PN40, Rp1-1/2, 316Ti, 3.1

      EN1092-1,A. Inspection cert. EN10204-3.1 material (316Ti wetted parts). Usage: FDR50, FDR56/FDR57, FQR50, FQR56/FQR57, FTR20.

    • Order code 71381884

      Flange DN40 PN40, G1-1/2, 316Ti

      Usage: FDR56/FDR57, FQR56/FQR57, FTR20.

    • Order code 71381885

      Flange DN40 PN40, G1-1/2, 316Ti, 3.1

      Usage: FDR56/FDR57, FQR56/FQR57, FTR20.

    • Order code 71006350

      Flange DN50 PN16, Rp1-1/2, 316Ti

      EN1092-1, A. Usage: FDR50, FDR56/FDR57, FQR50, FQR56/FQR57, FTR20.

    • Order code 71108388

      Flange DN50 PN16, Rp1-1/2, 316Ti, 3.1

      EN1092-1,A. Inspection cert. EN10204-3.1 material (316Ti wetted parts). Usage: FDR50, FDR56/FDR57, FQR50, FQR56/FQR57, FTR20.

    • Order code 71381887

      Flange DN50 PN16, G1-1/2, 316Ti

      Usage: FDR56/FDR57, FQR56/FQR57, FTR20.

    • Order code 71381888

      Flange DN50 PN16, G1-1/2, 316Ti, 3.1

      Usage: FDR56/FDR57, FQR56/FQR57, FTR20.

    • Order code 71006352

      Flange DN100 PN16, Rp1-1/2, 316Ti

      EN1092-1, A. Usage: FDR50, FDR56/FDR57, FQR50, FQR56/FQR57, FTR20.

    • Order code 71108390

      Flange DN100 PN16, Rp1-1/2, 316Ti, 3.1

      EN1092-1,A. Inspection cert. EN10204-3.1 material (316Ti wetted parts). Usage: FDR50, FDR56/FDR57, FQR50, FQR56/FQR57, FTR20.

    • Order code 71381890

      Flange DN100 PN16, G1-1/2, 316Ti

      Usage: FDR56/FDR57, FQR56/FQR57, FTR20.

    • Order code 71381891

      Flange DN100 PN16, G1-1/2, 316Ti, 3.1

      Usage: FDR56/FDR57, FQR56/FQR57, FTR20.

    • Order code 71006346

      Flange 1-1/2" 150lbs, NPT1-1/2, Alu

      Hole circle: 98.6mm. Usage: FDR50, FDR56/FDR57, FQR50, FQR56/FQR57, FTR20.

    • Order code 71006349

      Flange 1-1/2" Cl.150, NPT1-1/2, 316Ti

      ASME B16.5. Usage: FDR50, FDR56/FDR57, FQR50, FQR56/FQR57, FTR20.

    • Order code 71108387

      Flange 1-1/2" Cl.150,NPT1-1/2,316Ti,3.1

      ASME B16.5. Inspection cert. EN10204-3.1 material (316Ti wetted parts). Usage: FDR50, FDR56/FDR57, FQR50, FQR56/FQR57, FTR20.

    • Order code 71006351

      Flange NPS 2" Cl.150, NPT1-1/2, 316Ti

      ASME B16.5. Usage: FDR50, FDR56/FDR57, FQR50, FQR56/FQR57, FTR20.

    • Order code 71108389

      Flange 2" Cl.150, NPT1-1/2,316Ti, 3.1

      ASME B16.5. Inspection cert. EN10204-3.1 material (316Ti wetted parts). Usage: FDR50, FDR56/FDR57, FQR50, FQR56/FQR57, FTR20.

    • Order code 71006353

      Flange NPS 4" CL.150, NPT1-1/2, 316Ti

      ASME B16.5. Usage: FDR50, FDR56/FDR57, FQR50, FQR56/FQR57, FTR20.

    • Order code 71108391

      Flange 4" Cl.150, NPT1-1/2,316Ti, 3.1

      ASME B16.5. Inspection cert. EN10204-3.1 material (316Ti wetted parts). Usage: FDR50, FDR56/FDR57, FQR50, FQR56/FQR57, FTR20.

    • Order code 71026443

      Welded fitting DN50, 200oC

      Screw assembling. Material: 316Ti, silicone. Usage: FDR50, FDR56/FDR57, FQR50, FQR56/FQR57, FTR20.

    • Order code 71026446

      Welded fitting DN50, 10bar, 200oC

      Screw assembling. Material: 316Ti/321, silicone. Usage: FDR50, FDR56/FDR57, FQR50, FQR56/FQR57, FTR20.

    • Order code 71026444

      Welded fitting DN80, 200oC

      Screw assembling. Material: 316Ti, silicone. Usage: FDR50, FDR56/FDR57, FQR50, FQR56/FQR57, FTR20.

    • Order code 71026447

      Welded fitting DN80, 10bar, 200oC

      Screw assembling. Material: 316Ti/321, silicone. Usage: FDR50, FDR56/FDR57, FQR50, FQR56/FQR57, FTR20.

    • Order code 71026445

      Welded fitting DN100, 200oC

      Screw assembling. Material: 316Ti, silicone. Usage: FDR50, FDR56/FDR57, FQR50, FQR56/FQR57, FTR20.

    • Order code 71026448

      Welded fitting DN100, 10bar, 200oC

      Screw assembling. Material: 316Ti/321, silicone. Usage: FDR50, FDR56/FDR57, FQR50, FQR56/FQR57, FTR20.

    • Order code 71026449

      Flanged fitting DIN/EN DN50, 25bar,200oC

      Screw assembling on counter flange. Material: 316Ti, PTFE, C4400. Usage: FDR50, FDR56/FDR57, FQR50, FQR56/FQR57, FTR20.

    • Order code 71026450

      Flanged fitting DIN/EN DN80, 25bar,200oC

      Screw assembling on counter flange. Material: 316Ti, PTFE, C4400. Usage: FDR50, FDR56/FDR57, FQR50, FQR56/FQR57, FTR20.

    • Order code 71026451

      Flanged fitting DIN/EN DN100,25bar,200oC

      Screw assembling on counter flange. Material: 316Ti, PTFE, C4400. Usage: FDR50, FDR56/FDR57, FQR50, FQR56/FQR57, FTR20.

    • Order code 71381894

      HP adapter G1-1/2/G1-1/2, 316Ti

      Usage: FDR56/FDR57, FQR56/FQR57, FTR20.

    • Order code 71381898

      HP adapter G1-1/2/G1-1/2, 316Ti, 3.1

      Usage: FDR56/FDR57, FQR56/FQR57, FTR20.

    • Order code 71381899

      HP adapter NPT1-1/2/G1-1/2, 316Ti

      Usage: FDR56/FDR57, FQR56/FQR57, FTR20.

    • Order code 71381904

      HP adapter NPT1-1/2/G1-1/2, 316Ti, 3.1

      Usage: FDR56/FDR57, FQR56/FQR57, FTR20.

    • Order code 71113441

      HT-adapter R1-1/2 + Rp1-1/2, 316Ti

      Usage: FDR50, FDR56/FDR57, FQR50, FQR56/FQR57, FTR20.

    • Order code 71113449

      HT-adapter NPT1-1/2, 316Ti

      Usage: FDR50, FDR56/FDR57, FQR50, FQR56/FQR57, FTR20.

    • Order code 71478114

      HT-adapter R1-1/2 + Rp1-1/2, 316Ti, 3.1

      Usage: FDR50, FDR56/FDR57, FQR50, FQR56/FQR57, FTR20.

    • Order code 71478115

      HT-adapter NPT1-1/2, 316Ti, 3.1

      Usage: FDR50, FDR56/FDR57, FQR50, FQR56/FQR57, FTR20.

    • Order code 71113450

      Extension 225mm, HT-adapter R1-1/2 +

      Usage: FDR50, FDR56/FDR57, FQR50, FQR56/FQR57, FTR20.

    • Order code 71113451

      Extension 325mm, HT-adapter R1-1/2 +

      Usage: FDR50, FDR56/FDR57, FQR50, FQR56/FQR57, FTR20.

    • Order code 71113452

      Extension 525mm, HT-adapter R1-1/2 +

      Usage: FDR50, FDR56/FDR57, FQR50, FQR56/FQR57, FTR20.

    • Order code 71113453

      Extension 225mm, HT-Adapter NPT1-1/2

      Usage: FDR50, FDR56/FDR57, FQR50, FQR56/FQR57, FTR20.

    • Order code 71113454

      Extension 325mm, HT-adapter NPT1-1/2

      Usage: FDR50, FDR56/FDR57, FQR50, FQR56/FQR57, FTR20.

    • Order code 71113455

      Extension 525mm, HT-adapter NPT1-1/2

      Usage: FDR50, FDR56/FDR57, FQR50, FQR56/FQR57, FTR20.

    • Order code 71209101

      Sightglass disc DN50, 25bar, 200oC

      Installation on flange fitting. Material: borosilicate glass. Usage: FDR50, FDR56/FDR57, FQR50, FQR56/FQR57, FTR20.

    • Order code 71209114

      Sightglass disc DN50, 10bar, 200oC

      Installation on weld-in fitting. Material: borosilicate glass. Usage: FDR50, FDR56/FDR57, FQR50, FQR56/FQR57, FTR20.

    • Order code 71209118

      Sightglass disc DN50, 200oC

      Installation on weld-in fitting. Material: borosilicate glass. Usage: FDR50, FDR56/FDR57, FQR50, FQR56/FQR57, FTR20.

    • Order code 71209100

      Sightglass disc DN80, 25bar, 200oC

      Installation on flange fitting. Material: borosilicate glass. Usage: FDR50, FDR56/FDR57, FQR50, FQR56/FQR57, FTR20.

    • Order code 71209111

      Sightglass disc DN80, 10bar, 200oC

      Installation on weld-in fitting. Material: borosilicate glass. Usage: FDR50, FDR56/FDR57, FQR50, FQR56/FQR57, FTR20.

    • Order code 71209116

      Sightglass disc DN80, 200oC

      Installation on weld-in fitting. Material: borosilicate glass. Usage: FDR50, FDR56/FDR57, FQR50, FQR56/FQR57, FTR20.

    • Order code 71209121

      Sightglass disc DN80, 6bar, 200oC

      Installation on screw-type fitting. Material: borosilicate glass. Usage: FDR50, FDR56/FDR57, FQR50, FQR56/FQR57, FTR20.

    • Order code 71209097

      Sightglass disc DN100, 25bar, 200oC

      Installation on flange fitting. Material: borosilicate glass. Usage: FDR50, FDR56/FDR57, FQR50, FQR56/FQR57, FTR20.

    • Order code 71209107

      Sightglass disc DN100, 10bar, 200oC

      Installation on weld-in fitting. Material: borosilicate glass. Usage: FDR50, FDR56/FDR57, FQR50, FQR56/FQR57, FTR20.

    • Order code 71209115

      Sightglass disc DN100, 200oC

      Installation on weld-in fitting. Material: borosilicate glass. Usage: FDR50, FDR56/FDR57, FQR50, FQR56/FQR57, FTR20.

    • Order code 71209119

      Sightglass disc DN100, 6bar, 200oC

      Installation on screw-type fitting. Material: borosilicate glass. Usage: FDR50, FDR56/FDR57, FQR50, FQR56/FQR57, FTR20.

    • Order code 52017501

      Mounting bracket FQR5x/FDR5x, Aluminium

      Usage: FDR50, FDR56/FDR57, FQR50, FQR56/FQR57, FTR20.

    • Order code 52017502

      Mounting bracket FQR5x/FDR5x, Plastics

      Usage: FDR50, FDR56/FDR57, FQR50, FQR56/FQR57, FTR20.

    • Order code 71516947

      Weld-in adapter with mounting arm SPP

      Type SPP with microwave permeable PE-UHMW plug (extended). Plastic mounting bracket. Usage: FDR56/FDR57, FQR56/FQR57, FTR20.

    • Order code 71516949

      Weld-in adapter with mounting arm SAL

      Type SAL with microwave permeable PE-UHMW plug (extended). Aluminium mounting bracket. Usage: FDR56/FDR57, FQR56/FQR57, FTR20.

    • Order code 71516952

      Weld-in adapter with mounting arm SALS

      Type SALS with microwave permeable PE-UHMW plug. Aluminium mounting bracket. Usage: FDR56/FDR57, FQR56/FQR57, FTR20.

    • Order code 71516954

      Weld-in adapter with mounting arm SPPS

      Type SPPS with microwave permeable PE-UHMW plug. Plastic mounting bracket. Usage: FDR56/FDR57, FQR56/FQR57, FTR20.

    • Order code 71454446

      Weather protect. cover 316L, Mw. barr.

      Weather protection cover 316L for Microwave barrier. Adjustable installation situation. Usage: FDR56/FDR57, FQR56/FQR57, FTR20.

Success stories

Compare products
We use cookies to store information on your device which helps us to customize and improve your interactions with us. More on cookies can be found in the privacy policy.
