Solicap FTI55

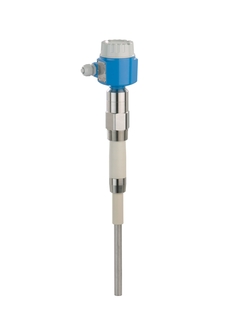

Solicap FTI55 build-up compensation ©Endress+Hauser

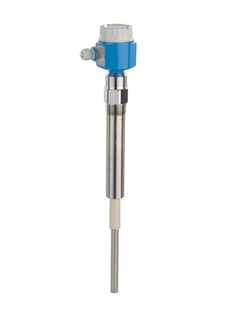

Solicap FTI55 inactive length ©Endress+Hauser

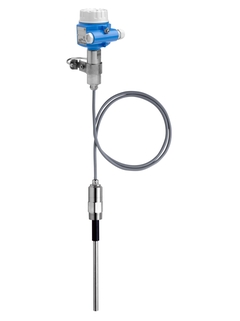

Solicap FTI55 separate housing ©Endress+Hauser

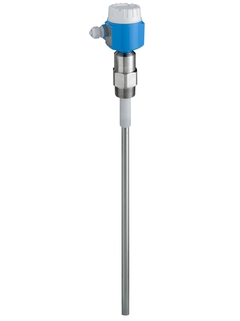

Solicap FTI55 ©Endress+Hauser

Capacitance point level detection with active build-up compensation

Point level detection for fine-grained to coarse-grained bulk solids

Solicap FTI55 is a fully/partly insulated and robust rod probe for point level detection of fine-grained to coarse-grained bulk solids. It offers maximum reliability due to its active build-up compensation and is suited for a wide range of applications thanks to numerous certificates and approvals. Due to its robust construction, it can also be used to provide accurate measurements in applications with very high lateral loads up to 300Nm.

  • Benefits

    • Highest safety and reliability due to robust design for demanding process conditions

    • Cost savings thanks to easy and fast commissioning as calibration is performed at the press of a button

    • Universal application thanks to wide range of certificates and...

  • Field of application

    For applications with very high lateral loads up to 300Nm. Fieldgate and Solicap represent a solution for material provisioning and logistical optimization (inventory control)

    • Process connections: Flanges and threads

    • Measurement range: 200 to 4,000mm (4...

Features and specifications

Back

Details

  • Measuring principle

    Capacitive Solid

  • Characteristic / Application

    Fully / partly isulated rod probe for small-grain / large-grain bulk solids
    Simple calibration
    Suitable for abrasive media
    Very robust probe

  • Specialities

    Inactive length

    Active build-up compensation

    High lateral loading

    Extremely robust probe

  • Supply / Communication

    19 ... 253V AC
    10 ... 55V DC-PNP
    19...253V AC bzw 10...55V DC
    8/16mA, 11 ... 36V DC
    PFM
    3-wire

  • Ambient temperature

    -50°C ... 70°C
    (-58°F ... 158°F)

  • Process temperature

    -50°C ... 180°C
    (-58°F ... 356°F)

  • Process pressure absolute / max. overpressure limit

    Vacuum ... 25 bar
    (Vacuum ... 362 psi)

  • Main wetted parts

    PE, PPS, 316L, Steel

  • Process connection

    Thread R1 1/2, NPT1 1/2

    Flanges from DN50.../ASME 2".../JIS...

  • Sensor length

    0.2m ... 4m
    (8" ... 157")

    Inactive length: 0.1m ...1m

    (2" ... 39")

  • Communication

    2- wire 19-253 VAC

    DC PNP
    Relais DPDT
    PFM
    3-wire
    8/16 mA

  • Certificates / Approvals

    ATEX, FM, CSA, IEC Ex, TIIS, NEPSI

  • Safety approvals

    SIL

  • Design approvals

    EN 10204-3.1

  • Components

    PFM: FTC325, FTC625, FTC470Z, FTC471Z
    3-wire: FTC325

  • Application limits

    DK min 2

Documents / Manuals / Software

Accessories / Spare parts

Nr
Order code
Specification
  • 20
    • Nr 20 Order code 52002698

      Cover F13 Ex Alu, gasket

      O-ring EPDM. Usage: housing F13, aluminium, Ex d.

    • Nr 20 Order code 52002699

      Cover F17 Alu, gasket

      O-ring EPDM. Usage: housing F17, aluminium.

    • Nr 20 Order code 52006903

      Cover T13 Alu, gasket EPDM

      O-ring EPDM. Usage: housing T13, aluminium.

    • Nr 20 Order code 52025606

      Cover F16 grey, PBTP, gasket

      Gasket EPDM. Usage: housing F16 Polyester, FMI21, FMI51/FMI52, FMU30, FTI51/FTI52/ FTI55/FTI56, FTI77, FTL50/FTL51/FTL51C/ FTL51H, FTL70/FTL71, FTL80/FTL81/FTL85, FTW31/FTW32.

    • Nr 20 Order code 52027000

      Cover F15 316L, gasket

      Gasket 67.5x2.9x1.5, VMQ/PTFE. Usage: housing F15, stainless steel.

  • 25
    • Nr 25 Order code 52007103

      Cover T13 "Terminal" Alu, gasket EPDM

      O-ring EPDM. Usage: terminal compartment, housing T13, aluminium.

  • 21
    • Nr 21 Order code 52004137

      O-ring 71.0x3.55 EPDM, 5 pieces

      Usage: cover, housing F16, Polyester.

    • Nr 21 Order code 52004277

      Sealing set EPDM,cover F13/17/18/27,10pc

      Consists of: 10x O-ring 70.0x3.0 EPDM.

    • Nr 21 Order code 52008495

      Sealing set EPDM 73.0x3.0, 10 pieces

      Usage: cover.

    • Nr 21 Order code 52028179

      Gasket 67.5x2.9x1.5 VMQ/PTFE, 5 pieces

      Profile gasket cover. Usage: housing F15 stainless steel.

    • Order code 71084478

      Cable F15/F16/F17 separate, FTIxx

      Connection sensor > separate housing. Length: 6m. Housing adapter, cable gland. Usage: separate housing, FTI51/FTI52/ FTI55/FTI56, FTI77.

  • 30
    • Nr 30 Order code 71025814

      Electronics FEI54, relay DPDT, AC/DC

      19-253VAC, 19-55VDC. Usage: FTI51/FTI52/FTI55/FTI56, FTI77.

    • Nr 30 Order code 71025815

      Electronics FEI55, 8/16mA, 11-36VDC

      Usage: FTI51/FTI52/FTI55/FTI56, FTI77.

    • Nr 30 Order code 71025816

      Electronics FEI57S, 2-wire PFM

      Usage: FTI51/FTI52/FTI55/FTI56, FTI77.

    • Nr 30 Order code 71025819

      Electronics FEI52, PNP, 10-55VDC

      3-wire PNP. Usage: FTI51/FTI52/FTI55/FTI56, FTI77.

    • Nr 30 Order code 71025820

      Electronics FEI53, 3-12V, signal

      3-wire. Usage: FTI51/FTI52/FTI55/FTI56, FTI77.

    • Nr 30 Order code 71042887

      Electronics FEI51, 19-253VAC

      2-wire. Usage: FTI51/FTI52/FTI55/FTI56, FTI77.

    • Nr 30 Order code 71100895

      Electronics FEI58 Namur

      8/16mA, 11-36VDC. Usage: FTI51/FTI52/FTI55/FTI56, FTI77.

    • Order code 919806-1000

      Mounting set (2"/pipe 38_V4A

      Usage: FMI51/FMI52, FTG20, FTI51/FTI52,FTI55/FTI56, FTI77, FTM50/FTM51/FTM52.

    • Order code 71040497

      Weather protection cover F13/F17/F18/F27

      Usage: FMI51/FMI52, FTI51/FTI52/FTI55/FTI56, FTI77, FTL50/FTL50H/FTL51/FTL51C/FTL51H, FTL70/FTL71, FTL80/FTL81/FTL85, FTM20/FTM21, FTM50/FTM51/FTM52.

    • Order code 71127760

      Protection cover F16 housing

      Usage: FDR56, FMI21, FMI51/FMI52, FQR56, FTI51/FTI52/FTI55/FTI56, FTI77, FTL50/FTL50H/FTL51/FTL51C/FTL51H, FTL70/FTL71, FTL80/FTL81/FTL85, FTM20/FTM21, FTM50/FTM51/FTM52, FTR20, FTW31/FTW32/FTW33.

  • 57
    • Nr 57 Order code 71194296

      Sealing ring G1/2, 21x26, FA, 5 pcs.

      Process gasket DIN7603-A. Usage: process connection, FMI51/FTI51, FTI55, FTL31/FTL33, FTW23/FTW33.

    • Nr 57 Order code 71185027

      Sealing ring G3/4, 27x32, FA, 5 pcs.

      Process gasket DIN7603-A. Usage: process connection, FMI51/FMI52, FTI51/FTI52, FTI55, FTL31/FTL33, FTW23/FTW33, FTL50/FTL50H/FTL51, FTL80/FTL81, FMP50/FMP51/FMP56, FMR62.

    • Nr 57 Order code 52014048

      Sealing ring G1, 33x39 FA, 5 pcs.

      Process gasket DIN7603-A. Usage: process connection, FMI51/FMI52, FTI51/FTI52, FTI55, FTL31/FTL33, FTW23/FTW33, FTL50/FTL50H/FTL51/FTL51H, FTL80/FTL81, Sliding sleeve G1 316L (52003663), 316L, 3.1 (52011880), AlloyC22, 3.1 (71118691), FTL51, FTL71, FTL81, AlloyC22 (52003664), FTL51, FTL71.

    • Nr 57 Order code 52014047

      Sealing ring G1-1/2, 48x55 FA, 5 pcs.

      Process gasket DIN7603-A. Usage: process connection, FMI21, FMI51/FMI52, FTI51/FTI52, FTI55, FTW31/FTW32, FMP51/FMP57, FMR60/FMR62/FMR67, Sliding sleeve G1-1/2 316L (52003665), 316L,3.1 (52011882), FTL51, FTL71,FTL81, AlloyC4 (52003666), FTL51, FTL71.
