Point level detection
Designed for light bulk solids

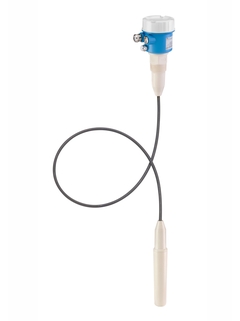

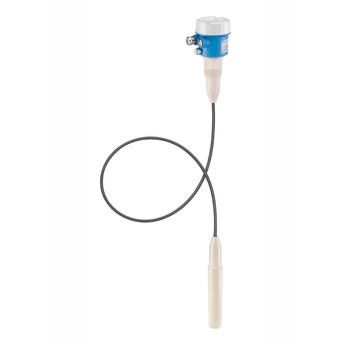

Minicap FTC262 is a simple and cost-effective rope probe for point level detection in bulk solids, particularly suited to applications involving aggressive media and heavy build-up. It is designed for point level detection of light bulk solids, e.g. grain products, flour, milk powder, animal feed, cement, chalk or gypsum.
Simple mounting and commissioning without calibration
Mechanical safety, cost-efficiency and long operating life due to no wearing parts
High operational safety and reliability due to active build-up compensation
Optimized storage by simply shortening the...
Field of application
For point level detection of light bulk solids, with a grain size up to max. 30mm and a dielectric constant εr ≥ 1.6.

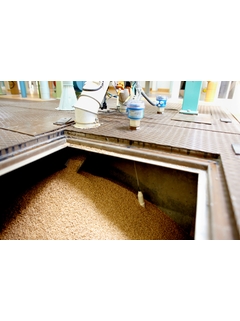

Typical applications: Grain products, flour, milk powder, animal feed, cement, chalk or gypsum.
Process connection: Threads
Documents / Manuals / Software
Accessories / Spare parts
Nr 20 Order code 543201-0000
Cover F14 PBT, gasket
O-ring EPDM. Usage: housing Polyester.
Nr 20 Order code 943201-1001
Cover F14 PE, transparent PA
Sight glass: Polycarbonat PA.
Nr 20 Order code 71092705
Cover F30/31/34 Alu, gasket
Material: aluminium. O-ring: EPDM. Not for Ex d/XP. Usage: FMB50/FMB51/FMB52/FMB53, FTC260/FTC262, PMC51, PMD55, PMP51/PMP55.
Nr 20 Order code 71092707
Cover F30/31/34 Alu, sight glass, gasket
Material: aluminium. Sight glass: mineral glass. O-ring: EPDM. Not for Ex d/XP. Usage: FMB50/FMB51/FMB52/FMB53, FTC260/FTC262, PMC51, PMD55, PMP51/PMP55.
Nr 20 Order code 52020429
Sealing EPDM, F30/31/34, T14/15, 5 pcs.
Consists of: 5x O-ring 75.87x2.62, EPDM, PTFE, FDA. Usage: housing F30/F31/F34, T14/T15.
Nr 30 Order code 52005634
Electronics FTC262 Ex AC/DC
Nr 30 Order code 52005636
Electronics FTC262 Ex 10,8-45VDC, PNP
Order code 52005918
Rope shortening kit FTC262
