Specialized instrumentation is required to address certain process analysis and control tasks, whether it involves dealing with highly-demanding ambient or process conditions, meeting ambitious productivity targets or complying with far-reaching regulations. In fact, the variety of scenarios in which our Xpert products serve as the ideal solution are too numerous to list.
Benefits
Specialized products
Designed for challenging applications
Thanks to our in-depth industry and application know-how, we are familiar with industry guidelines and regulations that you must comply with. By continually expanding our application know-how, we develop specialized products that maximize performance and productivity. Our expertise also enables us to provide you consulting and support for instrument selection, commissioning and maintenance and other services such as verification and calibration, thus ensuring long-term trust and compliance.
Multiple technologies for ideal results
At Endress+Hauser, we don't believe in a "one size fits all" approach. We understand the application should define the measurement, not the other way around. That's why we offer multiple technologies for similar measuring tasks. Never hesitate to reach out to our application experts to find out which product options exactly match your needs, especially if you have highly-demanding applications.
Measured variablesVolumetric flow a. c., volume a. c., gas velocity, Speed of sound, optional volume correction via integrated, electronic volume corrector (EVC)
Measuring MediumNatural gas (with up to 30% hydrogen), air, natural gases containing increased levels of CO2, N2, H2S, O2, H2
Nominal pipe size3 ″ ... 56 ″ (DN 80 ... DN 1400), other nominal pipe sizes on request
ConformitiesTÜV type test Suitability tested acc. DIN EN 15267-1 (2009), DIN-EN 15267-2 (2009), DIN EN 15859 (2010), DIN EN 14181 (2014) Certified for use as Dust monitor and Leak monitor for filter control downstream of dust collectors at installations requiring approval (13th BlmSchV, 17th BlmSchV, 27th BlmSchV, 30th BlmSchV, 44th BlmSchV and TA Luft)
Measured variablesMass flow rate, volumetric flow s. c. (standard condition), volumetric flow a. c. (actual condition), molecular weight, gas volume and mass, gas velocity, sound velocity
Measuring range0,03 m/s ... 120 m/s (0.1 ft/s ... 394 ft/s)
Number of applicationsSupport up to 4 gas runs or 2 liquid runs per module (Flow-X/M, Flow-X/C)
Inputs6x analog transmitter input, high accuracy Input types are 4 to 20 mA, 0 to 20 mA, 0 to 5 V, 1 to 5 V Accuracy mA inputs; 0.002% FS at 21 °C, 0.008% at full ambient range of 0-60 °C, long-term stability 0.01% per year Resolution: 24 bits. Analog inputs have the same earthing relative to all other electronic devices.
16x digital status inputs. Resolution 100ns (10MHz)
Outputs4x analog output for process outputs and flow / pressure control. Resolution 14 bits, 0.075% FS. Analog outputs share same ground floating in relation to all other electronics.
16x digital output, open collector. Rating 100mA @24V
Measured variablesCO2, SO2, NO, NO2, CO, NH3, H2O, CH4
Ambient temperature range 0 °C ... +50 °C Type approved up to 45 °C
ConformitiesMARPOL Annex VI and NTC 2008 – MEPC.177(58) Guidelines for exhaust gas cleaning systems – MEPC.340(77) Guidelines for SCR reduction systems – MEPC.198(62) DNV Rules for Type Approvals (2012) IACS E10 and Rules of major classification societies

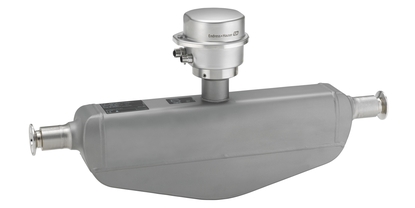

The easy‐to‐clean flowmeter with self‐drainable single‐tube system and an ultra‐compact transmitter. Dedicated for applications requiring optimal cleanability under hygienic conditions.
