Name: Levelflex M FMP43
Brand: Endress+Hauser
Availability: InStock

This product is no longer available.

Please check new generation in the section predecessor / successor or contact your local Endress+Hauser entity.

"Product Phased Out".
Level, radar, guided.
Hygienic.
Application: liquids.
Factory precalibrated.
Incl. Setup-/diagnostic software.
:: Reliable measuring:
in case of moved surface + foam,
for changing medias.

Successor

F

L

E

X

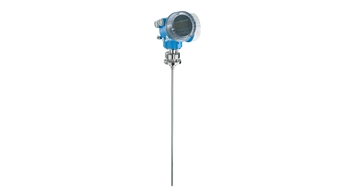

Levelflex FMP53

For the highest hygiene requirements in the food and life sciences industry
Read more

Loading price

Prices temporarily unavailable

Price after login

Price on request

activating price

price: provide information

Simple products
Easy to select, install and operate

Technical excellence

Simplicity

What is FLEX?

Standard products
Reliable, robust and low-maintenance

Technical excellence

Simplicity

What is FLEX?

High-end products
Highly functional and convenient

Technical excellence

Simplicity

What is FLEX?

Specialized products
Designed for demanding applications

Technical excellence

Simplicity

Variable

What is FLEX?

FLEX selections	Technical excellence	Simplicity
F L E X Fundamental selection Meet your basic measurement needs	Technical excellence	Simplicity
F L E X Lean selection Handle your core processes easily	Technical excellence	Simplicity
F L E X Extended selection Optimize your processes with innovative technologies	Technical excellence	Simplicity
F L E X Xpert selection Master your most challenging applications	Technical excellence	Simplicity Variable

Learn more about the FLEX selections

Characteristic / Application

Rod probe:
not affected by spray ball operation
Probes electro-polished or mechanically polished
Specialities

Pharma Certificate of Compliance
Supply / Communication

2-wire (HART / PROFIBUS PA / FOUNDATION Fieldbus)
Accuracy

Rod probe: +/-3 mm (0.13")
Ambient temperature

-40 °C ... 80 °C
(-40 °F ... 176 °F)
Process temperature

-20 °C ... 150 °C
(-4 °F ... 302 °F)
Process pressure / max. overpressure limit

Vaccum ... 16 bar
Main wetted parts

316L/1.4435
PEEK (USP Cl. VI)
EPDM / KALREZ (USP Cl. VI)
Process connection

Flange: ASME B16.5 1 1/2", 2"
Process connection hygienic

Tri-Clamp ISO2852
DIN11851
SMS
DIN11864
NEUMO Biocontrol
Sensor length

Rod: 4 m (178")
Max. measurement distance

Rod probe :
4 m (178") Min. DK > 1.6
Communication

4 ... 20 mA HART
PROFIBUS PA
FOUNDATION Fieldbus
Certificates / Approvals

ATEX
FM
CSA
SIL
EHEDG, 3A
Options

Calibration Kit
Successor

FMP53

Filter

8 documents

Technical Information (TI)

TI Weld-in adapter, process adapter and flanges

Technical Information (TI)

English version - 12/2024

New version available in English

Level, pressure and temperature measurement

Select other languages, versions and see details Hide selection and details

	EN
06/12/2024
25/03/2024
15/09/2023
28/10/2021
30/07/2021

Language:	English
Version:	06/12/2024
File size:	1.3 MB
File name:	TI00426FEN_2624.pdf

Share
- Copy Link
- Send Mail
Download

Manufacturer Information (MI)

PRM HART Package V1.05.00 Herstellerinformation beinhaltet PRM - Geräteliste, Freigabehinweise – HART

Manufacturer Information (MI)

German version - 04/2014

New version available in English

Herstellerinformation für Anwender betreffend Softwareänderungen (in
Anlehnung an NAMUR-Empfehlung 53)
Neue Software Version: 1.05.00

Show details Hide details

Language:	German
Version:	08/04/2014
File size:	403.8 KB
File name:	MI00099S_04_de_06.14.pdf

Share
- Copy Link
- Send Mail
Download

General Station Description (GSD)

General Station Description (GSD) - LEVELFLEX M - PROFIBUS PA

General Station Description (GSD)

Language neutral - 04/2014

New version available in English

Any, PROFIBUS System, Any

Show details Hide details

Language:	Language neutral
Version:	14/04/2014
File size:	889 KB
File name:	EH_PA_LE_Levelflex_0x152D_V01_00_PALIB.zip

Share
- Copy Link
- Send Mail
Download

Electronic Device Description (EDD)

Electronic Data Description (EDD) - FMP4x - HART

Electronic Device Description (EDD)

Language neutral - 10/2015

New version available in English

SIEMENS, PDM, 8.1
SIEMENS, PDM, 8.2
SIEMENS, PDM, 8.1 SP1
SIEMENS, PDM, 6.0 SP5
SIEMENS, PDM, 6.1

Show details Hide details

Language:	Language neutral
Version:	01/10/2015
File size:	76.8 KB
File name:	EH_HART_LE_Levelflex_M_FMP4x_0x0012_0x04_0x05_PDM.zip

Share
- Copy Link
- Send Mail
Download

Device Type Manager (DTM)

Device Type Manager (DTM) - Levelflex 4x - HART

Device Type Manager (DTM)

Language neutral - 07/2025

New version available in English

Endress+Hauser, DeviceCare, 1.08.08
Honeywell, Field Device Manager, R430.1
Endress+Hauser, FieldCare, 2.19.00
Endress+H
auser, Field Xpert SMT70, 1.08.08

Show details Hide details

Language:	Language neutral
Version:	17/07/2025
File size:	202.5 MB
File name:	EH_Levelflex_M_FMP_4x_V4_xx.zip

Share
- Copy Link
- Send Mail
Download

Device Type Manager (DTM)

Device Type Manager (DTM) - Levelflex 4x - FOUNDATION Fieldbus H1

Device Type Manager (DTM)

Language neutral - 07/2025

New version available in English

Endress+Hauser, DeviceCare, 1.08.08
Endress+Hauser, FieldCare, 2.19.00
Endress+Hauser, Field Xpert SMT70, 1.08.08

Show details Hide details

Language:	Language neutral
Version:	17/07/2025
File size:	81.4 MB
File name:	EH_Levelflex_M_FMP_4x_FF_V4_xx_DevRev4.zip

Share
- Copy Link
- Send Mail
Download

Device Type Manager (DTM)

Device Type Manager (DTM) - Levelflex 4x - PROFIBUS PA

Device Type Manager (DTM)

Language neutral - 07/2025

New version available in English

Endress+Hauser, DeviceCare, 1.08.08
Endress+Hauser, FieldCare, 2.19.00
Endress+Hauser, Field Xpert SMT70, 1.08.08

Show details Hide details

Language:	Language neutral
Version:	17/07/2025
File size:	203.6 MB
File name:	EH_Levelflex_M_FMP_4x_PA_V4_xx.zip

Share
- Copy Link
- Send Mail
Download

Faceplate

Faceplate - Deltapilot S, Micropilot M, Prosonic M, Levelflex M, Gammapilot M, Levelflex FMP5x, Deltapilot M 5x, Micropilot FMR5x - FOUNDATION Fieldbus H1

Faceplate

Language neutral - 05/2018

New version available in English

Yokogawa, Plant Resource Manager, R3.02
Yokogawa, Plant Resource Manager, R3.12

Show details Hide details

Language:	Language neutral
Version:	29/05/2018
File size:	3.4 MB
File name:	PRM_FF_Level_Package_1_05_00.zip

Share
- Copy Link
- Send Mail
Download

Levelflex M FMP43

Successor

Levelflex FMP53

Characteristic / Application

Specialities

Supply / Communication

Accuracy

Ambient temperature

Process temperature

Process pressure / max. overpressure limit

Main wetted parts

Process connection

Process connection hygienic

Sensor length

Max. measurement distance

Communication

Certificates / Approvals

Options

Successor

Back

TI Weld-in adapter, process adapter and flanges

PRM HART Package V1.05.00 Herstellerinformation beinhaltet PRM - Geräteliste, Freigabehinweise – HART

General Station Description (GSD) - LEVELFLEX M - PROFIBUS PA

Electronic Data Description (EDD) - FMP4x - HART

Device Type Manager (DTM) - Levelflex 4x - HART

Device Type Manager (DTM) - Levelflex 4x - FOUNDATION Fieldbus H1

Device Type Manager (DTM) - Levelflex 4x - PROFIBUS PA

Faceplate - Deltapilot S, Micropilot M, Prosonic M, Levelflex M, Gammapilot M, Levelflex FMP5x, Deltapilot M 5x, Micropilot FMR5x - FOUNDATION Fieldbus H1

Back

Plug 3-pole, M12, gasket

Set of screws housing F12/T12/F23

Sealing kit FMP4x

Cover F12/T12 Alu, window, gasket

Cover F12/T12 Alu, coated, gasket

Cover F23 316L, sight glass, gasket

Cover F23 316L, gasket

Cover terminal compartment F12/F23

Cover terminal compartment F12/F23,FHX40

Cover T3/T12 Alu, coated, gasket

Terminal module 4-pole, HART, 2-wire

Terminal module 4-pole, PA, FF

Terminal mod. Ex d, 4-pol., 2wr,HART,T12

Terminal mod. Ex d, 2-pol.,2wr,PA/FF,T12

Terminal mod. 4-pol.,EEx ia,HART,T12,OVP

Terminal mod. 2-p.,EEx ia,PA/FF,T12,OVP

Hood housing T12

Electronics FMP4xEx,2-wire,HART,v4.02

Electronics FMP4x,Ex,4-wireHART,v4.02

Electronics FMP4x, Ex, PA, v4.02

Electronics FMP4x, Ex, FF, v4.04

Power supply 10.5-32VDC (housing F12)

Power supply 90-250VAC (F12), Ex only

Power supply CSA, 10.5-32VDC (housg F12)

Power supply CSA, 90-250VAC (housg F12)

Display VU331, version 2

HF module Levelflex M, version 2

Sensor body FMP43, compact

Sensor body FMP43, compact,detachable

Sensor body FMP43,detachable,cable 3m

Sensor body FMP43,detachable,cable 6m

Flange NPS 1-1/2" Cl.150 RF, 316L

Flange NPS 2" Cl.150 RF, 316L

Aseptic coupling DIN11864-1 A DN25 tube

Dairy fitting DIN11851 DN40 PN40

Dairy fitting DIN11851 DN50 PN40

Adapter NEUMO BioControl DN25 PN16

Tri-Clamp ISO2852 DN25-38 1..1-1/2"

Tri-Clamp ISO2852 DN40-51 2"

Tri-Clamp ISO2852 DN70-76.1 3"

Adapter SMS 2" PN25, 316L

Adapter SMS 1-1/2" PN25, 316L

Flange NPS 1-1/2" Cl.150 RF, 316L,3.1

Flange NPS 2" Cl.150 RF, 316L, 3.1

Aseptic coupl.DIN11864-1 A DN25 tube,3.1

Dairy fitting DIN11851 DN40 PN40, 3.1

Dairy fitting DIN11851 DN50 PN40, 3.1

Adapter NEUMO BioControl DN25 PN16, 3.1

Tri-Clamp ISO2852 DN25-38 1..1-1/2", 3.1

Tri-Clamp ISO2852 DN40-51 2", 3.1

Tri-Clamp ISO2852 DN70-76.1 3", 3.1
