SS3000E

TDLAS

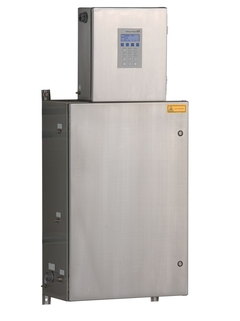

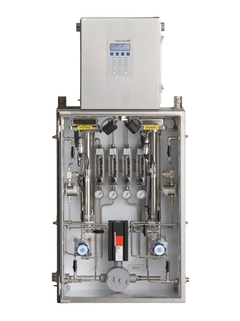

Dual channel gas analyzer for moisture (H2O) channels and carbon dioxide (CO2). The sensor measures gas using tunable diode laser absorption spectroscopy (TDLAS) to determine the concentration of the gas without coming into physical contact with the stream. Includes a heated enclosure for the sample conditioning system.

2

H2O (Moisture):
0 to 100 ppmv (minimum)
0 to 5000 ppmv (maximum)
CO2 (Carbon Dioxide):
0 to 5% volume (minimum)
0 to 50% volume (maximum)

Concentration
Moisture Dew Point
Cell Pressure
Cell Temperature

-20 to 50°C (-4 to 122°F)
Optional: -10 to 60°C (14 to 140°F)

Inlet Pressure: 140 to 350 kPa (20 to 50 psig)
Sample Cell: 700 to 1400 mbara or 700 to 1700 mbara (optional)

316L stainless steel
FKM O-Rings
Glass

100 to 240 VAC, 50 to 60 HZ
or
18 to 24 VDC - optional
1 Amp maximum at 120 VAC, 1.6 Amps at 24 VDC (unheated)
2 Amps maximum at 120 VAC (heated)

Analog Output: Two 4-20mA Isolated, 1200 ohms at 24 VDC max load
Serial: RS232C - standard, RS485 and Ethernet - optional
Protocol: Modbus Gould RTU or Daniel RTU or ASCII
Digital Outputs: 2, General Fault and Concentration/Assignable Alarm

Electronics: 304 or 316L stainless steel
Sample System Enclosure: 304 or 316L stainless steel

CSA Class I, Division 2
CSA Class I, Zone 2

Type 4X
