Specs at a glance
-
Measurement range
pH 0 to 14
-
Process temperature
0 to 135 °C (32 to 275 °F)
-
Process pressure
1 to 17 bar (15 to 246 psi)
Field of application

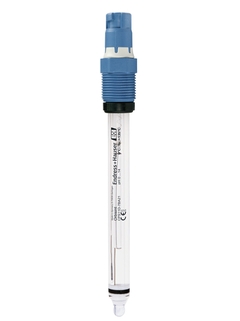

Orbisint CPS11D is not the latest Memosens generation and will be phased out soon. To get information on the new Memosens CPS11E sensor with extended functionality, click here. Orbisint CPS11D is the digital all-rounder for process and environmental technology. It measures reliably even in highly alkaline media or hazardous areas. Designed for low maintenance and a long operating life, the electrode offers you best value for money.
Long-term monitoring and limit monitoring of processes with stable process conditions:
- Chemical industry
- Paper industry
- Power plants (e.g. flue gas washers, boiler feed water)
- Incineration plantsWater treatment:
- Drinking water
- Cooling water
- Well water

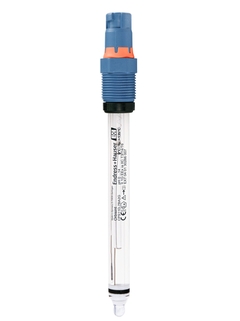

With ATEX, FM, CSA approval for use in hazardous areas.
Benefits
Robust electrode with long poison diffusion path, requires low maintenance due to large, dirt-repellent PTFE ring diaphragm
Suitable for harsh applications: Process glass for highly alkaline media and pressure-stable up to 16 bar (232 psi)
Optional salt ring for low conductivity applications such as boiler feed water and water for injection
Maximum process safety through non-contact, inductive signal transmission
Enables predictive maintenance due to storage of sensor and process-specific data
Reduced operating costs thanks to minimized process downtime and extended sensor lifetime
