Specs at a glance
-
Process temperature
-80 °C ... +200 °C
(-112 °F ... +392 °F) -
Process pressure / max. overpressure limit
Vacuum ... 100 bar
(Vacuum ... 1450 psi)
Field of application

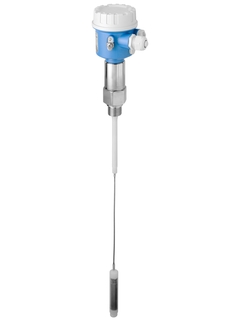

Liquicap FTI52 is a rope probe for point level detection of liquids that are highly viscous and tend to form build-up. Also used for detection of interface and foam of conductive liquids. Due to its active build-up compensation FTI52 offers maximum reliability and is suited for a wide range of applications thanks to international certificates. The parts in contact with the process are made of corrosion-resistant and FDA-listed materials - this guarantees a high safety standard.
For liquids that tend to form build-up. Interface detection of different liquids. Two-point control (pump control) with just one process connection. Foam detection of conductive liquids.
Process connections: Flanges, threads, special hygienic process connections
Temperature: -80 to +200°C (-112 to +392°F)
Pressure: Vacuum to +100bar (vacuum to +1,450psi)
Sensor length: 12m (39ft)
International explosion protection certificates, overfill prevention WHG, SIL, hygienic certificates, marine approval
Benefits
Cost savings thanks to easy and fast commissioning as calibration takes place at the press of a button
Reliable and safe measurement due to active build-up compensation
Reliable and universal application thanks to wide range of certificates and approvals
Short reaction time
Material in contact with the process made of corrosion-resistant and FDA-listed materials
Two-stage overvoltage protection
No need for recalibration after replacing electronics
Videos
Lean selection
-
Standard products
- Reliable, robust and low-maintenance
Technical excellence
Simplicity
-
Standard products
- Reliable, robust and low-maintenance
Technical excellence
Simplicity
-
Specialized products
- Designed for demanding applications
Technical excellence
Simplicity
Variable
| FLEX selections | Technical excellence | Simplicity |
|---|---|---|
Fundamental selection Meet your basic measurement needs |
Technical excellence
|
Simplicity
|
Lean selection Handle your core processes easily |
Technical excellence
|
Simplicity
|
Extended selection Optimize your processes with innovative technologies |
Technical excellence
|
Simplicity
|
Xpert selection Master your most challenging applications |
Technical excellence
|
Simplicity
Variable |
Loading alternative products
Predecessor
Success stories
Most downloaded
-
-
Safety Integrity Level (SIL)
Product family: Liquicap M, Solicap M, Solicap S
English version - 10/2024
Product root: FTI51-, FTI52-, FTI55-, FTI56-, FTI77- Region: International Approval agency: TÜV Safety function: Level monitoring Protection: MAX, MIN Safety-related output signal: 8/16 mA Systematic safety integrity: SIL 3 Hardware safety integrity: SIL 2
EN 30/10/2024Language:
English
Version:
30/10/2024
File size:
69.9 KB
File name:
Certificate TUEV Nord.PDF
-
101 documents
-
-
Technical Information (TI)
TI Weld-in adapter, process adapter and flanges
Level, pressure and temperature measurement
EN 06/12/202425/03/202415/09/202328/10/202130/07/2021Language:
English
Version:
06/12/2024
File size:
1.3 MB
File name:
TI00426FEN_2624.pdf
-
-
-
Technical Information (TI)
TI Liquicap M FTI52
Capacitance
EN 14/02/202505/09/202425/09/2023Language:
English
Version:
14/02/2025
File size:
1.5 MB
File name:
TI01542FEN_0325-00.pdf
-
-
-
Technical Information (TI)
Technical Information Liquicap M FTI51, FTI52
Capacitance
Point level switch for liquidsEN 22/06/201712/01/201105/03/201006/11/200821/09/2007Language:
English
Version:
22/06/2017
File size:
1.8 MB
File name:
TI00417FEN_1417.pdf
-
-
-
Operating Instruction (BA)
BA Liquicap M FTI52
Capacitance
EN 05/09/202425/09/2023Language:
English
Version:
05/09/2024
File size:
2.5 MB
File name:
BA02032FEN_0224-00.pdf
-
-
-
Operating Instruction (BA)
Operating Instructions Liquicap M FTI51, FTI52
Capacitance point level switch
EN 22/06/201712/01/201105/03/201005/10/200824/08/2006Language:
English
Version:
22/06/2017
File size:
1.7 MB
File name:
BA00299FEN_1417.pdf
-
-
-
Short Instruction (KA)
Liquicap M FTI52
Capacitance point level switch
EN 01/09/2021Language:
English
Version:
01/09/2021
File size:
860.7 KB
File name:
KA01477FEN_0120.pdf
-
-
-
Installation Instructions (EA)
Cover for housing T13 terminal compartment Installation instruction
Liquiphant M/S, Soliphant M, Liquicap M, Solicap M/S
EN 24/02/202215/08/201409/08/2012Language:
English
Version:
24/02/2022
File size:
119 KB
File name:
EA01050FA2_0322.pdf
-
-
-
Installation Instructions (EA)
Cover for housing T13 electronic compartment Installation instruction
Liquiphant M/S, Soliphant M, Liquicap M, Solicap M/S
EN 11/08/201409/08/2012Language:
English
Version:
11/08/2014
File size:
164.3 KB
File name:
EA01048FA2_0214.pdf
-
-
-
Installation Instructions (EA)
Cover for housing F13 Installation instruction
Liquiphant M/S, Soliphant M, Liquicap M, Solicap M/S
EN 11/08/201409/08/2012Language:
English
Version:
11/08/2014
File size:
134.4 KB
File name:
EA01046FA2_0214.pdf
-
-
-
Installation Instructions (EA)
Cover for housing T13 electronic compartment with sight glas Installation instruction
Liquicap M, Solicap M, Liquphant M/S/FailSafe, Soliphant M
EN 09/08/2012Language:
English
Version:
09/08/2012
File size:
158.7 KB
File name:
EA01049FA2_01.12.pdf
-
-
-
Installation Instructions (EA)
Cover for housing F27 Installation instruction
Liquihant M/S, Soliphant M, Liquicap M, Solicap M/S
EN 11/08/201416/01/201409/08/2012Language:
English
Version:
11/08/2014
File size:
136.4 KB
File name:
EA01047FA2_0314.pdf
-
-
-
Installation Instructions (EA)
Electronic insert FEI5x Installation Instruction
Liquicap M, Solicap M/S
EN 05/04/2013Language:
English
Version:
05/04/2013
File size:
643.1 KB
File name:
EA01077FA2_0113.pdf
-
-
-
Installation Instructions (EA)
Cable for separate version Installation instruction
Liquicap M/ Solicap M (separate version)
EN 12/04/2012Language:
English
Version:
12/04/2012
File size:
585 KB
File name:
EA0012FA2_1108.pdf
-
-
-
Ex Safety Instruction (XA)
Liquicap M FMI51, FMI52, FTI51, FTI52
II 1/2 G Ex ia IIC Ga/Gb
II 1/2 G Ex ia IIB Ga/Gb
II 1/2 D Ex ia IIIC Da/DbLanguage:
English
Version:
11/07/2022
File size:
457.7 KB
File name:
XA02639FEN_0122-00.pdf
-
-
-
Ex Safety Instruction (XA)
Liquicap M FMI51, FMI52, FTI51, FTI52
II 1/2 G Ex ia IIC Ga / Ex db IIC Gb
II 1/2 G Ex ia IIC Ga / Ex db eb IIC Gb
II 1/2 D Ex ia IIIC Da / Ex tb IIIC DbLanguage:
English
Version:
20/06/2022
File size:
443.2 KB
File name:
XA02640FEN_0122-00.pdf
-
-
-
Ex Safety Instruction (XA)
Liquicap M FMI51, FMI52, FTI51, FTI52
II 3 G Ex ec IIC Gc
II 3 G Ex ec nC IIC Gc
II 3 D Ex tc IIIC DcLanguage:
English
Version:
21/03/2022
File size:
429.5 KB
File name:
XA02641FEN_0122-00.pdf
-
-
-
Ex Safety Instruction (XA)
Liquicap M FMI51, FMI52, FTI51, FTI52
Approval No.: IECEx BVS 08.0027X
Ga/Gb Ex ia IIC T6...T3
Zone 20/21 Ex iaD 20/Ex tD A21 IP65 T90°CLanguage:
English
Version:
01/07/2008
File size:
434.7 KB
File name:
XA423FEN_0708.pdf
-
-
-
Ex Safety Instruction (XA)
XA Liquicap M FMI51, FMI52, FTI51, FTI52
Ex ia IIC T6...T3 Ga/Gb
Ex ia IIC T6...T3 GbEN 02/05/2023Language:
English
Version:
02/05/2023
File size:
451.2 KB
File name:
XA03122FEN_0123-00.pdf
-
-
-
Ex Safety Instruction (XA)
Liquicap M FMI51, FMI52, FTI51, FTI52
CSA Control Drawing
960007471 E
IS, NILanguage:
English
Version:
17/12/2021
File size:
930.2 KB
File name:
XA02809FEN_0121.pdf
-
-
-
Ex Safety Instruction (XA)
Liquicap M FMI51, FMI52, FTI51, FTI52
II 3 G Ex ec IIC T6 Gc
II 3 G Ex ec nC IIC T5 Gc
II 3 D Ex tc IIIC T100°C DcEN 10/01/202209/06/201712/10/201101/03/200701/07/2005Language:
English
Version:
10/01/2022
File size:
435.3 KB
File name:
XA00346FEN_1521-00.pdf
-
Search spare parts by number in drawing
60 spare parts & accessories
60 spare parts & accessories
60 spare parts & accessories
-
Cover F13 Ex Alu, gasket
-
Cover
Drawing numberOrder code2052002698 -
-
Cover F17 Alu, gasket
-
Cover
Drawing numberOrder code2052002699 -
-
Cover T13 Alu, gasket EPDM
-
Cover
Drawing numberOrder code2052006903 -
-
Cover F16 grey, PBTP, gasket
-
Cover
Drawing numberOrder code2052025606 -
-
Cover F15 316L, gasket
-
Cover
Drawing numberOrder code2052027000 -
-
Cover T13 "Terminal" Alu, gasket EPDM
-
Cover
Drawing numberOrder code2552007103 -
-
O-ring 71.0x3.55 EPDM, 5 pieces
-
Sealing
Drawing numberOrder code2152004137 -
-
Sealing set EPDM,cover F13/17/18/27,10pc
-
Sealing
Drawing numberOrder code2152004277 -
-
Sealing set EPDM 73.0x3.0, 10 pieces
-
Sealing
Drawing numberOrder code2152008495 -
-
Gasket 67.5x2.9x1.5 VMQ/PTFE, 5 pieces
-
Sealing
Drawing numberOrder code2152028179 -
-
Cable F15/F16/F17 separate, FTIxx
-
further parts
Order code71084478 -
-
Electronics FEI54, relay DPDT, AC/DC
-
Electronic
Drawing numberOrder code3071025814 -
-
Electronics FEI55, 8/16mA, 11-36VDC
-
Electronic
Drawing numberOrder code3071025815 -
-
Electronics FEI57S, 2-wire PFM
-
Electronic
Drawing numberOrder code3071025816 -
-
Electronics FEI52, PNP, 10-55VDC
-
Electronic
Drawing numberOrder code3071025819 -
-
Electronics FEI53, 3-12V, signal
-
Electronic
Drawing numberOrder code3071025820 -
-
Electronics FEI51, 19-253VAC
-
Electronic
Drawing numberOrder code3071042887 -
-
Electronics FEI58 Namur
-
Electronic
Drawing numberOrder code3071100895 -
-
Terminal module 2-pole EEx d, RFI filter
-
Terminal module
Drawing numberOrder code3571020804 -
-
Sealing ring G3/4, 27x32, FA, 5 pcs.
-
further parts
Drawing numberOrder code5771185027 -
-
Sealing ring G1, 33x39 FA, 5 pcs.
-
further parts
Drawing numberOrder code5752014048 -
-
Sealing ring G1-1/2, 48x55 FA, 5 pcs.
-
further parts
Drawing numberOrder code5752014047 -
-
O-ring 28.17x3.53 VMQ, FDA, 5 pcs.
-
further parts
Order code52014472 -
-
O-ring 28.17x3.53 VMQ, FDA, USP, 3 pcs.
-
further parts
Order code71086102 -
-
O-ring 28.17x3.53 EPDM, FDA, USP, 3 pcs.
-
further parts
Order code71140668 -
-
Rope shortening kit FMI52/FTI52
Order code942901-0001 -
Weather protection cover F13/F17/F18/F27
Order code71040497 -
Protection cover F16 housing
Order code71127760 -
Weld-in adapter UNI D65, 316L
Order code214880-0002 -
Weld-in adapter UNI D65, 316L, 3.1
Order code52010174 -
Weld-in adapter UNI D85, 316L
Order code52006262 -
Weld-in adapter UNI D85, 316L, 3.1
Order code52010173 -
Profile gasket silicone, 5 pieces
Order code52023572 -
Weld-in adapter G1, d=60, 316L
Order code52001051 -
Weld-in adapter G1, d=60, 316L, 3.1
Order code52011896 -
Weld-in adapter G1, d=53, 316L, 3.1
Order code71093129 -
Weld-in adapter G1, d=53, 316L
Order code71258358 -
Mounting set (2"/pipe 38_V4A
Order code919806-1000
